Titan High Pressure Airless Sprayer Elite 3000 Outlet Valve Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Titan High Pressure Airless Sprayer Elite 3000 Outlet Valve Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide to replace the outlet valve in your Titan Elite 3000 High Pressure Airless Sprayer.

  1. DZVXUdZWlK1PChQX
    DZVXUdZWlK1PChQX
    ZZSoXVbu3UbpdlDD
    QcuIZiG21YXA2P4R

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

    • Lay the sprayer down horizontally before continuing.

  2. qXrj1P4r1eqsVuQV
    qXrj1P4r1eqsVuQV
    vUFrHoXpsmKMHF4E
    irOZaJXHxvXsBgxd

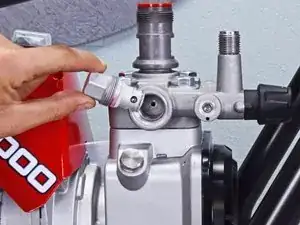

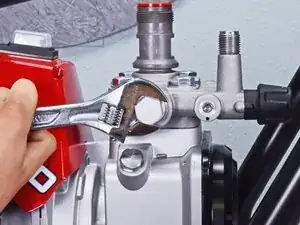

    • Use a 22 mm wrench to loosen and remove the outlet valve.

  3. CDCLGUMYVaTV5YBi
    CDCLGUMYVaTV5YBi
    k6vkh1d2C5dlyUUu
    sKdETwKL2FnNIlAW

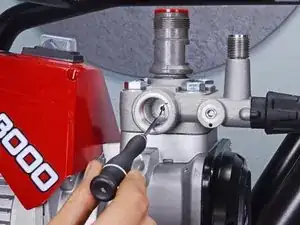

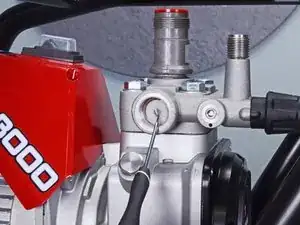

    • Use a pick tool to remove the plastic washer from the outlet valve's recess.

Abschluss

To reassemble your device, follow these instructions in reverse order.
