Titan High Pressure Airless Sprayer Elite 3000 Regulator Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to replace the regulator assembly in your Titan Elite 3000 High Pressure Airless Sprayer.

  1. DZVXUdZWlK1PChQX
    DZVXUdZWlK1PChQX
    ZZSoXVbu3UbpdlDD
    QcuIZiG21YXA2P4R

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

    • Lay the sprayer down horizontally before continuing.

  2. ITcPQmwOYOtnYOQ5

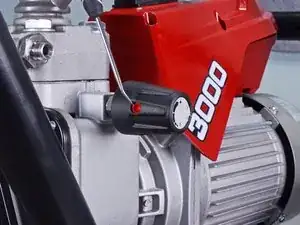

    • Use a pick tool to scrape the red paint from the side of the pressure control knob.

  3. bGShVBrQmOQWKLGA
    bGShVBrQmOQWKLGA
    3Fopm56TJJJATaUh

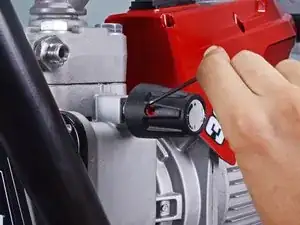

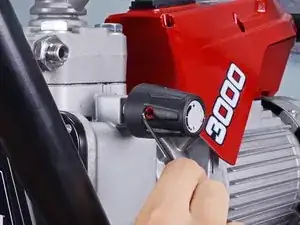

    • Use a 2 mm Allen wrench to loosen the control knob.

  4. QVpEh6TCASfTknoP
    QVpEh6TCASfTknoP
    grZ3bMYavXEy6wpj

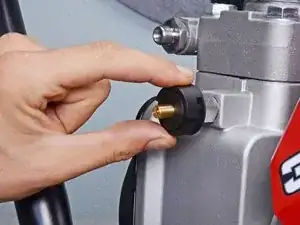

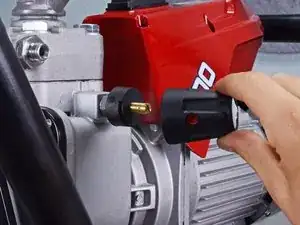

    • Remove the pressure control knob.

  5. OMfHFyGcCXYCb2M2
    OMfHFyGcCXYCb2M2
    ymqWmlsm5cMOkqmS
    PBDMOLMNHVT3MDqM

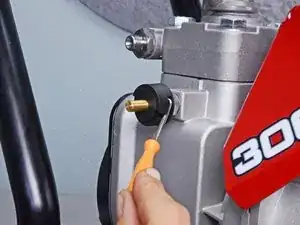

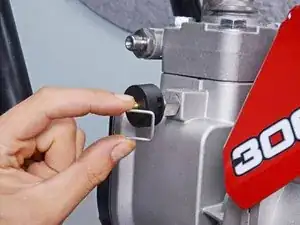

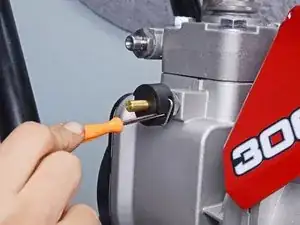

    • Use a flathead screwdriver to pry and remove the clip securing the stop sleeve.

    • The stop sleeve will pop out slightly due to the compressed spring behind it.

    • During reassembly, compress the stop sleeve against the spring to fully insert the clip.

  6. rURtwikhXQKQ364x
    rURtwikhXQKQ364x
    RnwaPPxf5DsriSSf

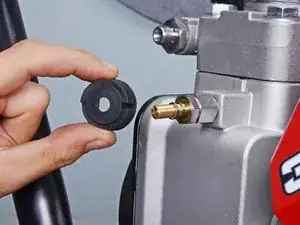

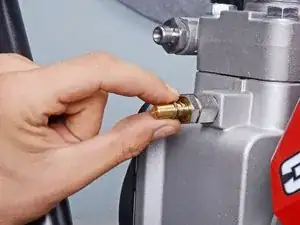

    • Remove the stop sleeve.

  7. YHeZUilv2y4cDWvy
    YHeZUilv2y4cDWvy
    EA22cQ2SSYjIRXNj

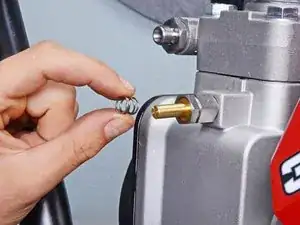

    • Remove the pressure spring.

  8. BSqR5KyrJ5ldSOXC
    BSqR5KyrJ5ldSOXC
    FIfON5AFU6PPNQRM
    SJlY3NEku2BsEUfd

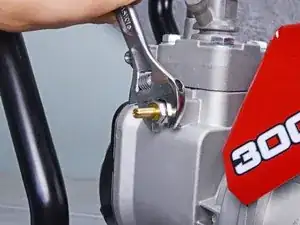

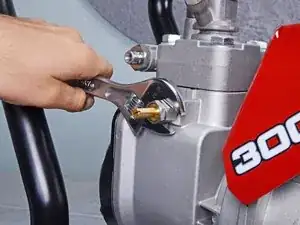

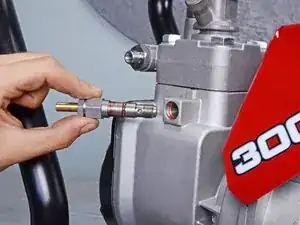

    • Use an adjustable wrench to remove the regulator assembly.

    • Your assembly may have red threadlocker around its threads.

    • During reassembly, consider applying new threadlocker to your replacement assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
