Titan High Pressure Airless Sprayer Elite 3000 Relief Valve Assembly Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Titan High Pressure Airless Sprayer Elite 3000 Relief Valve Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to replace the relief valve assembly in your Titan Elite 3000 High Pressure Airless Sprayer.

  1. DZVXUdZWlK1PChQX
    DZVXUdZWlK1PChQX
    ZZSoXVbu3UbpdlDD
    QcuIZiG21YXA2P4R

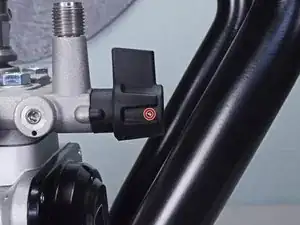

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

    • Lay the sprayer down horizontally before continuing.

  2. lV4Bgki6Gie2Z2cH
    lV4Bgki6Gie2Z2cH
    lcfoBTsNLAJ1MELB
    NPNO22Djpfy6hHfl

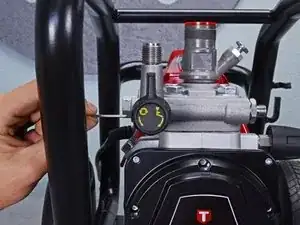

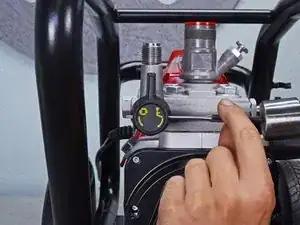

    • Use a pin punch and a hammer to drive the groove pin from right to left out of the valve handle.

  3. NwApCPiZ6x66XXiL
    NwApCPiZ6x66XXiL
    CQUEk5NrxZ3AitLV

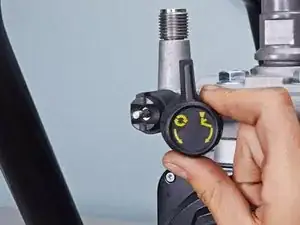

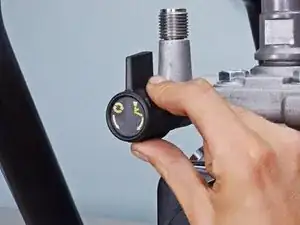

    • Pull the valve handle straight off the cam base to remove it.

  4. jQRBcyaPf6cBxoSQ
    jQRBcyaPf6cBxoSQ
    ce64tkTNkUlRtqYg

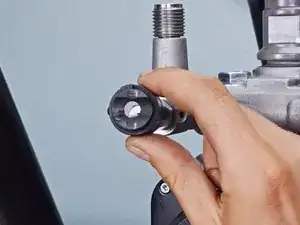

    • Remove the cam base.

  5. W3sMnqQSIILIHsHL
    W3sMnqQSIILIHsHL
    5MIqDQqDCeUwVHmE
    TN6NcZaQtw2jQAoA

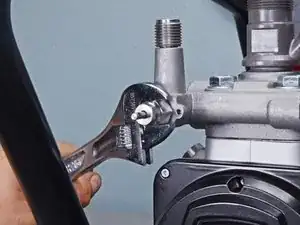

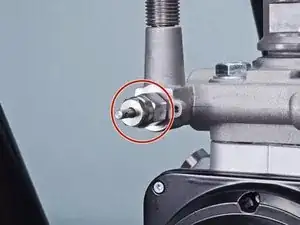

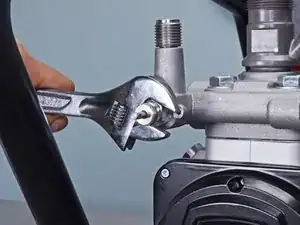

    • Use a 17 mm wrench to loosen the relief valve assembly.

  6. cKAQmiLFjN1jKi1G
    cKAQmiLFjN1jKi1G
    NdUUKOA2YKAANQNT

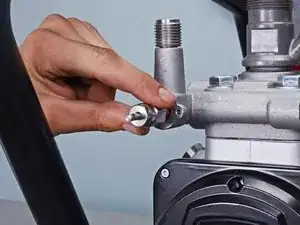

    • Remove the relief valve assembly.

    • Your assembly may have red threadlocker around its threads.

    • During reassembly, consider applying new threadlocker to your replacement assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
