Tivax MiTraveler 10Q-8 Speaker Replacement

With the device face down, slide the charging port cover off on the left side of device.

A phillips 2.88mm screw will be seen at the charging port.

Use a PH000 Philips head screwdriver to remove screw.

Use the plastic opening tool between the back plate and front plate to pry the back plate off; start at the headphone jack.

Move around the device with the plastic opening tool pushing down to release the back plate from clips.

Once you’ve moved around the whole device with the plastic opening tool, the back plate will completely release from the rest of the device.

The battery rests flat on the inside surface of the tablet. It is a rectangular shape and has blue and yellow tape.

There are two wires, one red and one black, that need to be desoldered from the motherboard that run to the battery.

Review how to solder here.

Work the soldering gun on the red wire where it is connected to the motherboard. it should release from the motherboard.

Work the soldering gun on the black wire where it is connected to the motherboard. It will release from the motherboard.

Once both wires have been desoldered, the battery can be removed from the device.

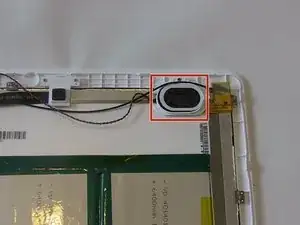

With the face of the device down, the speaker will be in the upper right corner. The black oval shaped object.

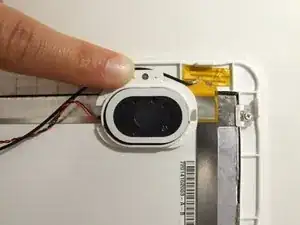

A phillips 3.88 mm screw will be holding the speaker in place.

Use a PH000 screwdriver to remove the screw.

The speaker will be connected to two wires; one black and one red. Both run to the motherboard.

The wires will need to be soldered off the motherboard.

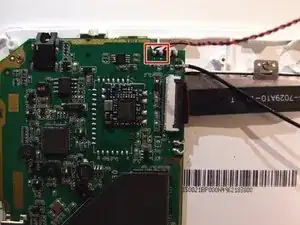

Locate where both wires are soldered to the motherboard.

Review How to Solder Here

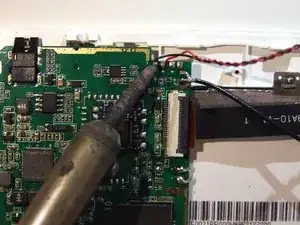

Work the iron where the red wire is soldered

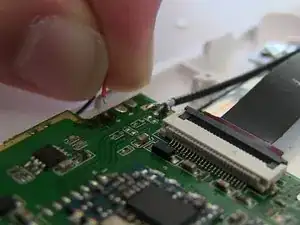

The wire will release from the motherboard.

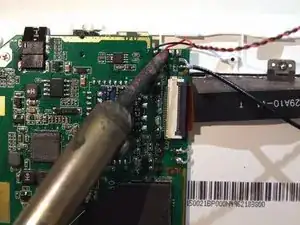

Work the iron where the black wire is soldered.

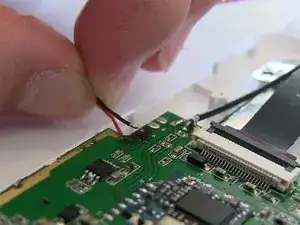

The black wire will release from the motherboard.

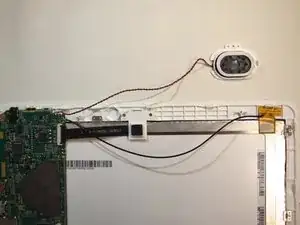

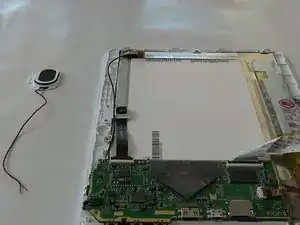

After both wires have been soldered off, the speaker will release from the device.
