Tivax MiTraveler 10Q-8 USB Charging Port Replacement

Geschrieben von: Conor Langenbahn
  • Kommentare: 1
Tivax MiTraveler 10Q-8 USB Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will show the proper way to remove the USB charging port from the device, so that a new one can replace it.

  1. exJIsFjyHnLXmEyx
    exJIsFjyHnLXmEyx
    UjjhXBCKh4LcqNqB

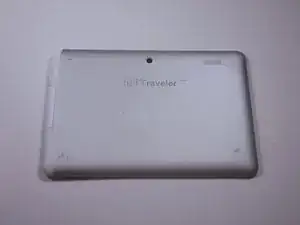

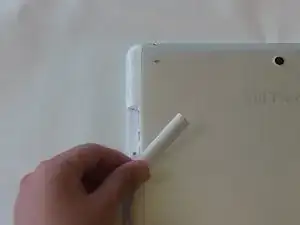

    • With the device face down, slide the charging port cover off on the left side of device.

  2. pECUAnSiY6yvrbUp

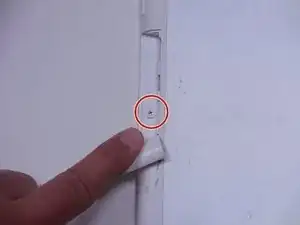

    • A phillips 2.88mm screw will be seen at the charging port.

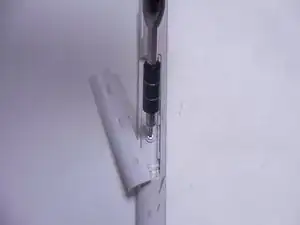

  3. DjM12SERh1Z5DtJw

    • Use a PH000 Philips head screwdriver to remove screw.

    • Remember lefty loosey, righty tighty

  4. EuHFjCvmknYK1hnD

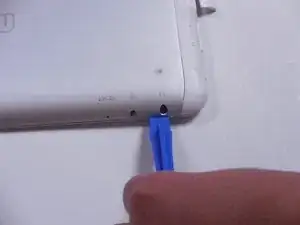

    • Use the plastic opening tool between the back plate and front plate to pry the back plate off; start at the headphone jack.

    • Make sure the lip of the plastic opening tool is face up.

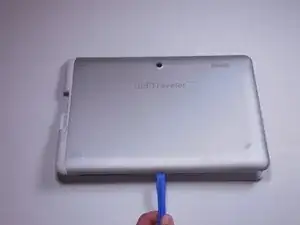

  5. nUOfKLtFKjEJmPiF
    nUOfKLtFKjEJmPiF
    TWh16HhX1IJkdwkt

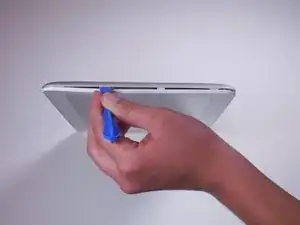

    • Move around the device with the plastic opening tool pushing down to release the back plate from clips.

    • You will hear popping sounds when you work around the device.

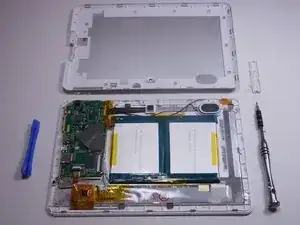

  6. dNVi4NAqRYk6u1eQ
    dNVi4NAqRYk6u1eQ
    rQwXMbfPySTuCabf

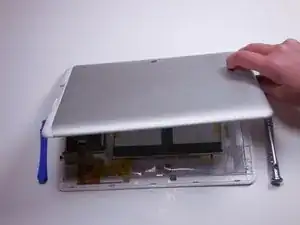

    • Once you’ve moved around the whole device with the plastic opening tool, the back plate will completely release from the rest of the device.

  7. 2MGUGUfJiPdxZSBD

    • The battery rests flat on the inside surface of the tablet. It is a rectangular shape and has blue and yellow tape.

  8. PtMDgwNXBMGSsmiT

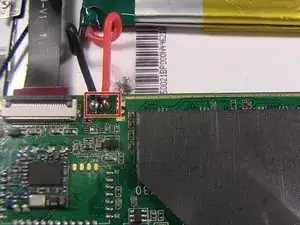

    • There are two wires, one red and one black, that need to be desoldered from the motherboard that run to the battery.

    • Review how to solder here.

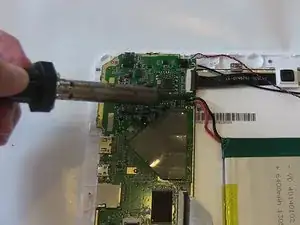

  9. apXIOilOrEkYSf5m
    apXIOilOrEkYSf5m
    I5mCkR1ekDAHRnVC

    • Work the soldering gun on the red wire where it is connected to the motherboard. it should release from the motherboard.

    • Work the soldering gun on the black wire where it is connected to the motherboard. It will release from the motherboard.

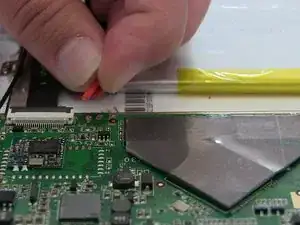

  10. Rb6FnNRI1WTiUR6P
    Rb6FnNRI1WTiUR6P
    xXiv6FCgl6EVxraU
    jSNSE5xCMQvFZcqu

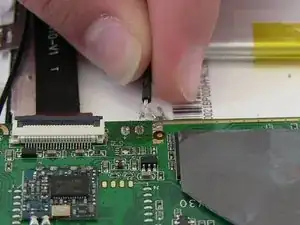

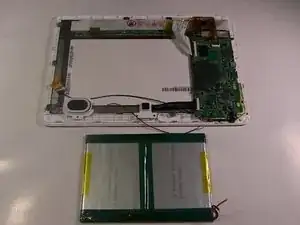

    • Once both wires have been desoldered, the battery can be removed from the device.

  11. r6syEtd5APKXxmHD
    r6syEtd5APKXxmHD
    glcZsUiJEDdTQWi1

    • With the device facing down, the USB charging port can be located on the left side of the device directly on the motherboard. The mini HDMI port will be above the charging port and the micro SD port will be below, with the charging port in the middle of the two.

    • Make sure all power is extinguished by following the steps to remove the battery.

    • The charging port will be soldered down at all four corners; each prong will need to be soldered off.

    • Review How to Solder Here

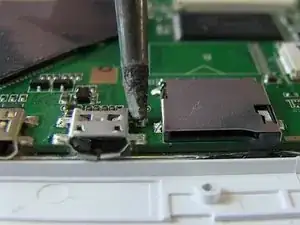

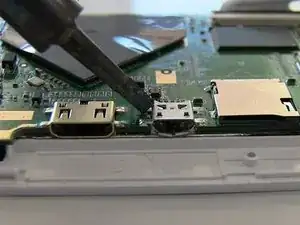

  12. ILKRRAMvoIC5NbD2
    ILKRRAMvoIC5NbD2
    jYDbLJV6utCfvg6q
    V2IGLQsqLVmLrZmx

    • Work the iron on one prong at a time that is soldered to the motherboard. The USB port will release from the motherboard.

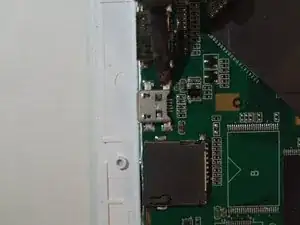

  13. rHZDH1YgA5DOisdg
    rHZDH1YgA5DOisdg
    cLwQUHkIZSNHykuH
    RRpLnZAecGyCVod2

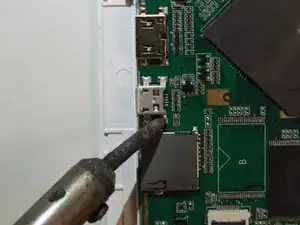

    • Repeat steps 2-5 for the soldering of the other 3 prongs.

    • Once all four prongs have been soldered off the USB charging port will remove from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Conor Langenbahn

Mitglied seit: 11/03/15

228 Reputation

Ein Kommentar

You forgot to desolder the leads on the board first, if you don't, the lands on the board can be lifted off and you lose contact to the charge circuit.
