Toshiba Portege Z835-P330 Internal Cooling Fan Replacement

Geschrieben von: Dominic Whiting
  • Kommentare: 1
Toshiba Portege Z835-P330 Internal Cooling Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

  1. BxMowLSdh3IAxrhh

    • Remove the thirteen 1.4mm screws using a Phillips #2 screwdriver.

  2. dewHTVFYsWi4kDWM

    • Locate hidden screw found in the middle of back hardcover.

    • Here you will find a proprietary Japanese Screw Head.

    • Remove screw by using tool not provided by IFixit or by using the methods found here.

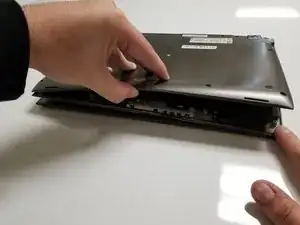

  3. 61lT4KejMAOtHCAN

    • Peel off hard cover to expose interior of device

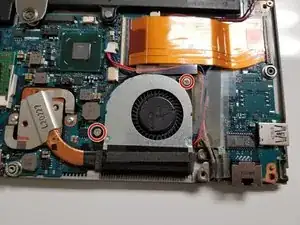

  4. COWiWItaTyHcNMU3

    • Remove the two 1 mm screws using a Phillips #2 screwdriver.

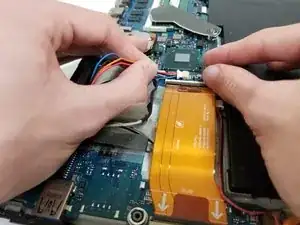

  5. 4YJreN3aRvM5TfWR

    • Unplug the internal cooling fan by tugging gently on the wire attatched to the device's motherboard

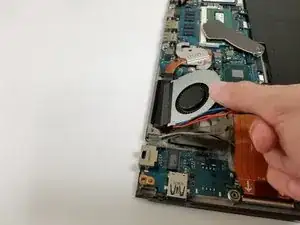

  6. pdq4kFIKTP1s1Jmo

    • Lift the internal cooling fan to remove the fan from the device

    Some additional steps:

    - Note that the screws on the two corners that hold the lid in place place are longer than the other screws.

    - Gently lift the plastic sleeve before removing the fan cable

    - Remove the black plastic rectangular sheet from the old fan and attach it to the new fan. You may need some double-sided tape or other adhesive. (Or, your new fan might already have this part on it. Mine didn’t.)

    Wayne Seltzer -

Abschluss

To reassemble your device, follow these instructions in reverse order.
