Toshiba Portege Z835-P330 Keyboard Replacement

Geschrieben von: Dominic Whiting
  • Kommentare: 4
Toshiba Portege Z835-P330 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This repair guide will give you the steps to follow to replace the keyboard of your device.

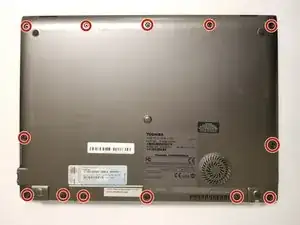

  1. xcPv3MJCFyOrqrMe

    • Remove the thirteen 1.4mm screws using a Phillips #2 screwdriver

    I wish mine were all 1.4mm. Mine came with 4 different screw lengths. Ugh.

    maccentric -

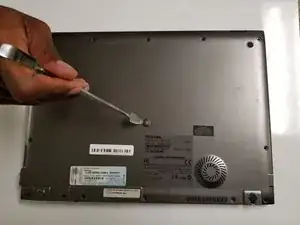

  2. wUgtw4kSxCd6VhlJ

    • Locate the hidden screw found in the middle of the back hard cover.

    • The hidden screw is found under the rubber cover shown in picture.

    • Here you will find a proprietary Japanese screw head.

    • Remove the screw with your own tool (not provided by IFixit) or by using the methods found here.

    I believe that is a Torx 7 security screw.

    maccentric -

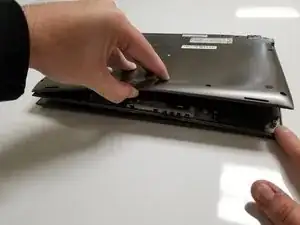

  3. wgtKhfqnbdqNdcUD

    • Peel off the hardcover on the back of the device to expose the interior of the device.

    • Force may be required, but the hardcover should detach smoothly.

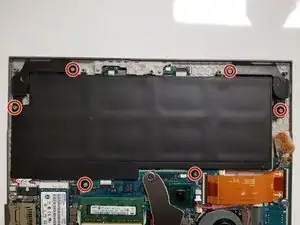

  4. IlF1eeoBjkGxuRgl

    • Remove the six screws using a Phillips #1 screwdriver.

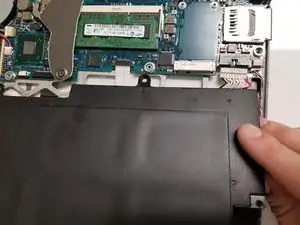

  5. sxn63KqLy23tCbSx

    • Remove the white Bundled Cable Connector by gently pulling it out of the socket. Follow the guide here.

    • Plug should easily detach with little force.

  6. OBcaMY5f4cMuFPYF

    • Lift the battery up by its sides. The battery should easily come off.

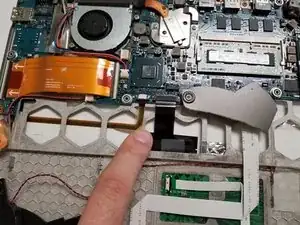

  7. ZYv1irqDW3jmsqKJ

  8. x1IFcK13whvDpjeK

    • Remove the two cables by following the direction here.

    • The cables should come off easily.

  9. sHBfL6gBcMMWHaIW

    • Flip the device over to access the keyboard.

    • Insert the Opening Tool into the crevice on one side of keyboard frame.

    • Pry off the keyboard using the tool.

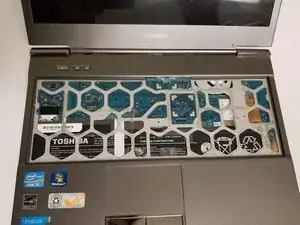

  10. TWAAAgcHfv4pqvEW

    • Pull off the rest of the keyboard with your hands when you're able to easily grab underneath the keyboard.

    • The keyboard will be taped underneath but will easily detach.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Dominic Whiting

Mitglied seit: 08/02/18

897 Reputation

2 Kommentare

Ordering the parts for my wife’s Toshiba shortly. It has been an excellent machine but the keyboard keys have worn off. Seems like a very straight forward process. The question that I have is what do I use to hold the keyboard back in place?

Thanks for the directions. George

George Bootes -

Only one key gets off the keyboard (down cursor) I’ve got the key and the rounded rubber that fits into the mechanism, most of the time it works but when I press continusly it gets off.

Is there a way to fix it without changing the whole keyboard?

Jesús Fernández Sánchez -
