The keyboard may need to be replaced when a key(s) does not work as intended. This is possibly the most difficult part to replace on this laptop as it requires the most parts to be removed. Please refer to the Keyboard Troubleshooting Guide to determine if your keyboard needs to be replaced.
-
-
Wedge the tip of a plastic opening tool between the back cover and the metal frame.
-
Twist the plastic opening tool, while wedged, in order to release the retaining tabs from the frame.
-
Repeat these steps in a circular pattern around the laptop to release all retaining tabs.
-
-
-
Once all retaining tabs are released from the frame, you can pull up on the back cover to remove it.
-
-
-

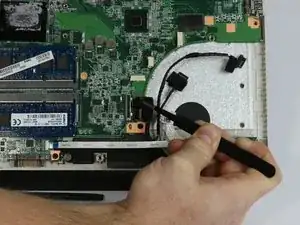

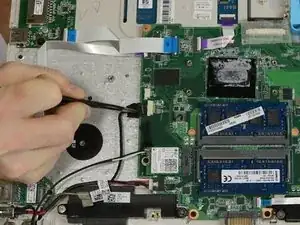

Wedge the flat end of the spudger between the connector and its socket.
-
Twist back and forth in order to pry the connector loose from its socket.
-
-
-
On all ZIF (Zero Insertion Force) connectors, use a spudger to lift the lock.
-

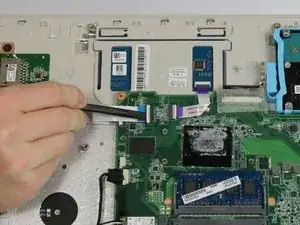

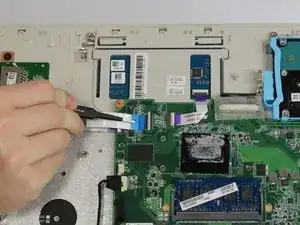

Use tweezers to pull on the designated pull tab to remove each ZIF connector.
-
-
-
On all No-Fuss Ribbon Cable Connectors use tweezers, on the designated tabs, to remove them.
-
-
-

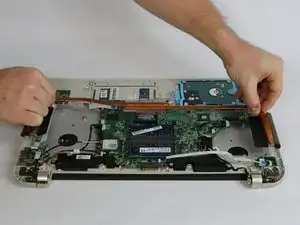

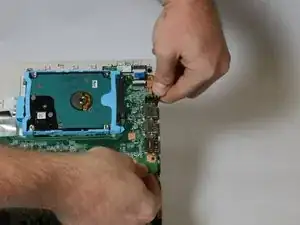

Lift on the motherboard from the USB port area while pulling the frame away from motherboard.
-
-
-

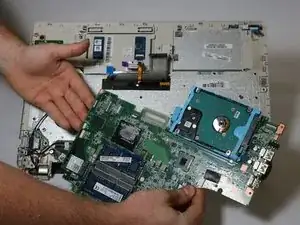

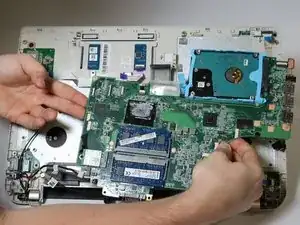

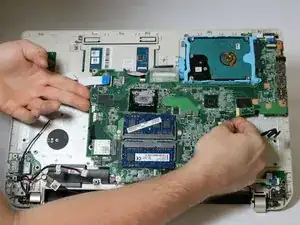

Once all connectors are separated from the motherboard and the USB port area is freed, carefully lift on either side of the motherboard to remove it.
-
-
-

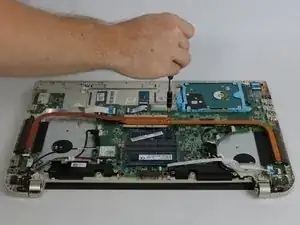

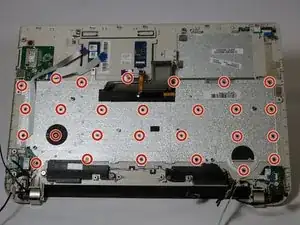

Remove the twenty-seven 2 mm Phillips #0 screws that secure the keyboard retaining plate.
-
-
-

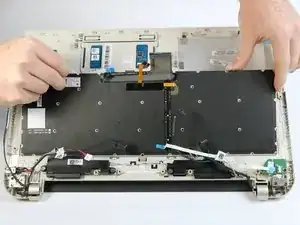

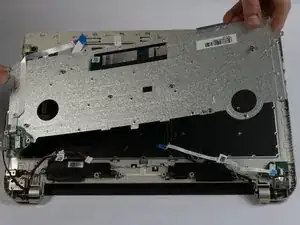

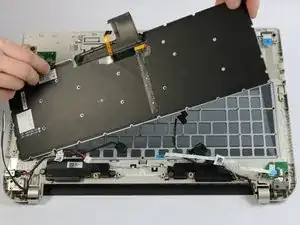

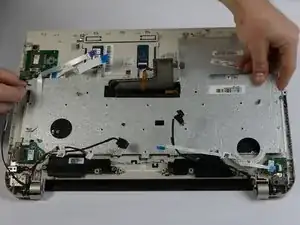

Carefully lift the keyboard retaining plate away from the laptop making sure not to damage any connectors.
-
To reassemble your device, follow these instructions in reverse order.
