The device discussed in this guide is the Toyota Tacoma 2016 Cargo LED Bed Light 00016-34187 sometimes known as the bed LED or bed light. This guide will help you replace a broken bed light with a new one. Some things to keep in mind while working is that the battery is live so take care not to touch both connection pins at the same time. Additionally, use caution while soldering as you will have to solder while upside underneath the truck. This could lead to excess solder dripping onto you and precautions should be taken to mitigate risk.
Werkzeuge
Ersatzteile
-
-

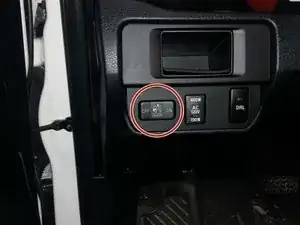

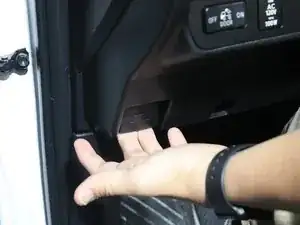

Open the hood by using the hood release lever located on the driver's side below the dashboard.
-
-
-

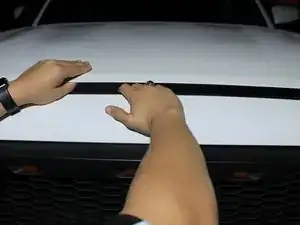

Open the hood of the truck using the hood release mechanism located towards the center of the truck.
-

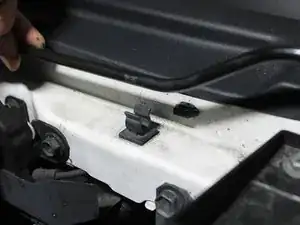

Lift the prop and place it in its designated hole in the hood.
-
-
-

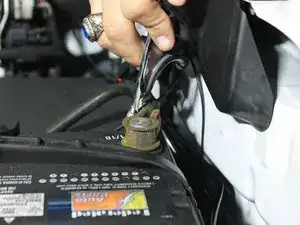

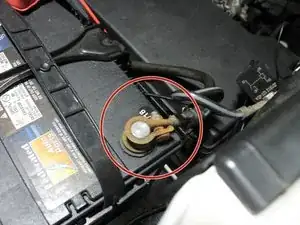

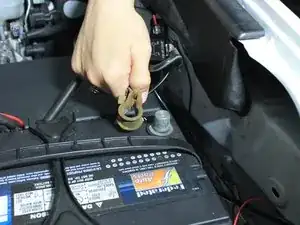

Loosen the 11mm nut on the collar holding the black wire to the negative terminal of the battery.
-

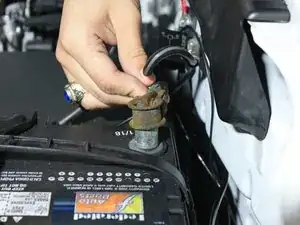

Lift up vertically on the wire and remove it from the battery contact pin.
-
-
-

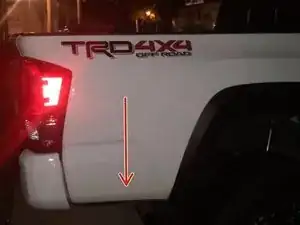

Get underneath the truck at this location.
-

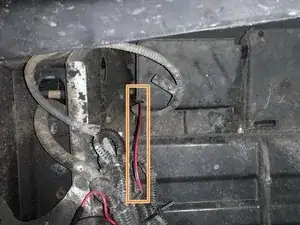

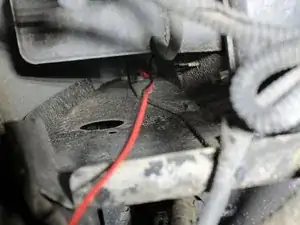

Cut the red wire in the space between the fender and the bed using a wire cutter.
-
-
-

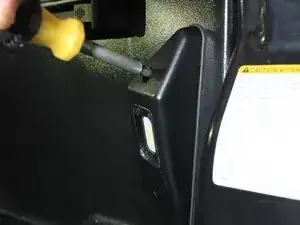

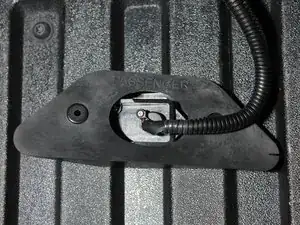

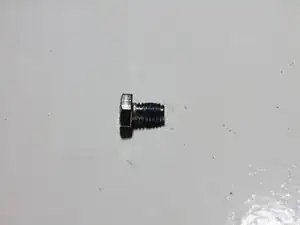

Use a Phillips #2 screwdriver to remove the two screws holding the light enclosure to the bed.
-
-
-

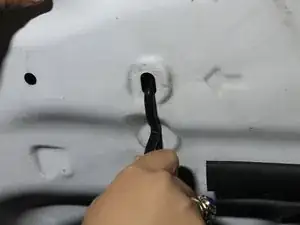

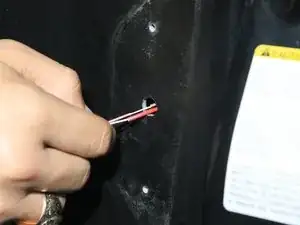

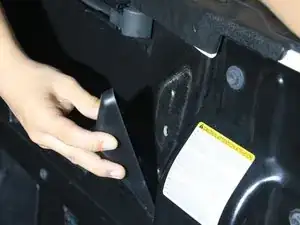

Wire the new enclosure's terminal leads through the hole in the bed.
-
Check underneath of bed to ensure that the wires are hanging freely below the bed in the same area as the wires in step 4.
-
-
-
Put blue locktite on screws to keep them in place.
-

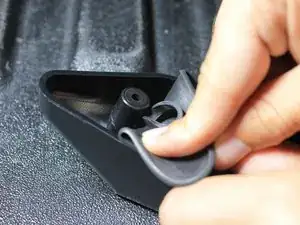

Screw new enclosure into place using a Phillips #2 screwdriver.
-
-
-

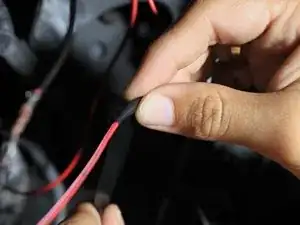

Cut the new leads to the desired length underneath the truck.
-

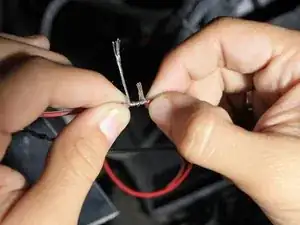

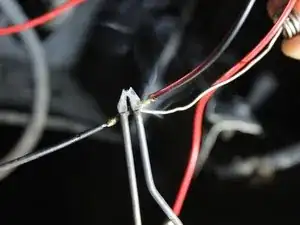

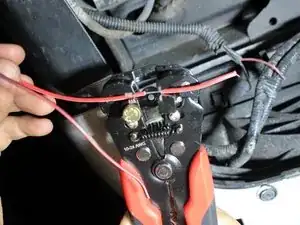

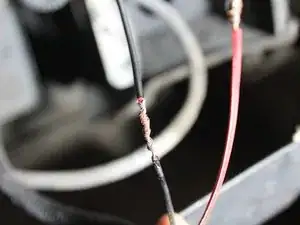

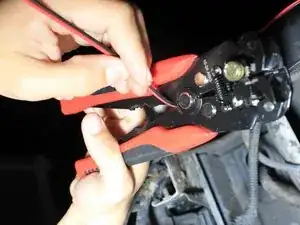

Strip the wires using a wire stripper.
-
-
-
Reconnect the negative lead to the battery.
-

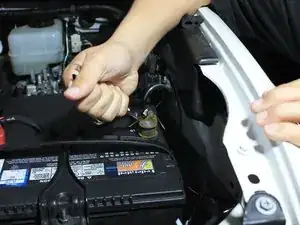

Tighten the collar using an 11mm wrench.
-
Close hood ensuring that the prop is placed in the designated clip.
-
