Trio Stealth G4 Battery Replacement

Geschrieben von: Matt Arnold
  • Kommentare: 1
Trio Stealth G4 Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

The battery provides the device with the power necessary to operate. The replacement of the battery may be necessary in cases where the device will not turn on or hold a charge.

The disassembly is relatively simple, but will require the use of a soldering iron to disconnect a couple of wires. Be sure to review the iFixit soldering guide if you do not have experience with soldering. It is also important that you do not bend the battery at any time during the disassembly, as this can cause a fire.

  1. tGWF4jOYGO1wUsX2

    • Working on your device while it is turned on may result in electric shock. Be sure to shut down and unplug your device before you begin.

    • Flip your tablet over so that the back panel is facing up.

  2. CaDQPSLZdInAYfxW
    CaDQPSLZdInAYfxW
    COeHjHm65UJxs165

    • Use a plastic opening tool to gently pry the back panel assembly apart from the front casing.

    • Start on one edge of the device by inserting the plastic opening tool between the back panel and the front casing using a gentle rocking motion.

  3. XPypXjkH2YfjEHuf

    • Once you have successfully separated one edge of the back panel from the front casing, slide the plastic opening tool along the other edges to detach them as well.

    • The latches keeping the back panel attached to the front casing can sometimes be a little difficult to separate, so don't be afraid to use some force.

  4. cWxABpnQ5lCLcx1J
    cWxABpnQ5lCLcx1J
    cZNlQwFpVRIOV61P

    • Remove the back panel from the rest of the tablet and set it aside.

  5. PIV6AVKLdbZQsJSg

    • The plastic volume button cover may fall out when you remove the back panel. Set it aside.

  6. iwUjxQ3UJC5nnjGP

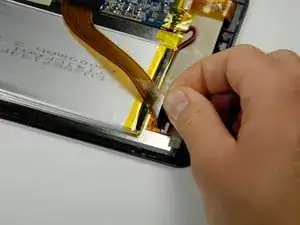

    • Remove the black tape covering the zero insertion force (ZIF) connector that holds down the end of the yellow colored ribbon wire that lies across the battery.

  7. SqnbnnmWOGhmklFn
    SqnbnnmWOGhmklFn
    BBH4ebkFmMHsPlAA
    G5vqtdlJQXPnuJSo

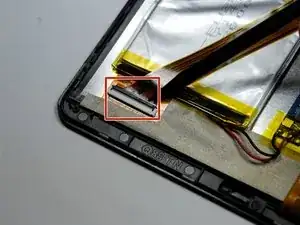

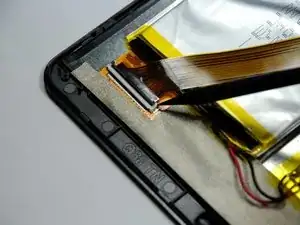

    • Wedge a spudger underneath the black flap on the ZIF connector and flip it up.

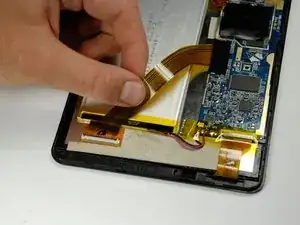

    • Once the flap is up, use your fingers to disconnect the end of the ribbon wire from the connector.

  8. QymJIvgyx3WQ5LGA

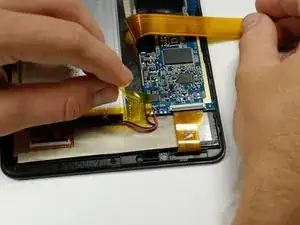

    • Carefully remove the yellow tape from the red and black wires connecting the battery to the motherboard.

  9. XTuPepb6yPHiEJcU

    • Use the soldering iron to melt away the solder from the motherboard connections.

    • Once the solder is completely removed, pull the wires away from the motherboard.

  10. tZkd5HjFuwILJpnI
    tZkd5HjFuwILJpnI
    yvdJbtUTViK2JvZQ

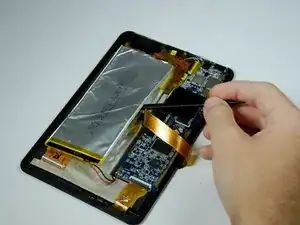

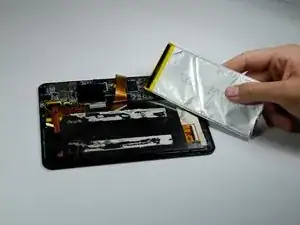

    • Use the spudger to gently dislodge the battery from the tablet.

    • Do not bend the lithium-ion battery. This can cause a fire.

    Thanks for the step by step process, appreciate! Battery only lasts 18 minutes and shuts down without warning. My G4 has two tiny phillips screws that must be removed before the cases will split on that side. Glad I saw them. One screw is to the left of the memory card slot, the other is to the right of the charger port. I am always nervous when splitting cases. The factory battery is a 3.7v, 4000mAh. I will try to find one that matches it. Thick: 3.7mm, Length: 143.5mm, Width: 92mm.

    Jim -

Abschluss

To reassemble your device, follow these instructions in reverse order.
