Einleitung

This guide will exhibit how to replace the microphone board. Soldering is required to detach and replace the board, so refer to the soldering replacement guide for more information.

  1. Cx4AcaGXjYHxNnGa
    Cx4AcaGXjYHxNnGa
    cJcUKgPBpWUADLUw
    XvA1xFCYGhliYPOl

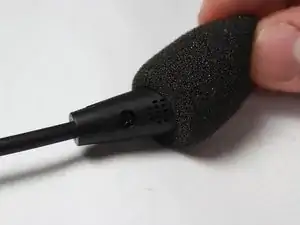

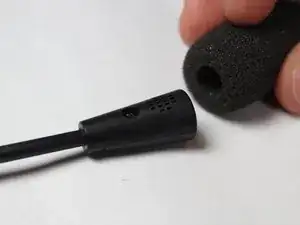

    • Gently remove the foam pad from the microphone by pulling it apart.

  2. URWvmsqYLogqyPKK

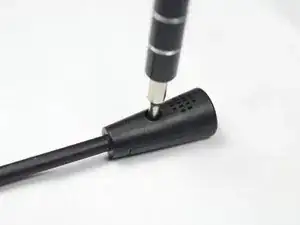

    • Remove the PH0 7.1 mm screw from the back casing.

  3. LmwAOaL2orMuPjXx
    LmwAOaL2orMuPjXx
    KYrPvkpy31QsBVqs

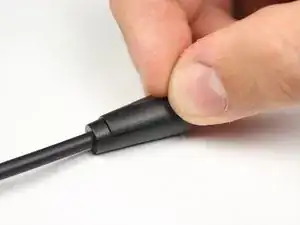

    • Remove the back casing from the microphone.

    • Desolder the two wires from the back of the microphone. For instructions on soldering, please see iFixit's soldering guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
