Turtle Beach Ear Force XO Four Speaker Cone Replacement

Geschrieben von: Evalyn Johnson
  • Kommentare: 1
Turtle Beach Ear Force XO Four Speaker Cone Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

3 - 5 Minuten

Einleitung

If one of your Turtle Beach Ear Force XO Four speakers stops working, it may need to be replaced. To do so, follow this guide.

  1. lmgMOlDAe6jaStB4

    • Insert a flat metal object (such as iFixit's Jimmy tool) between the green and black plastic portions of the headset.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

  2. cdxtIoHxSLpiV33k
    cdxtIoHxSLpiV33k
    ualDP3YJD1FvB1Ad

    • Carefully pry the plastic pieces apart, working your way around the ear cushion.

    • Be sure not to break the tabs on the back side of the ear pad!

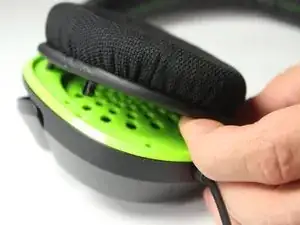

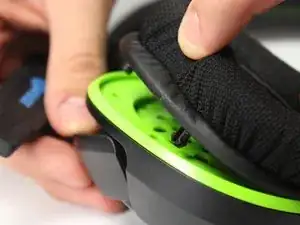

  3. YCxwwGjaOcAswIZr
    YCxwwGjaOcAswIZr
    MnmBqA5IiVWyteql
    BfI2vXHQljayJooR

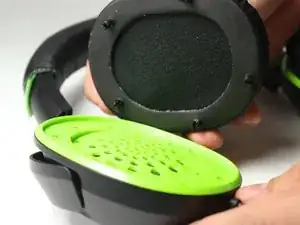

    • Pull the loosened ear pad apart from the rest of the speaker.

    • Pushing the pad and the speaker back together is the only step required for ear pad reassembly.

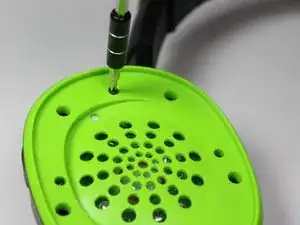

  4. JLGfIFv2DKRRc4yP
    JLGfIFv2DKRRc4yP
    AIK4CUmFuDl6ECEr

    • Remove four 7.3mm PH0 screws.

    • As these screws are very small, it may be best to keep them in a plastic bag or other container.

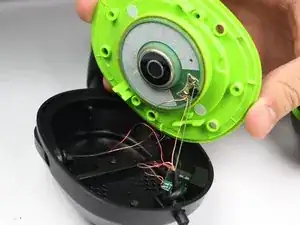

  5. dFIF4s6H55BoYwgH
    dFIF4s6H55BoYwgH
    Gb2CDxIpiPpZ4Vly

    • Lift speaker cone off of the back casing.

    • Be gentle; the small wires connecting the speaker cone to the rest of the device may break if you pull too hard.

    • Follow iFixit's soldering guide to remove the wires connected to the speaker.

    What about a link to purchase a replacement speaker cone?

    Kyle Jackson -

Abschluss

To reassemble your device, follow these instructions in reverse order.
