Einleitung

  1. 6WCISVPKApiiPsSP
    6WCISVPKApiiPsSP
    JSJYIZutYtBeqfyK

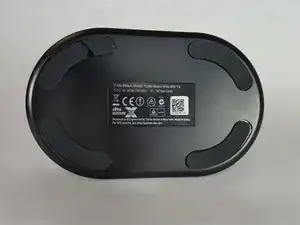

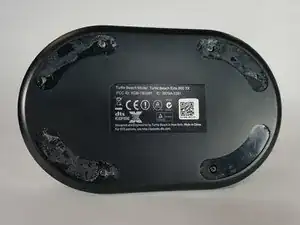

    • Begin by flipping over the transmitter, and removing the padding from the underside of it. This will reveal the screws to take apart the device.

  2. Yrk1ViaEdQnYXOFF
    Yrk1ViaEdQnYXOFF
    sPQpiFtdYvAJLiK3
    nH3LWvPkHprOTWW4

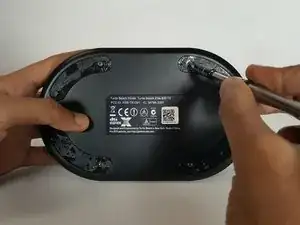

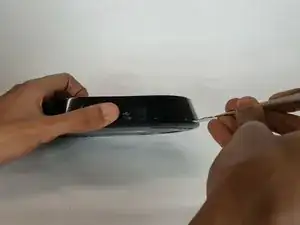

    • Remove the screws ( 11.27mm Phillips head) and open up the transmitter to reveal the internal components. Carefully pry open the transmitter, and use caution when opening it up as to not sever the wire.

  3. HbRPrh2ITaicSaBq
    HbRPrh2ITaicSaBq
    mPJwSt1LMDboWWTF

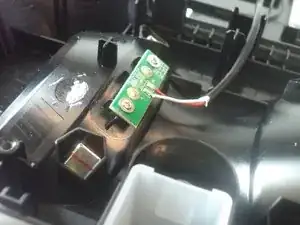

    • Remove the two screws (5.21mm Phillips head) on the board on the top half of the transmitter that is holding the charging pins.

  4. ZtWR2kBqvPPaPUbh
    ZtWR2kBqvPPaPUbh
    fdNOtDKJmODHyOKJ
    ExXyFAeAFUyqJQFq

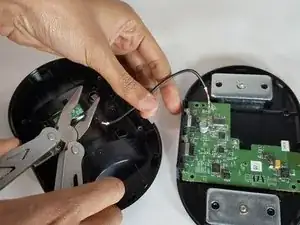

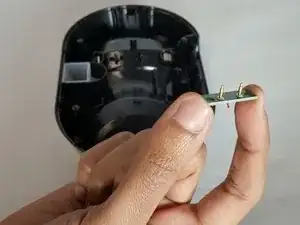

    • Once the screws are removed, desolder the two wires from the board, and then remove it, and the charging pins with it.

    • Take extreme caution when dealing with a soldering iron. Refer to the desoldering guide for tips.

    • Note that for the purposes of this guide we simply clipped the wires connected to the board holding the charging pins.

    Really useful!! Thank you.

    Do you know why the light on the transmiter is a solid green and i can t pair the headset with it?

    Dan Caluser -

Abschluss

To reassemble your device, follow these instructions in reverse order.
