Uniden UTAB71 Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

2

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide will explain how to replace the internal speaker of a UTAB71.

  1. eN4nXgZJuFEkSCi4
    eN4nXgZJuFEkSCi4
    DcNGdADOZodSRFKv

    • Use a plastic pry tool to undo the clips that attach the two halves of the tablet.

    • Make sure to be gentle with the pry tool and work your way around the edges of the tablet slowly.

    • Make sure the tablet is powered off before prying open.

    • There are two power ribbons connecting the screen to the back of the tablet. Make sure not to put too much stress on them.

  2. 6DQIYaWtkIM4du4V

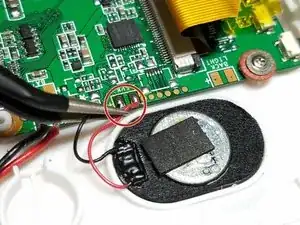

    • Use a soldering tool to disconnect the speaker wires off the motherboard.

    • If you have no experience in soldering, please follow this guide

Abschluss

To reassemble your device, follow these instructions in reverse order.
