VTech CS6719-2 Base Fuse Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

During this guide, the base will need to be disassembled and the board flipped over to desolder the fuse connection.

  1. FpowwHuWBO1jDXeG
    FpowwHuWBO1jDXeG
    ytQTv1RfRfgX1BIK

    • Remove the four Phillips #0 screws (9.4mm) located at the bottom of the phone on the back side of the base.

  2. c1jZneNANmHWAWq6

    • Use the spudger to separate the bottom from the top.

    • There are two clips, located top and bottom, that you have to compress with the spudger.

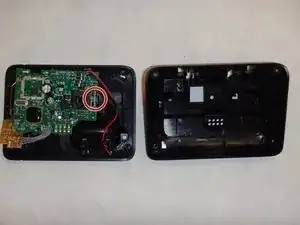

  3. mHqFSUR1uTbH54qr

    • Locate the fuse.

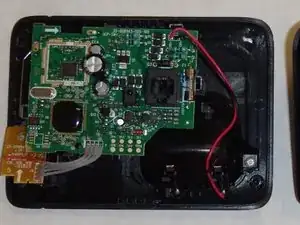

  4. DLYHmJGJuKtYIdHO

    • Flip the board over.

    • Remember where the fuse is located.

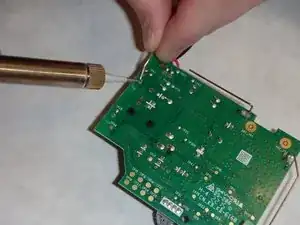

  5. K4LdutHYCwFdgyPw

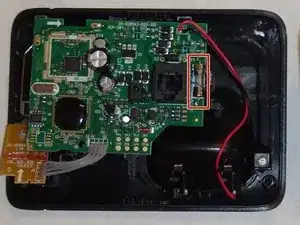

  6. SU1JHWlKABXv5ZbA

    • Flip the board back over and remove the fuse.

Abschluss

To reassemble your device, follow these instructions in reverse order.
