Einleitung
During this guide, the base will need to be disassembled and then desolder the charging wire connections.
-
-

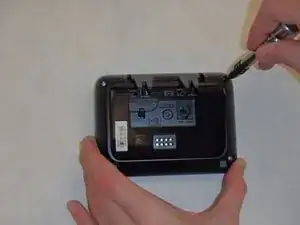

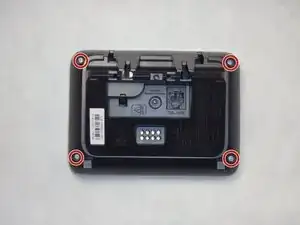

Remove the four Phillips #0 screws (9.4mm) located at the bottom of the phone on the back side of the base.
-
-
-

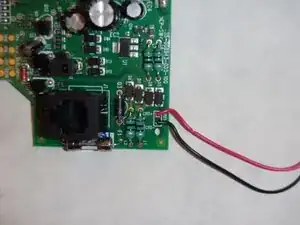

Heat up solder joint on the circuit board where the charging wires are connected. Note: This is the CRD- and CRD+ terminals.
-
-
-
Refer to How to Solder and Desolder connections Wie man Lötverbindungen herstellt und entlötet
-
-
-
Take a wire of solder and apply to joint on board to remove the extra solder.
-
Note: Ensure the old solder joint is removed.
-
Caution: Soldering iron and joint will become very hot.
-

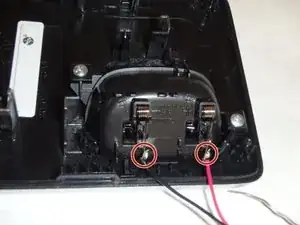

Remove charging wire connection.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
