VTech Learning Tunes Karaoke LCD Screen Replacement

Geschrieben von: Gregory Timmins
  • Kommentare: 0
VTech Learning Tunes Karaoke LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Does the screen not show any animations while on? Replacing the LCD screen may solve your problem.

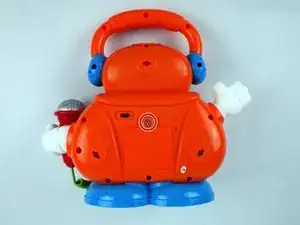

  1. wFeNVrBKNLVDIJjS

    • To remove the battery door, loosen the screw using a Flathead screwdriver.

    • A coin can also be used to loosen the screw.

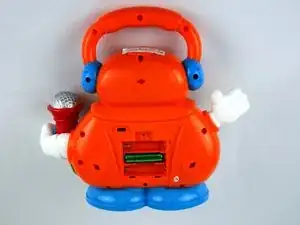

  2. fEfKNS2sGeLgLQEa
    fEfKNS2sGeLgLQEa
    KBUGFWBhAKUSVFb2

    • Remove the battery door and take out the batteries.

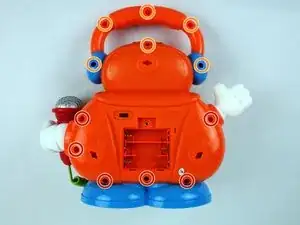

  3. F2sVnGY1jhoBZdHt

    • Remove the six 9.5 mm Phillips #2 screws.

    • Remove the six 6.0 mm Phillips #2 screws.

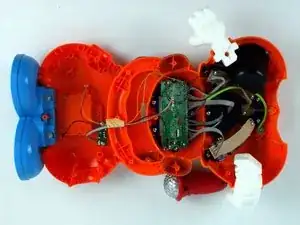

  4. hauSQIaPRKPLG4NE
    hauSQIaPRKPLG4NE
    sUINTyLZlyMP621N

    • Gently pull up on the rear panel.

    • Be careful to not pull on the wire connections.

    • Gently place the back panel underneath the top panel with the tops facing each other, as shown in the picture.

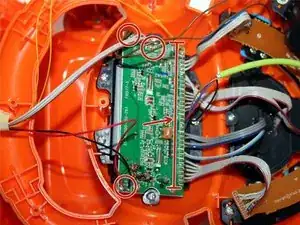

  5. UtNJXnaCtwpJIEyW

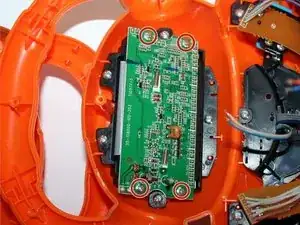

  6. SJNZD6boHfihV6UH

    • Using Phillips #1 screwdriver, remove the four 7.9 mm LCD board screws.

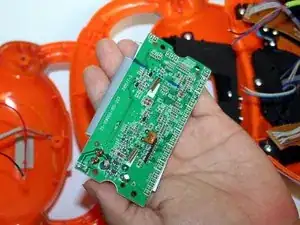

  7. T34qAEIbO6nDTG5V

    • Remove old board and screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
