VTech Learning Tunes Karaoke Speaker Replacement

Geschrieben von: Gamuchirai Chifamba
  • Kommentare: 0
VTech Learning Tunes Karaoke Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Is the sound not audible and/or distorted? This guide may help in finding a solution to fix the problem.

  1. 5S145FvRvPWcS1JP

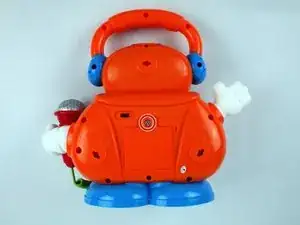

    • To remove the battery door, loosen the screw using a Flathead screwdriver.

    • A coin can also be used to loosen the screw.

  2. 1ZAZ5wISORYbldNR
    1ZAZ5wISORYbldNR
    xLdWW2BUievsWRNm

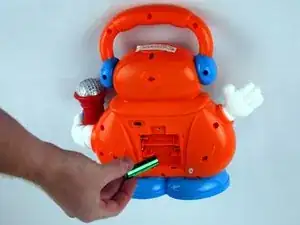

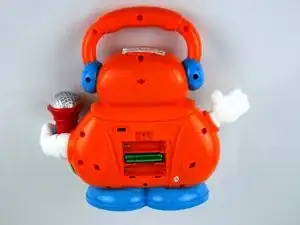

    • Remove the battery door and take out the batteries.

  3. KP3Zxb3YiRRdqWXY

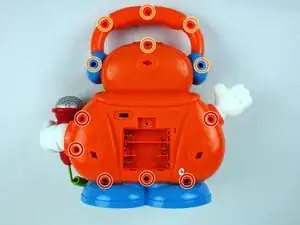

    • Remove the six 9.5 mm Phillips #2 screws.

    • Remove the six 6.0 mm Phillips #2 screws.

  4. dPdOReMLlMAaaYUX
    dPdOReMLlMAaaYUX
    qMFmClEXy3N32WfC

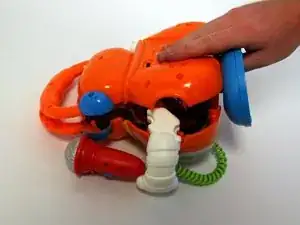

    • Gently pull up on the rear panel.

    • Be careful to not pull on the wire connections.

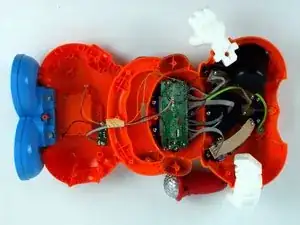

    • Carefully place the back panel underneath the top panel with the tops facing each other, as shown in the picture.

  5. ALhUQpVYvTjWMq2Q
    ALhUQpVYvTjWMq2Q

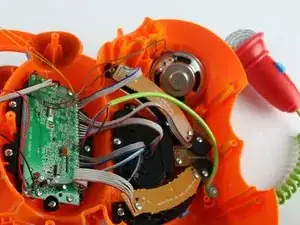

    QxF4YofqgRogfQfM

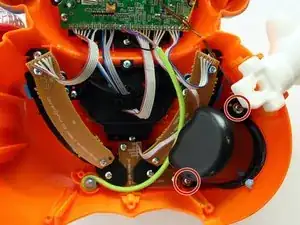

    • Remove two 7.9 mm Phillips #1 screws on the speaker cover.

    • After removing the screws, remove the black plastic speaker cover to expose the speaker.

  6. 6tAY5Tk1WUUZZ5Aj

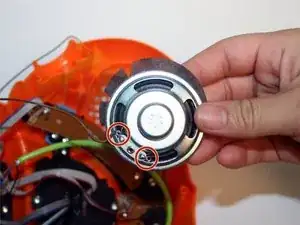

    • Desolder the speaker at the solder points to remove.

    • Learn more about soldering and desoldering connections here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
