VTech Learning Tunes Karaoke Volume Switch Replacement

Geschrieben von: Lezette Leuterio
  • Kommentare: 0
VTech Learning Tunes Karaoke Volume Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Are you unable to adjust the volume? This guide may help solve your problem.

  1. EDBLItLA34UDKnSB

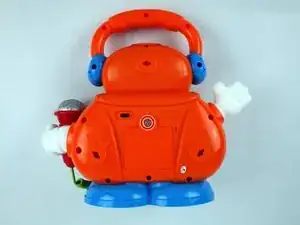

    • To remove the battery door, loosen the screw using a Flathead screwdriver.

    • A coin can also be used to loosen the screw.

  2. KrMxVMKQlA1q4aCF
    KrMxVMKQlA1q4aCF
    Ztnc6SC4aofge1KY

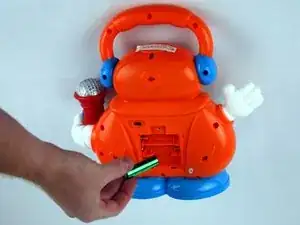

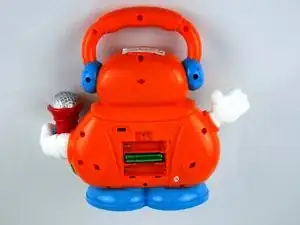

    • Remove the battery door and take out the batteries.

  3. OmbWk5AEkTU3wxMi

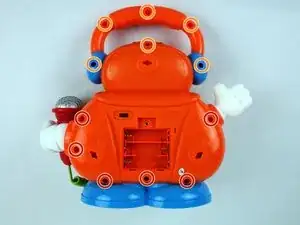

    • Remove the six 9.5 mm Phillips #2 screws.

    • Remove the six 6.0 mm Phillips #2 screws.

  4. DL1ZW5pCtNnsCPkU
    DL1ZW5pCtNnsCPkU
    hMwGPuac33Ft5AER

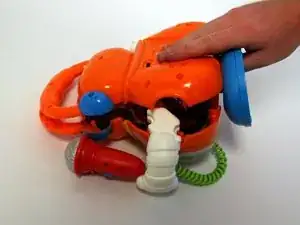

    • Gently pull up on the rear panel.

    • Be careful to not pull on the wire connections.

    • Gently place the back panel underneath the top panel with the tops facing each other, as shown in the picture.

  5. SfATKDFkIp6gkFdn
    SfATKDFkIp6gkFdn
    buKa3cYETWLZYZfn

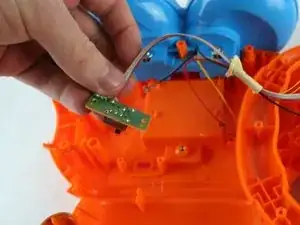

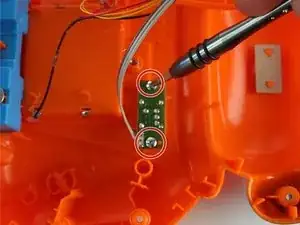

    • Using a Phillips PH1 screwdriver, remove the two 7.9 mm volume switch board screws.

  6. AG2fnArngaBywTWv

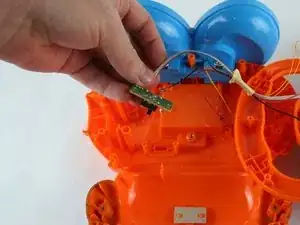

    • Once the screws have been removed, carefully move the volume switch board.

  7. KhtJQlqA1TJSUVqH
Abschluss

To reassemble your device, follow these instructions in reverse order.
