If your device is not turning on, it is possible that the wiring that connects the batteries to the motherboard is ruptured. This guide will give directions on replacing these wires.

Werkzeuge

Schritt 1

Remove the 9.9 mm screw covering the batteries with a PH1 driver head.

Schritt 2

Use a plastic opening tool to pry the batteries out of their holding.
If replacing your batteries with new ones, be careful to insert them as indicated on the device.

Schritt 3

Position the VTech Little Apps Tablet face-down on a flat surface so that you can clearly see the back of the device.
Remove all seven 9.6 mm screws located around the perimeter of the back cover with a PH1 driver head.

Schritt 4

Gently remove the back cover then flip it 180 degrees so that the back cover of the device is now face-down.
Proceed with caution as there are wires attaching the back cover to the front cover of the device that could be easily detached.

Schritt 5

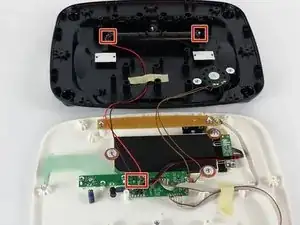

Visually inspect the wires connecting the motherboard to the batteries, looking for damage.
Possible damage includes: lead disconnections, wire fraying, and complete wire disconnections.

Schritt 6

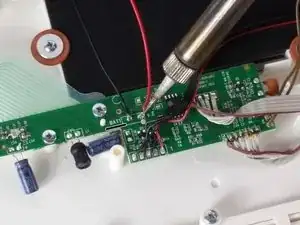

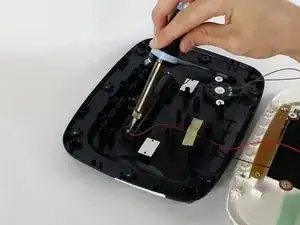

Desolder the internal wire leads connected to the batteries, making sure to remove the positive (red) wire first, and the negative (black) wire second.
For assistance with soldering, see this Guide.
