VTechCS6719-16 Speaker Replacement

Geschrieben von: Charles montes
  • Kommentare: 0
VTechCS6719-16 Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This guide demonstrates a walk-through of steps needed to completely dismantle the phone in order to locate the speaker and replace it with a new one.

  1. CfMM6JC5bB4SEids

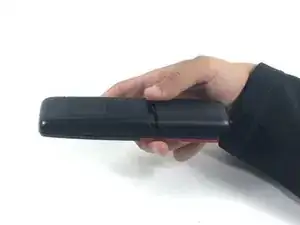

    • Remove the sliding cover on the back of the phone case.

  2. OSJJC222DpjHxsFD

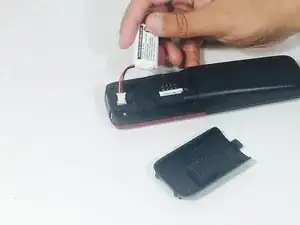

    • Now remove the battery by lifting it and removing the two pin cable.

  3. 4OGbKImlwIfIgUn5

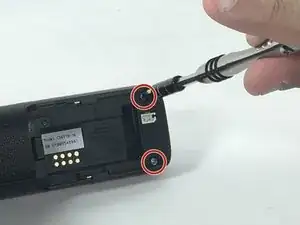

    • Unscrew the two 10mm screws on the back of the phone base.

  4. Rt1VDY4nrCgHZWBS

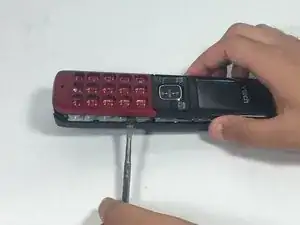

    • Using the metal spudger edge along the phone and locate the hooks and latches.

    • Locating each of them apply a light but firm lifting force to release the front and back case.

  5. lkaMHNNifS5eFx1E

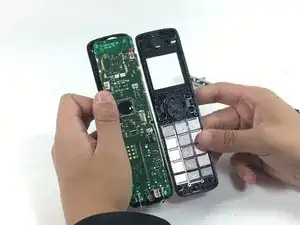

    • The front case should now be freed.

    • Put the front case aside for later.

  6. a4DO6JLMniV1kdDI

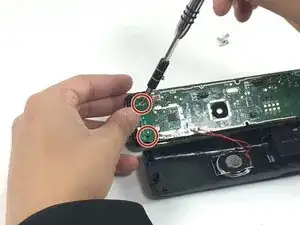

    • There are two 10mm screws located at the top of the circuit board.

    • Unscrewing the screws allows for access to the speaker.

  7. DUdZOjME5BVCuURU

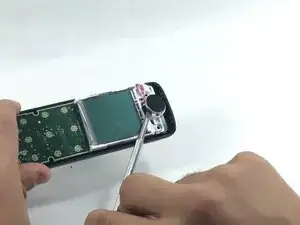

    • Flipping the circuit board will expose the speaker rested in the white LCD base.

    • Gently using the scoop end of the spudger will free the speaker from the dock.

    • Careful not to jerk the speaker as it is still attached to the board.

  8. CWJZCyTByWnukjUA

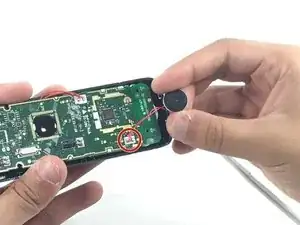

    • The last portion of this will require soldering skills. Simply solder the speaker from the board and replace with desired speaker.

    • If this is your first time soldering, check out this useful soldering guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
