Verizon Ellipsis 7 Power Button Replacement

Geschrieben von: Taylor Nieman
  • Kommentare: 3
Verizon Ellipsis 7 Power Button Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

1 Stunde

Einleitung

This guide will show how to replace a defective power button on the Verizon Ellipsis 7.

  1. MSjx3bMBF5XwZaKC
    MSjx3bMBF5XwZaKC
    b5goXqA5pBM14UiB
    esmVXpNcZ3jJMmBa

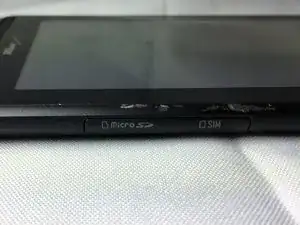

    • Power down device by holding down the power button until the screen goes black.

    • Remove the SIM card from the device to prevent damage.

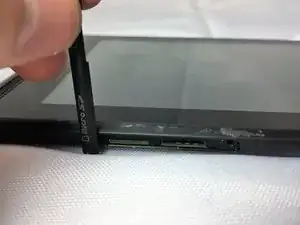

    • To remove the SIM card, open the SIM card cover on the side of the device.

    • Push SIM card in, then remove after it pops out with an audible click.

  2. H4DVg1ug6XMVGmUx
    H4DVg1ug6XMVGmUx
    vkMIo2KUcqZ6RAqw

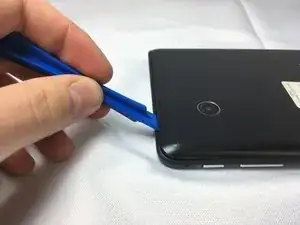

    • Take off the back panel.

    • Pry open the back cover carefully with a plastic opening tool.

    • Use the opening tool to disconnect the cover completely. Do not attempt to pull the back cover off with your hands.

    • Be sure to pry open all sides of the device. Attempting to take off the back cover when part of it is attached may snap the cover.

  3. BG25McRk1MtP2TMB
    BG25McRk1MtP2TMB
    qZHqf5CIhxksiFUV
    e2MwRDxiLrmq2f2s

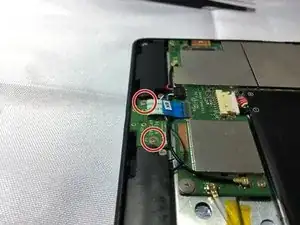

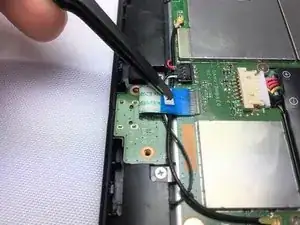

    • Remove the charging (micro-USB) port by unscrewing the indicated screws using the Phillips #00 screwdriver.

    • Disconnect the ribbon cable connecting the charging port board to the motherboard using tweezers.

    • Use the tweezers to grab the sides of black, plastic connector. Do not grab from the wires or try to wedge it out from the bottom.

    • Be extremely careful when disconnecting the ribbon cable. It is very delicate.

  4. DhhXrvBEq4jUgHQP
    DhhXrvBEq4jUgHQP
    srMq1OeuWMx56Vqr

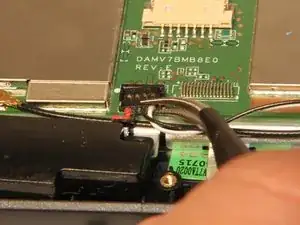

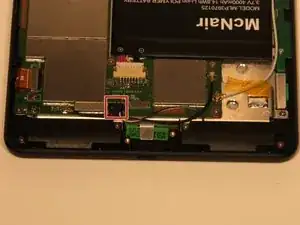

    • Disconnect speakers from motherboard.

    • Use the tweezers to carefully disconnect speakers from motherboard.

  5. 4rvUV3aUaToBDYWe
    4rvUV3aUaToBDYWe
    TUbkvhk24kSMLTWH
    kjg2jXEdBPSTIOAV

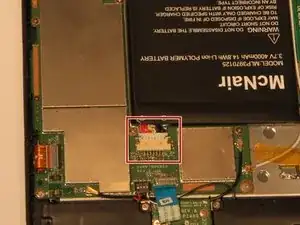

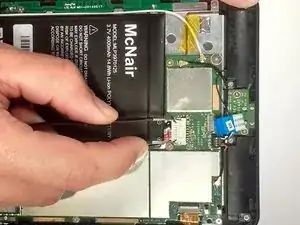

    • Disconnect the battery.

    • Use tweezers to carefully disengage connector.

  6. cMZKqITdhjHKV2OM
    cMZKqITdhjHKV2OM
    JHpkNx6mMI6tGY4A
    bpqEMSjsEGrpIbEx

    • Disconnect the digitizer ribbon cable.

    • Use a nylon spudger to lift back tab.

    • After the back tab has been lifted the cable can be removed with tweezers.

    • When using tweezers, be careful not to damage the ribbon cable.

  7. VleP2bI4KmTARxxG
    VleP2bI4KmTARxxG
    erUf6nlBZTMZjrt1
    5rh4FwVxwdODMrIG

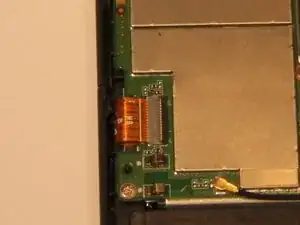

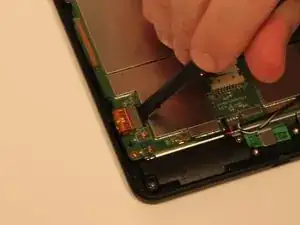

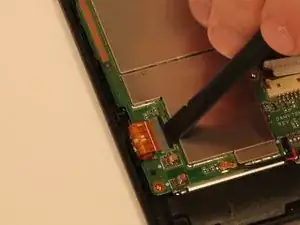

    • Disconnect the ribbon cable.

    • Use a nylon spudger to lift tab.

    • After the tab is lifted, the cable can be removed.

  8. esWOxldfQIIgltep
    esWOxldfQIIgltep
    xOSC545HsQx6yX2m
    vFuoZac6HFBtLHPW

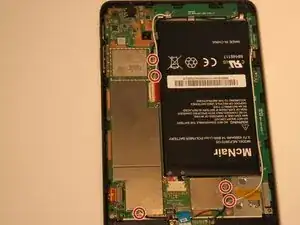

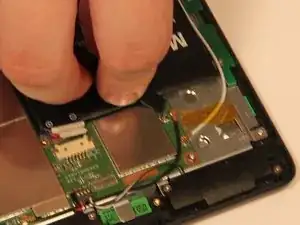

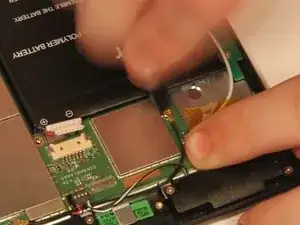

    • Disconnect all antenna cables.

    • Use a nylon spudger to pop the antenna cable from the base.

  9. L3MFKcWeaJjP6mCu
    L3MFKcWeaJjP6mCu
    uGahs4ByuYWw2VX1

    • Remove 9 Phillips #00 screws. The length of 4.76 mm

    • There is 1 Phillips #00 screw that is 3.175mm in length. This screw also has a larger head then the rest of the screws.

    • Note: when reassembling the motherboard, screw the bigger headed screw in the original location.

  10. KJDArZWCixRVRCnx
    KJDArZWCixRVRCnx
    tcgGHwyufHV2WIhk

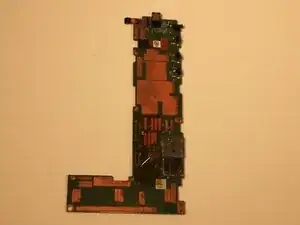

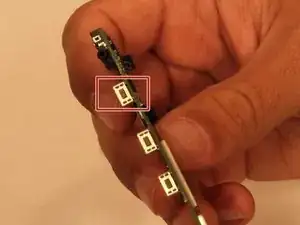

    • Remove the motherboard.

    • Locate power button.

  11. 6XAYWLTqDLsjK22m
    6XAYWLTqDLsjK22m
    Bj4wURbdZwICDDsO

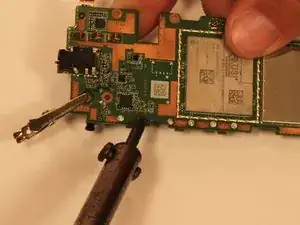

    • Desolder the power button from the motherboard.

    • Learn how to solder and desolder components here!

    Please ellipsis 7 power button ways guide me

    Ali asghar Joia -

Abschluss

To reassemble your device, follow these instructions in reverse order.
