Visual Land Prestige Elite 7Q Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

Complete the following guide to replace a dead or failing battery in the Visual Land Prestige Elite 7Q.

  1. YWeM3KScSB1PSNKN
    YWeM3KScSB1PSNKN
    OkSoRxUCdmOqdCfE

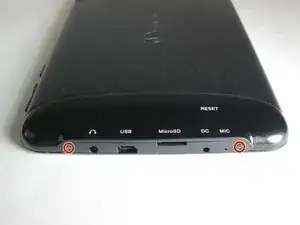

    • At the bottom of the tablet, remove the two 3.6mm screws with a Phillips #000 screwdriver.

  2. hvpsnZg4ufxQKT6a
    hvpsnZg4ufxQKT6a
    eGBYMZOBBnZAo2cO

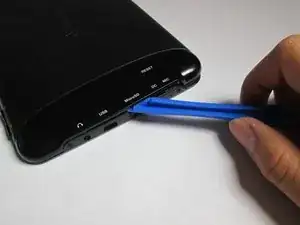

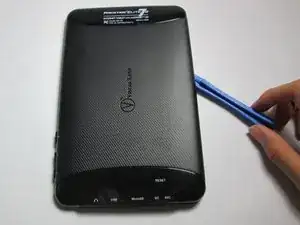

    • Wedge a plastic opening tool into the edges of the tablet to pry it open.

  3. EoCPC2NNA3tRbABM
    EoCPC2NNA3tRbABM
    TQVPwpCYRgqhTtHw

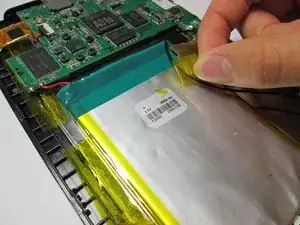

    • Peel off the yellow tape holding down the battery.

  4. vXeXhMgBqrngC5W3
    vXeXhMgBqrngC5W3
    l4lMoAySfwMq4Rki

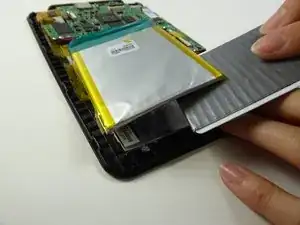

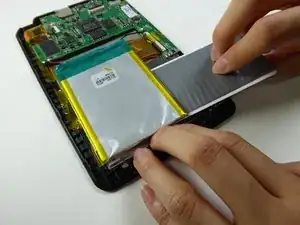

    • Use a plastic card to loosen the battery from the tablet. Note that it will be sticky underneath the battery.

  5. O2ND6DFqu5pamZZk
    O2ND6DFqu5pamZZk
    tkmoSgyxXFjosYiy
    RU1oTQ1DPVQLmGHj

    • Soldering iron gets hot. For information on how to use a soldering iron, click here.

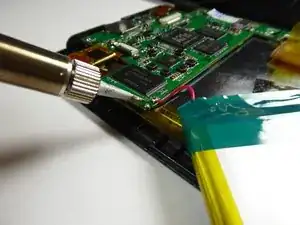

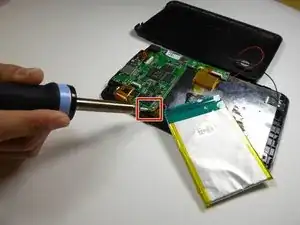

    • Use a soldering iron to detach the battery wires from the motherboard.

    • Replace the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
