Visual Land Prestige Elite 7Q Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

Complete the following guide to replace your tablet's speaker.

  1. fdZI252DnhWSxsLk
    fdZI252DnhWSxsLk
    lPXRGiBLoapjcpqq

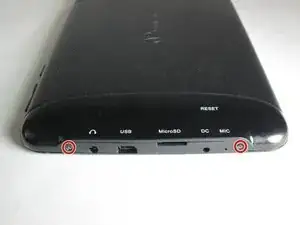

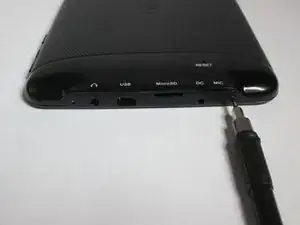

    • At the bottom of the tablet, remove the two 3.6mm screws with a Phillips #000 screwdriver.

  2. itFUpn63eDdP3smI
    itFUpn63eDdP3smI
    CU4QrEftwyWQaKaY

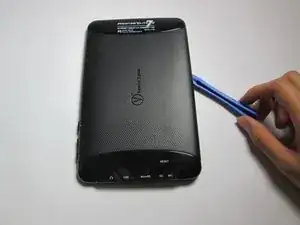

    • Wedge a plastic opening tool into the edges of the tablet to pry it open.

  3. UrLo2Wxoasgc6NUK
    UrLo2Wxoasgc6NUK
    IThPD5KKhyaUoYLQ
    3PJxvyAk66wRuiE5

    • Soldering iron may be dangerous for inexperienced users. For additional information on how to use a soldering iron, click here.

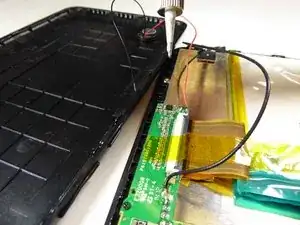

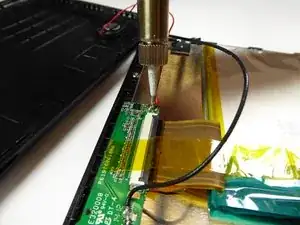

    • Use a soldering iron to detach the speaker wires from the motherboard.

  4. dIQWVNUGuM3pJ5Fs
    dIQWVNUGuM3pJ5Fs
    RjUZZqCwFBgC2KVy
    HgBpqoQFHdFqTi3E

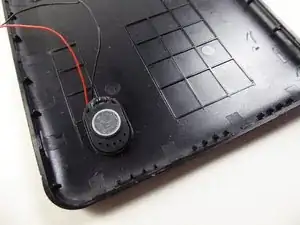

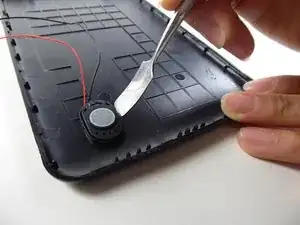

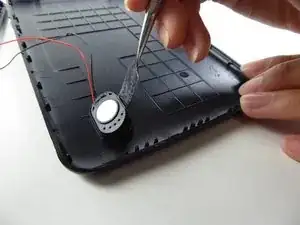

    • Use a curved metal spudger to remove the speaker from the back case.

    • The speaker is held in place by an adhesive and can be difficult to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
