Visual Land Prestige Elite 9Q Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Before starting this guide its important to note that the speaker replacement requires soldering. Don't know how to solder? Don't worry! You can learn how right here.

  1. 4mJHCfQD1hnQcD3p

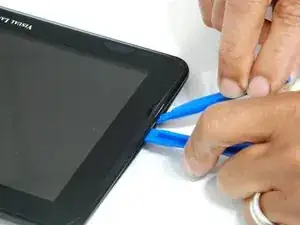

    • Using the large plastic opening tool, start along a side of the device and apply light pressure in the seam between the top and bottom outer covers.

    • Maneuver the smaller plastic opening tool at the spot of the large opening tool and slowly slide along the edge.

    • You should feel each plastic connections begin to loosen.

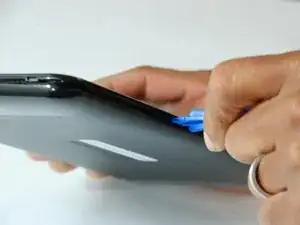

  2. KuaDXKjUHtaxOETR

    • Move tool around each connection, and continue around the device until all connections have been loosened.

    • The user risks damaging the connections if tool is slid to fast.

  3. RHGJAdQY3EiaNIES
    RHGJAdQY3EiaNIES
    MQYClASWBGddQaIj

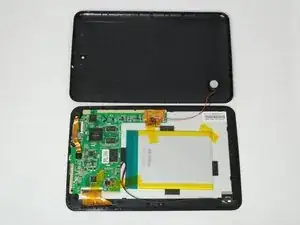

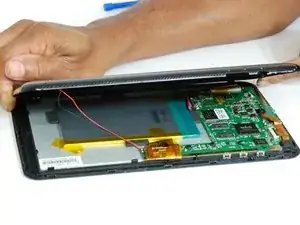

    • Once all connections have been loosened and using a soft surface, place the device onto its screen.

    • Open the casing and lay as shown in the picture keeping the speaker wires loose.

  4. smHHmqEQAqKKGdZK
    smHHmqEQAqKKGdZK
    tDGqipJRBUOWKh1h

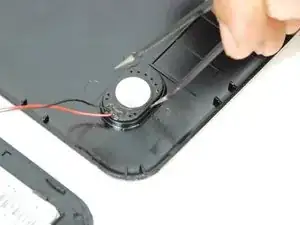

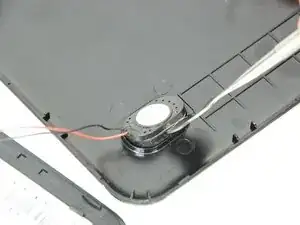

    • Using ESD safe tweezers and a spudger, gently remove the glued speaker away from the casing.

    • The speaker is still connected to the motherboard with wire.

  5. JfnOPsYbR6o1Hm1L

    • Next locate where the speaker's wires attach to the motherboard.

    • Make note of the red and black wires positions, for mixing them can cause permanent damage to your device.

  6. AIZUdpTSlP4CBsOF
    AIZUdpTSlP4CBsOF
    fLhV34y6TiwRL1kl

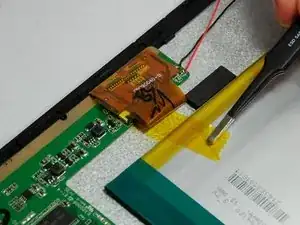

    • Before replacing the speaker, it's helpful to disconnect the LCD ribbon allowing sufficient space.

    • Remove the tape, and using hook tweezers, disconnect the LCD ZIF (zero insertion force) connection.

    • The ZIF connection takes manuvering, but the ribbon should be free and pushed out of the way.

  7. PFdDTZN1HUudDTgn
    PFdDTZN1HUudDTgn
    pVJiVHwFnlFhc6V6

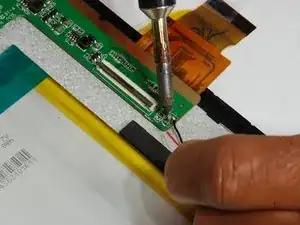

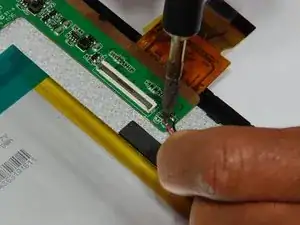

    • Before disconnecting the speaker, refer to Soldering Tips for proper soldering instructions.

    • Check the connection between the speaker and the motherboard. If it isn’t connected well, re-soldering the joint may fix the speaker.

    • Use a soldering iron the remove the speaker wires.

    • Ensure that each wire and solder connection do not touch. This will damage the device.

    • Note which nodes the wires are connected to, for replacement will occur in this order.

Abschluss

To reassemble your device, follow these instructions in reverse order.
