In order to replace the headphone port grab yourself a PH00 screwdriver, a metal spudger, and a soldering kit.
- Before you begin disassembling the Vtech InnoTab 3, turn on your soldering iron. If working with others let them know that the soldering iron is on and to use caution.
Werkzeuge
-
-
Slide the battery compartment door lock down.
-
While still holding the battery compartment lock down, slide the two battery doors outwards on either side of the device.
-
Carefully remove the batteries from the battery compartment.
-
-
-
Using a nylon or metal spudger, remove the three caps that hide the screws.
-
Remove the 5mm screw near the bottom and the two 7.6mm at the top using a PH00 screwdriver.
-
-
-

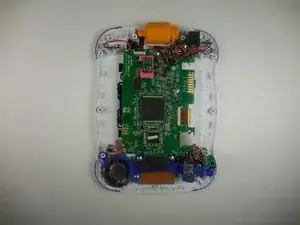

Carefully separate the back panel from the front panel revealing the motherboard connected to the front panel.
-
-
-

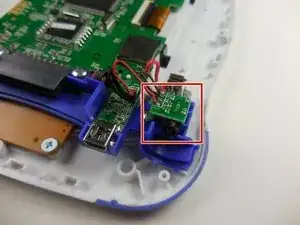

On the front panel of the device, the headphone poet is located at the bottom right corner of the device, opposte of the speaker.
-

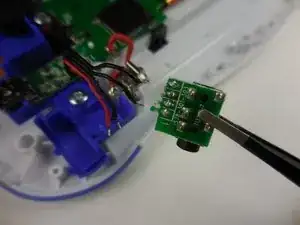

Using tweezers, lift up to remove the headphone port from its holding.
-
-
-

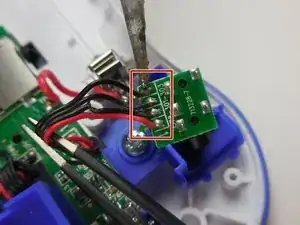

Use tweezers to hold the four connecting wires away from the headphone port.
-

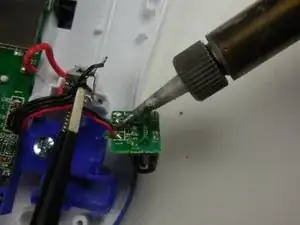

Desolder the four wires connected to the headphone port.
-
To reassemble your device, follow these instructions in reverse order.
