Vtech Kidibeats Drum Set Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

A faulty speaker can often lead to distorted audio or even no audio at all. This guide is designed to show how to correctly replace the speaker for your drum set in order to restore sound and proper function.

  1. YVP6rOZNKUBMyPXP

    • Locate the battery panel that is centered between the three leg supports at the bottom of the drum set.

  2. TPmfo2OWWYXvc5p6

    • To remove the battery panel, loosen the 10 mm panel screw using a flathead 4.0 screwdriver.

    • You can also use a small coin to loosen the screw.

  3. DDnXY6GEOlb3kORq

    • Using your fingers, pry open and remove the back battery panel.

  4. lZs1msXpnmAZXxiR

    • Use your fingers to remove each battery from its housing.

  5. KjGA2b32ZdB1tQcx

    • Using a Phillips #2 screwdriver, loosen and remove the six 14 mm screws.

  6. 5CocNM1Rr2rmSqx2
    5CocNM1Rr2rmSqx2
    i3JcisjBVHLgpcAD

    • With your hands, separate the bottom panel from the drum set.

    • When removing the bottom panel, be careful not to pull too hard in order to prevent damaging the connections from the motherboard to the speaker and power source.

  7. NO2HiQeRoHttVGZr

    • Loosen and remove the two 10mm screws using a Phillips #00 screwdriver.

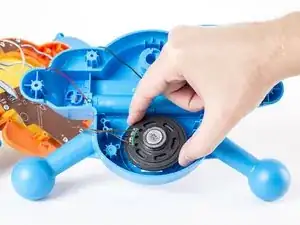

  8. mHDB2GB6hwsmPWKR

    • Using your hand, gently remove speaker from its housing.

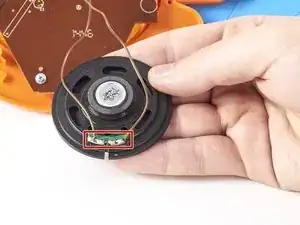

  9. AGQnH1MiHRbna1Ve
Abschluss

To reassemble your device, follow these instructions in reverse order.
