Einleitung

The USB video port on the Wacom Cintiq 24HD allows you to connect the device to any computer with a USB connector. Extended use can damage or render the video port non-functional. This guide will show you how to replace the USB port. You need basic soldering skills and a soldering kit for this replacement guide. iFixit has a guide to soldering which you can find here.

  1. OEUC5YGWLkEL2fQf
    • Unplug any cables from the USB, power, display or DVI-D ports by gripping the cord by the connector and pulling straight out of the port.

    • Unplugging the cables by pulling on the cord or pulling at an angle can damage the cable or connector.

  2. YXcDwlCKLIkNvGIB
    YXcDwlCKLIkNvGIB
    5QhPaNhNhjLjrSGy
    1nVcLKrjeGcfBi1V
    • Place the device screen down on a flat surface.

    • Remove eight 10mm Phillips #2 screws (four on each leg of the stand) by turning the screwdriver counterclockwise.

  3. ilT1Oaa1VYflE1yU
    • Lift the stand up and away from the rest of the device so the legs separate from the mounting plate.

  4. 5V32LAhRtNWyB5xM
    5V32LAhRtNWyB5xM
    N1OG1LbEleHdZhD2
    uksp3jCtWGdcKWja
    • Remove eighteen 10.2mm Phillips #1 screws from the perimeter of the back panel by turning the screwdriver counterclockwise.

    • Remove one 11.9mm Phillips #1 screw from the center of the back panel.

    • Remove two 10.2mm Phillips #1 screws from underneath hinged panels in the bottom right and left corners.

    • Our device does not include the cover panels for the USB, DVI-D, and power ports. You must first remove these cover panels shown in green in order to remove the back panel.

  5. XfbmySmHIyKfDU4T
    XfbmySmHIyKfDU4T
    tMdZGLLvLjYBJWOA
    • Lift the back panel up by a corner and insert a plastic opening tool in the gap.

    • Slide the tool along the gap around the perimeter of the device while lifting to unlatch the back panel.

    • The latches on the back panel will make loud clicking noises when opening.

    • Remove the panel by lifting it up and off of the device.

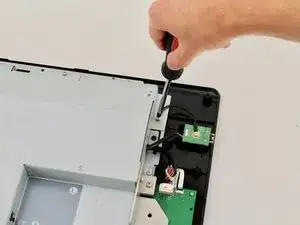

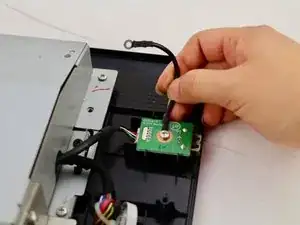

  6. sPZi4UieCpJPxqB4
    sPZi4UieCpJPxqB4
    dZmqS3VCqWpnNYlU
    s3PAvP2yK5BEOMGV

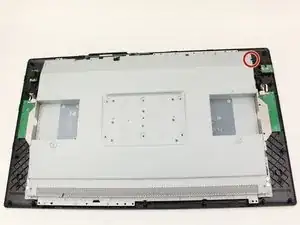

    • Detach the small black wire connecting the back metal plate to the USB video port by removing the one 8 mm Phillips #2 screw from the back metal plate and turning the screwdriver counterclockwise.

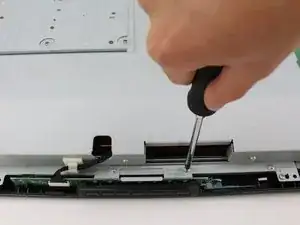

  7. sLgO6c1RHLCYbwfv
    sLgO6c1RHLCYbwfv
    VQfHFLI5y2KHrNlg
    hXq4bTRSLlRCXFpn

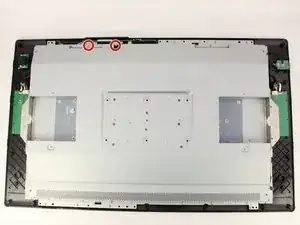

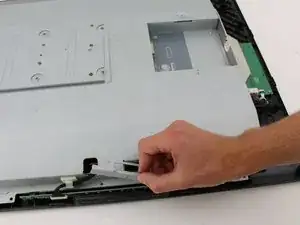

    • Remove the two 8 mm Phillips #2 screws from the metal button plate by rotating the screwdriver counterclockwise.

    • Remove the metal button plate from the back metal plate.

  8. NhbvjSgfXpWVGA62
    NhbvjSgfXpWVGA62
    WuGhwbBZTI2cKOmi
    i23uv5sSinNpb3pK

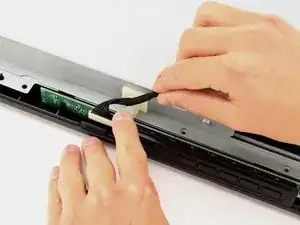

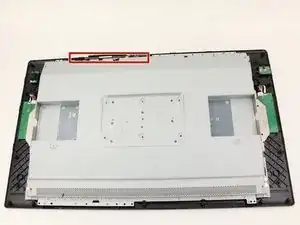

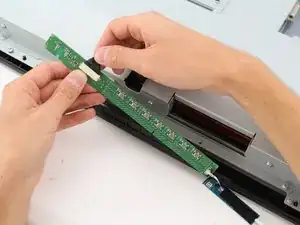

    • Remove the button wires from the support clip by pushing down on the clip.

    • Detach the button wires from the button board by pulling the button wires away from the board.

    • Place the button board back in to the device.

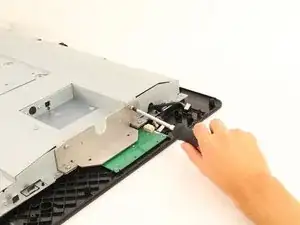

  9. p1BVHoG1rTbnVp3v
    p1BVHoG1rTbnVp3v
    FIrUdOnDfpKBLVyq
    JPTbYVgCQNIY1TIY

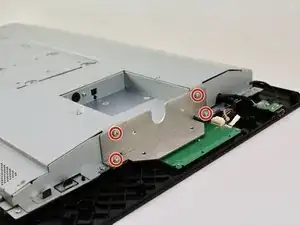

    • Remove the eight (four on each plate) 10.2mm Phillips #2 screws with locking washers from the metal mounting plates by rotating the screwdriver counterclockwise.

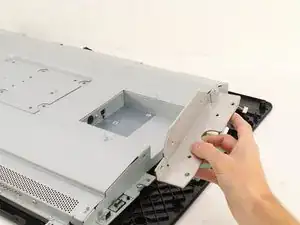

    • Remove the two metal mounting plates.

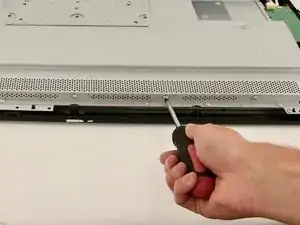

  10. d3mY54RaQItLZqCm
    d3mY54RaQItLZqCm
    iQwuSjQ6k54PIIfi
    W2fRwAdC1Yn41FV2

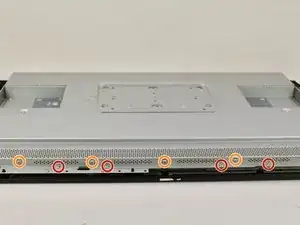

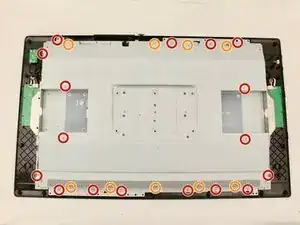

    • Remove the sixteen 8 mm Phillips #2 screws with flanges from the horizontal side of the plate by turning the screwdriver counterclockwise.

    • Remove the ten 8 mm Phillips #2 screws with flanges from the vertical sides of the plate by turning the screwdriver counterclockwise.

  11. XhDfliLxoJEaPRwt

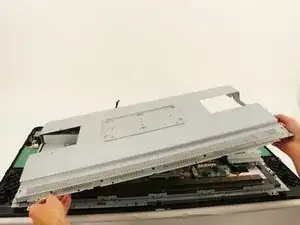

    • Remove the back metal plate by lifting up along one edge , then lifting the plate off and away from the device.

  12. qPhYxDBlopFUFRFO
    qPhYxDBlopFUFRFO
    RgqTGIVpL6EBcPhk

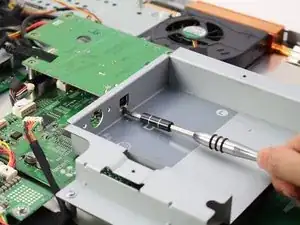

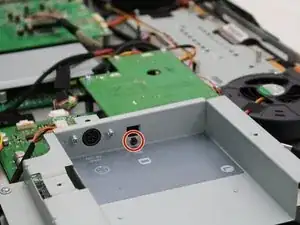

    • Remove the one 6.8mm Phillips #1 screw by turning the screwdriver counterclockwise.

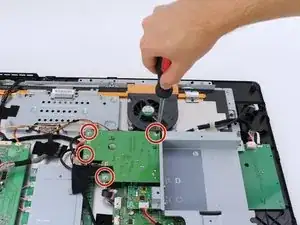

  13. H4WEhZV3dXjDBCxR
    • Remove the four 8mm Phillips #1 screws with flanges by turning the screwdriver counterclockwise.

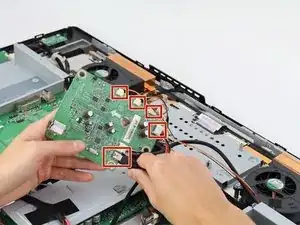

  14. 4RlQdaTc5KiHpMAC
    • Remove the five cables connected to the USB board by pinching near the connector and pulling the cables straight out.

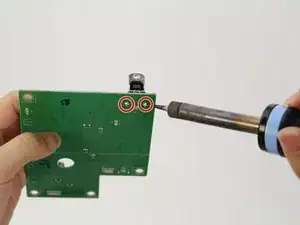

  15. JEl1iBfqcCeGACVg
    • Remove USB video port by desoldering at the connection points on the board.

    • iFixit has a soldering guide that you can find here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
