X-Street STR Viper Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide will involve the replacement of the motor that drives the X-Street SRT Viper. Reinstalling the motor will require you to re-solder the wires back on. This guide is slightly more difficult than the other guides. Follow and reach each step carefully.

Click here to purchase a replacement motor. Replacement Motor

  1. FanxDDAiMhIR6uxn

    • Remove the four 3 mm screws from the bottom panel using a 3 mm Philips #1 screwdriver.

  2. Y2W2JxuPMYQRNiQb

    • Use the 3 mm Philips #1 screwdriver to remove the three 3 mm screws that connect the front panel with the main underside panel. Also remove the 6 mm front panel screw.

    • Remove the bottom panel by pulling the plastic tabs from either side of the car.

  3. NJRTJXyTsyYEQRHA
    NJRTJXyTsyYEQRHA
    LVZDiOeLQxfIakTa

    • Remove the two 6 mm screws and the two 3 mm screws that connect the back panel to the main underside panel.

    • Remove the two 6 mm screws that connect the rear panel to the body of the car.

  4. cPCgiFwNyXRCxB61
    cPCgiFwNyXRCxB61
    GAImlJUtTcJYRlPS
    NfUAThNwBlOEPm3u

    • Remove the two front 6 mm screws and the two middle 6 mm screws.

    • Remove the main underside panel carefully. Excessive force could damage or disconnect the fragile wires attached to this piece.

    • Remove the car shell and place it on the left side of the car.

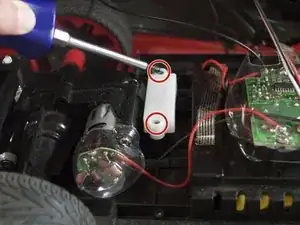

  5. 3OU2FEAWXuYyjnnE

    • White connection removal. Begin by removing the two 6mm Phillips #2 screws that hold down the white connection from the underside panel to the rear wheel and motor assembly.

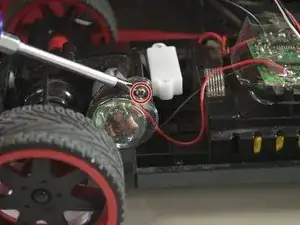

  6. JqOBIivt54mychGe

    • Disconnect battery before continuing this step to avoid shock.

    • Plastic safety cover removal. Remove plastic safety cover by removing the one 6mm Phillips #2 screw.

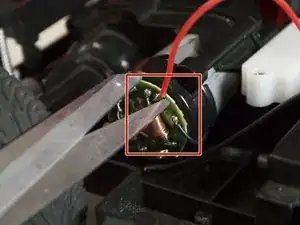

  7. RNIc2rdUVSXwK5qf

    • Desolder or cut the two wires that are connected to the motor. Use a soldering iron or wire cutters—not scissors as shown in the photo.

    • After completing this step, you will be able to remove the wheel and motor assembly from the car. There are two springs located in the rear of the car that could come loose if you do this step too quickly.

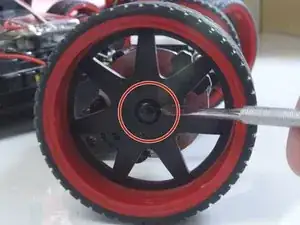

  8. XGFMNBCVXSbsA5PF
    XGFMNBCVXSbsA5PF

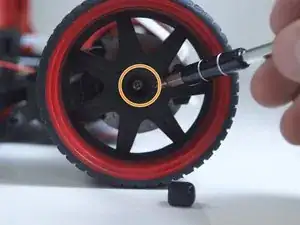

    5JxNyYWtfgZMKmpm

    • Remove the motor from the housing. Dislodge the left back wheel and motor assembly.

    • This step can be tricky because the left side wheel is in the way.

    • Remove the wheel hub cap with a pry tool.

    • Remove the wheel. Take out the one 3mm Phillips #2 screw that connects the wheel to the wheel and motor assembly

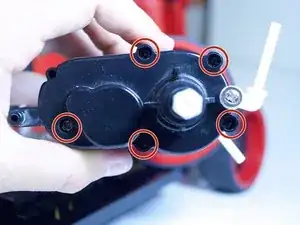

  9. wM2NmaQYWwpfWw2J

    • Remove the five 6mm Phillips #2 head screws from the left side of the motor housing.

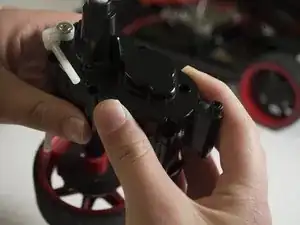

  10. LAe6uhfcfRWEgR4c
    LAe6uhfcfRWEgR4c
    VkN5yC3wgBgDJH2E

    • Pull apart the motor housing gently.

    • Keep in mind there are loose, fragile components inside.

  11. POIry6hnIpF4sq2C
    POIry6hnIpF4sq2C

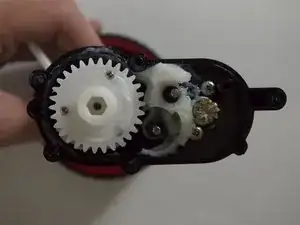

    FwlKCHThIm5Mkkl4

    • Before you attempt this step, keep in mind that these gears have grease on them.

    • Remove the two smaller gears by gently pulling them out of the motor housing.

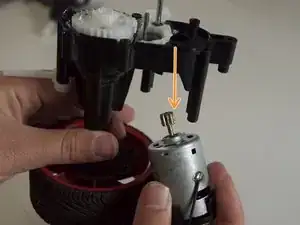

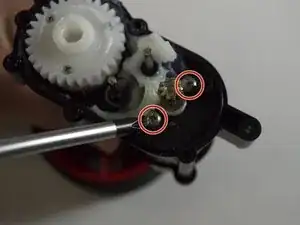

  12. xhNQ6cTNiCsbqMUu
    xhNQ6cTNiCsbqMUu
    QCS6luqa1CXePeWA

    • Remove the two 6mm Phillips #2 screws located on either side of the small brass gear.

    • After removing the screws, remove motor by pulling it down and out of the housing.

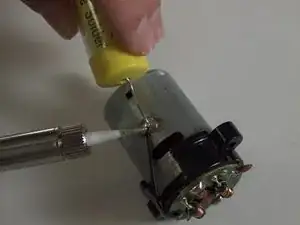

  13. r4jvadXL6DhYuPYr
    r4jvadXL6DhYuPYr
    HOghpNIQqBYnckDf

    • Detach the black wire that is attached to the outer shell of the motor itself. Use a soldering iron or wire cutters—not scissors as shown in photo.

    • Using these desoldering techniques, remove the solder.

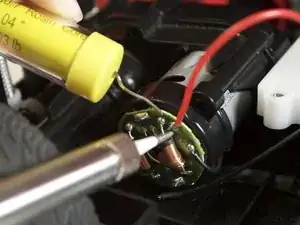

  14. iNYv3B3xcRWTNCBN

    • Pull apart the motor housing with care and clip off the wires that are soldered on to the motor.

    • Re-Solder the two wires back on to the motor when replaced. Refer to this How To Solder guide for more information.

    • Be sure to keep the circuit board and gear in order to re-attach them to the new motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
