X-Street STR Viper Remote Control Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

The remote control motherboard plays a major part in the connection between the remote control and the car. This guide steps you through replacing it.

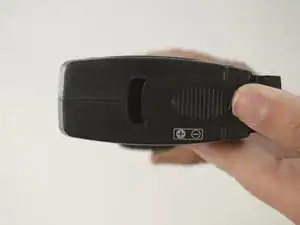

  1. CeF6ikVCc52JFDfX

    • Turn off the remote control. Flip power switch to the off position.

    • Remove the battery from bottom of the remote control for further safety measures.

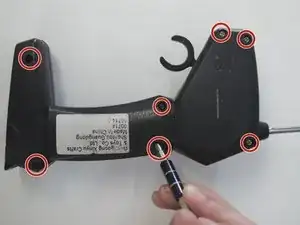

  2. GQdDQKR4PWvQy1fn

    • Remove all seven 3mm Phillips #2 screws from the underside panel.

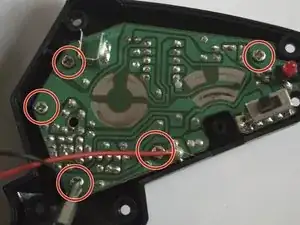

  3. vpvgh5tlr1TFH2JX

    • Remove five 3mm Phillips #2 screws that connect the motherboard to the back outer shell.

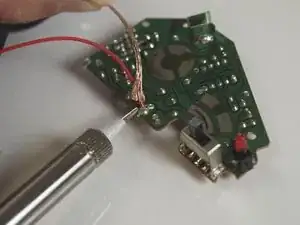

  4. 3kFa2NfeDypwLDDk

    • Detach the motherboard. Use soldering tools to desolder the red and black wires from the motherboard. To do this, refer to the how to solder/desolder page.

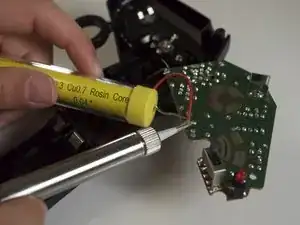

  5. qQNAoZ5qL1Evc25e

    • Replace the motherboard. Solder the wires back on to the new motherboard using the soldering kit. The black wire should be on the left and the red wire should be on the right.

Abschluss

To reassemble your device, follow these instructions in reverse order.
