Xbox One S Festplatte austauschen

Geschrieben von: Andrew
  • Kommentare: 34
Xbox One S Festplatte austauschen

Schwierigkeitsgrad

Mittel

Schritte

11

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Hier wird der Austausch der Festplatte gezeigt, entweder weil sie defekt ist, oder weil du mehr Speicherplatz benötigst.

  1. AQtIBB1ZGqHTvNg4

    • Lege die Xbox mit der Bodenseite nach oben.

  2. cI432T5plYCpwsEg

    • Fange auf der Rückseite des Gehäuses an, wo das Garantiesiegel klebt. Setze ein Plastiköffnungswerkzeug in den Spalt zwischen Boden und der Oberseite. Suche die Rasten, welche die Teile zusammenhalten.

    • Löse die Rasten mit dem Werkzeug. Am einfachsten geht es, wenn du das schwarze Gehäuse weg vom Boden hebelst.

    • Beim Öffnen hörst du klickende Geräusche. Es ist schon recht schwer den Boden abzunehmen.

    • Die Rasten können sogar abbrechen, sei vorsichtig.

    • Es ist empfehlenswert, auf der Rückseite zu beginnen, dort, wo das Garantiesiegel klebt. Löse die Clips auf der Rückseite. Arbeite dich dann an beiden Seiten nach vorne. Wenn die drei Seiten gelöst sind, fange auf der Vorderseite gegenüber des Sync-Buttons an. Sei vorsichtig und nimm dir Zeit, damit sich alles ohne Schäden löst.

    Be careful not to damage the pairing button on this part

    David -

    Important!!

    You've to start from the back corner where is the information label, because there is a main clip behind a warranty sticker

    Cristian Ramirez -

    They should add this to the guide! I didnt know that, and did some minor damage to the bottom piece where that main clip is.

    I dont mind because it's my own Xbox, but what if it belonged to a customer?

    Charles Jackson -

    They should add this to the guide! I didnt know that, and did some minor damage to the bottom piece where that main clip is.

    I dont mind because it's my own Xbox, but what if it belonged to a customer?

    💯% same opinion!

    profnussecke42o -

    This was hard! I tried using plastic pry tools, but they did not work. A metal tool did, but make sure to watch a video or two, to see what you actually are dealing with. After the videos it went quite smoothly.

    Peterdk -

    I legitimately cannot open the case where the warranty sticker is, ive tried everything, im resorting to a fork to try and open this

    Sohail ツShah -

  3. DGFtVxEdoZKRdLMd

    • Wenn alle Rasten frei sind kannst du den Boden vom Gehäuse lösen.

  4. GeIOPswgPOYsuGeJ
    GeIOPswgPOYsuGeJ
    uITOYPJDbxUgf4Lc

    • Drehe die sechs grünen 50 mm langen Torx T10 Schrauben vom Metallgehäuse heraus. Sie sind mit F1 bis F6 markiert.

  5. 3AbSAfsoTxUrMeTi
    3AbSAfsoTxUrMeTi
    wudY36aHJeyT6WjV

    • Trenne vorsichtig mit der geeigneten Methode das innere Gehäuse vom weißen Außengehäuse.

    • Drücke die weißen Seitenteile hinten nach außen, so dass sie sich vom I/O-Panel ablösen.

    Essential tip: be sure to slide the metal housing backward, away from the from of the case as pictured above, rather than upward. If not, you can easily break off the teeny momentary switches on the IR blaster board!

    Mark Ross -

    “appropriate method is not descriptive like Mr. Ross’s comment. The original poster should edit the description to ensure people do in fact remove the box from the case appropriately. I would also add arrows to the picture.

    Ryan A -

    ____________⬆️

    ↖️Yes! I see it the same way!↗️

    ⬅️Arrows are always a good thing!➡️

    ↙️Can't do anything wrong with them! ↘️

    ____________⬇️

    😅😅

    profnussecke42o -

  6. IIrck1QmH5CfYc1k

    • Lege das innere Gehäuse mit der Lüfterseite nach oben.

  7. 4PBmHOYGGLW51Ecb

    • Um an die inneren Bauteile heranzukommen, musst du die obere Abdeckungdes Gehäuses anheben. Sie sollte sich leicht abnehmen lassen.

  8. EFLSsRhhXsAEZnYh
    EFLSsRhhXsAEZnYh
    OjVWJsD26pdrus24

    • Drehe die Konsole herum . Entferne die beiden 10 mm langen Torx T10 Schrauben, markiert C3 und C4, auf der Rückseite der XBox One S, dann kannst du die Festplatte austauschen.

    • Jetzt kann das Kunststoffgehäuse um die Festplatte von der restlichen Konsole abgelöst werden.

    Some of my silver were gold screws, so just letting people know to look out for that!

    jovialkitten -

    The Torx screw circled on the left is actually C5

    Jaryn Wickman -

    I found the same. On my Xbox One S, it's C3 and C5 that hold in the hard drive caddy. C4 holds in the optical disk caddy.

    jamesr -

  9. X2IJJg3NqtsnAcbY
    X2IJJg3NqtsnAcbY
    NAHJXCj1SgvQNjOx
    3fEHBmUuTGRL3omb

    • Löse vorsichtig die beiden Plastikstecker der Festplattenkabel auf der Hauptplatine.

    Do not disconnect the connector in the second image! There are tiny prongs that bend easily and if bent just a tad bit they will break off. I had first hand experience with this and I ended up breaking my Xbox because I could not put that cable back on.

    [deleted] -

    Do not remove the cable!!!! You can change while the cables are plugged. It took 2 hours trying to put mm precisely all the little pins because of the removal of the cables.

    Please update the post, I could easily end up as the Aaron, breaking the XBOX completly.

    Botond Kopacz -

    Yes, this has also happened to me the connectors had broken and the pins bent and snapped off.

    Samuel Garbutt -

  10. yweA6WNjkTivqF6H

    • Entferne die vier schwarzen 10 mm Torx T10 Schrauben von der schwarzen Plastikhalterung.

  11. Q2XSiAcmeTXNDWKc
    Q2XSiAcmeTXNDWKc
    fmV1xesqQUpDylqn

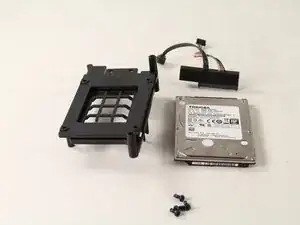

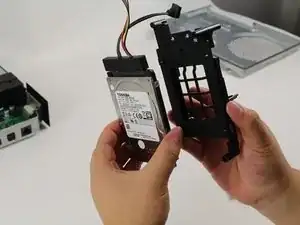

    • Löse die Halterung und die Anschlüsse von der Festplatte.

    • Jetzt ist die Festplatte draußen, du kannst sie austauschen und die Xbox One S wieder zusammenbauen. Folge dazu den Schritten der Anleitung in umgekehrter Reihenfolge.

    do you need to download anything on the hdd before you put it in or can you just put it straight in

    Jamie Amor -

    I really wish there was an answer to this question. Im also wondering

    Steven Estep -

    Yes to do that follow the Gide on the Xbox one s repair Gide.

    Seani M -

    You will need to copy the is or use a sub device with the is on it if you plug in the new had it should show you what you need to do

    Ahmad Bilal -

    Well they have a full Gide on the Xbox one s repair page

    Seani M -

Abschluss

Um dein Gerät wieder zusammenzusetzen folge den Schritten in umgekehrter Reihenfolge.
