Xbox One Wireless Controller Vibrationsmotoren Austausch

Geschrieben von: Liam Gow
  • Kommentare: 32
Xbox One Wireless Controller Vibrationsmotoren Austausch

Schwierigkeitsgrad

Schwierig

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Diese Anleitung zeigt dir, wie du die Vibrationsmotoren in den Griffen austauschen kannst.

  1. nCPWIVIPPnPioQek

    • Entferne den Akkudeckel

    • Entnimm den Akku

  2. BCoOrGwESawovJpX
    BCoOrGwESawovJpX
    CYTch3arFkuHOaol

    • Im Foto ist ein Metallspudger zu sehen. Wir empfehlen einen Spudger aus Plastik.

    • Nimm den Controller fest in die Hand um die Seitenteile abzunehmen. Heble mit einem Spudger in die Naht zwischen Front- und Seitenteil.

    • Ziehe das Seitenteil ab indem du den Spudger vor und zurück bewegst. Das musst du entlang der ganzen Naht durchführen.

    Start prying the side plate off underneath the trigger, this makes it easier to disconnect the other clips connecting the side plate to the backplate.

    Brandon -

    One you take it off, is it possible to click it back in?

    Aiden Bear -

    As long as you don’t exceed the couple tons you need to take it off you should be able to put it back.

    Brandon -

    I don’t have a squdger

    TimidFerret4982 Gaming -

    getting those handles back on seems impossible, they just dont fit as well, a gap remains even after snapping into place.

    Dont think ill be doing this in the future

    Spoutin Wyze -

    edit: wiggled the bo9ttom middlewith the handles off and somethign finally “clicked” into place for that extra 1/4 mm for the down arrow on my D-Pad to click back up into place!.

    Spoutin Wyze -

  3. NIQhMF4yRuvR3EOl
    NIQhMF4yRuvR3EOl
    JPprWqFDRTUcXoCS

    • Hinter einem Aufkleber in der Mitte des Controllers ist eine Schraube verborgen.

    • Mit einem Schraubendreher kannst du ein Loch direkt in die Mitte des Aufklebers stoßen.

    • Wenn du den Aufkleber nicht verletzen willst kannst du ihn auch vorsichtig anheben.

    • Entferne die fünf 10 mm Schrauben auf der Rückseite mit einem T8 Schrauber.

    i damaged my screws. how do i get the screws out?

    tenzin -

    wait. i just watched a video guide on ifixit's youtube channel about damaged screws. i'll try those methods.

    tenzin -

    It's a t8 or t9 security bit btw, I got the top two out with a regular T8, but the bottom two and middle needed a T9 Security bit.

    David Loper -

    All five faceplate/backplate screws in the controller I disassembled were T8 security fasteners.

    John Dziedzic -

    Am I doing something wrong because I got the tool it said I needed and got the middle screw out but the others have a bump or something in the center of the screw and it won't fit.

    kolton77 -

    The T8 is only good for the middle screw on my One S controller. The others require something bigger

    Matej Skelo -

    These requires SECURITY Torx bits (they have a cannulated hole in the driver). I don't believe the iFixIt branded driver is cannulated but you can buy a set of bits from DeWalt DWAX200 which is overkill but has what you need.

    jhighsmith -

    The driver that iFixIt sells is cannulated.

    jhighsmith -

    where do you get this dumb ass screw driver

    Jake Zweier -

    iFixit Store #IF145-027-3

    VauWeh -

    You can bypass it with a 1.5mm flathead.

    Marianne Sandling -

    thank you for this. worked for me

    Mr Anderson (Evolluisionist) -

    These screws required a T10, not T8.

    Armand -

    TR9. A $10 kit from Walmart has the bit/driver in it and extra goodies to make life simple.

    Matt Martin -

    As weird as it sounds, the top 2 came out for me with a flathead- but the bottom two and the middle one wont

    macybrooksevans -

    If you damage the middle part of the screws you can still take it out with the same screwdriver.

    Kev God -

    Thank-You :)

    Isaiah -

    needed a T8H, not easy to see.

    on a grey green xbox one controller

    Michael -

    You need a T8 and the kit is not $10 it’s $13.88 Hyper Tough Electronic Kit. In the hardware section at WalMart it a T8 because I tried everything and only a T8 fit it like a magnet. And the dumbass that wrote the article there is only 1 freaking screw.

    Bear Darazs -

  4. CN1rEMvQC3myRLyq

    • Nimm die Rückseite ab.

  5. hWBUR3YZiAAiU3As

    • Entferne die Frontplatte.

  6. T6tOjmvFQoxRHnGM
    T6tOjmvFQoxRHnGM
    wGUx4uLKIcmWkpDa

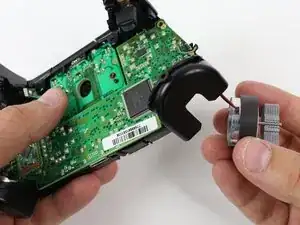

    • Du kannst die Vibrationsmotoren frei aus ihren Befestigungen hängen lassen.

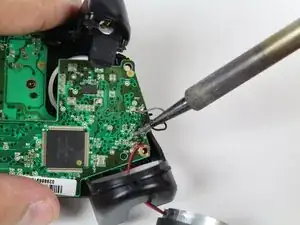

    • Drücke die roten und schwarzen Drähte auf der oberen Platine nieder. Löte sie dann ab.

    • Sei beim Löten vorsichtig, beschädige nichts auf der Platine und verbrenne dich nicht.

    • Wir haben eine Information zum Löten.

  7. BbP5O2UFaZ3trAvH

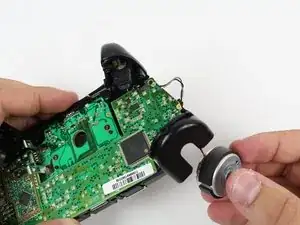

    • Entferne die Vibrationsmotoren.

Abschluss

Um dein Gerät wieder zusammen zu setzen folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Liam Gow

Mitglied seit: 22/01/15

5161 Reputation

7 Kommentare

Hey I let my motor hang off when I was taking apart my controller and it tore off the motherboard on one side of my controller, is there a way to repair that?

Mark -

Hi Mark,

Assuming that nothing beyond some solder came off with the wires, you can try resoldering the motor's wires back into place. Make sure to check exactly where they are meant to connect, and not to accidentally solder anything else on the board.

Liam Gow -

What is the positive wire for the rumble pads. I think it might be the reverse of the normall.

metalcka -

It would be nice to show the positioning of the motors in the frame since they are not symmetrical. The left one has a larger weight.

codekaizen -

Where can I buy these rumble motors?

Steve Pepe -

I'm had to de remove the rumble motors from the board temporarily. I didn't take a picture of what it looked like before I de soldered the wires. I know the pads they need to be re soldered to. But don't know in what order. Is there any pictures you know of on how these controllers are wired so I don't solder them into the wrong spot?

Matthew Glenn (Matt) -

Will it cause issues to simply remove the rumble motors and not reinstall them? I need one controller that cannot vibrate. It'll only be used for a single game that regardless of the settings used (including any special things in an elite controller) it will still f'n vibrate. If it will not cause issued I will mod one of my other controllers.

Thanks in advance

Eliza -
