Xelio P900A-BK Battery Replacement

Geschrieben von: Marcus Nelson
  • Kommentare: 1
Xelio P900A-BK Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

7 - 10 Minuten

Einleitung

Use this guide to remove and replace a dead battery in the Xelio P900A-BK tablet.

  1. CNCBxANNkmqUCcc1

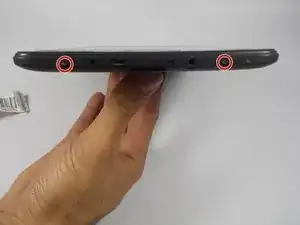

    • Using a #00 Phillips head screwdriver, remove the two 5.4mm bottom screws.

  2. UWumKpjR5PQoeUWI
    UWumKpjR5PQoeUWI
    IypLgaIjLWEAcOJl

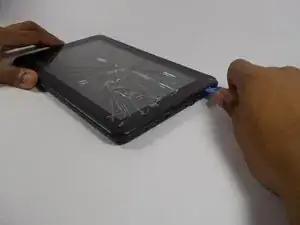

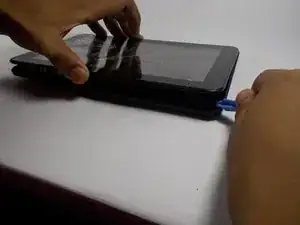

    • Insert a plastic opening tool between the screen and the rear case and gently work your way around the tablet.

  3. MYNwxIFb5V5wOTcI

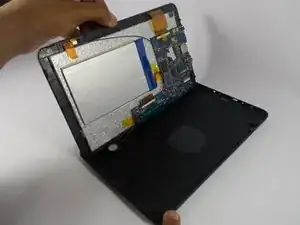

    • Using the plastic opening tool or your fingers, gently pry the pieces of the tablet apart. You will hear the plastic latches pop free.

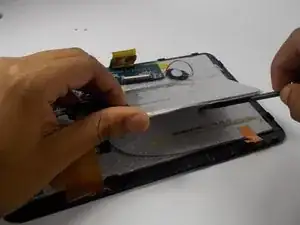

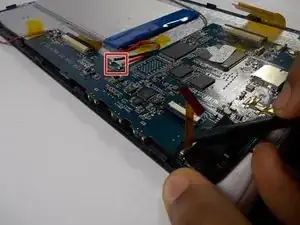

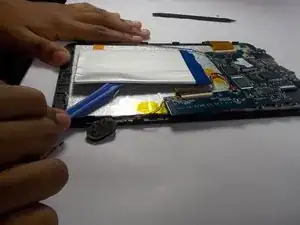

  4. ZIKBQmOUwfbAuTcw
    ZIKBQmOUwfbAuTcw
    g5DZwL1lyJrBmGT1
    WRQYj5RKJChDSxRN

  5. 3dTKL6RYHv2ISEDp
    3dTKL6RYHv2ISEDp
    B3vsJFKduASTDpGy

    • Carefully insert the flat end of a nylon spudger under the battery, and pry the battery up and away from the tablet casing.

    • A small amount of heat may be required to safely remove the battery from the adhesive underneath. Use an iOpener or heat gun to soften the adhesive.

    • Do not bend or puncture the battery.

    • Place the new battery in the same place as the old one, making sure it is oriented the same way as the old one was.

Abschluss

To reassemble your device, follow these instructions in reverse order.
