Xgody D300 Camera Replacement

Geschrieben von: Kiara Richardson
  • Kommentare: 0
Xgody D300 Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

For problems pertaining to poor camera quality, please read this guide. This guide is for replacing the back-facing Camera on the Xgody D300. Please follow the steps carefully. By the end, your phone should be working as it normally should.

  1. bomTeE3LYcotJgsP

    • Lay the phone on a flat surface so the back is facing upwards.

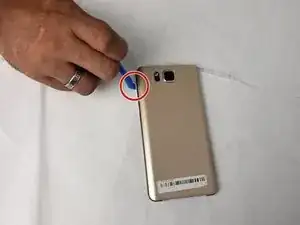

  2. pJWKdRFbLXqmskdm

    • Insert the pry tool into the seam and pry the back cover of the case along the seam until the cover is free of the case.

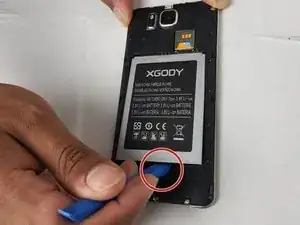

  3. VeR4c4Q6GqxXVfi3
    VeR4c4Q6GqxXVfi3
    1vQFQNDMCdUVnAZq

    • Remove the battery using your hands or the plastic opening tool.

  4. td2DojfTyTGNaylT
    td2DojfTyTGNaylT

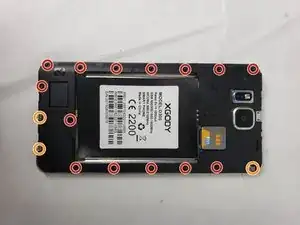

    AFJKhLEWjKhlnipK

    • Using the Phillips #00 screwdriver, remove the screws that hold the protective housing to the smartphone; there should be 14 screws with a length of 3mm and one screw with a length of 6mm.

    • Three of the screws will not come loose from the protective housing and can be identified by a metal plate that is underneath them. In total there is 18.

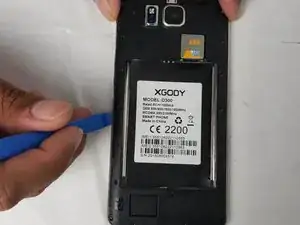

  5. GG2bNgXYXodrcV5u
    GG2bNgXYXodrcV5u
    6MR6JHBWPVNw4Mi5

    • Lift the housing along the edges using the opening tool and tweezers.

    • There will be a sticky pad that holds the housing to the smartphone.

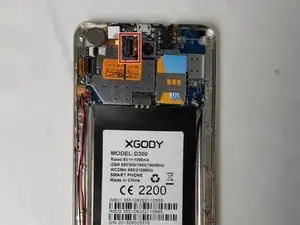

  6. QFlZFwCO2DMHo2v1
    QFlZFwCO2DMHo2v1

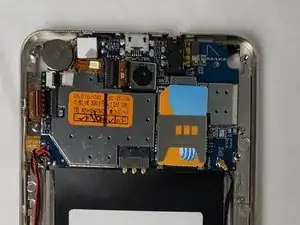

    xsPMhVHvflPEHIao
    xadSYaRQ5qRugQIT

    • Disconnect the camera by grabbing the connector with tweezers and firmly pull on the connector until it pops out.

    • The camera will have a sticky pad on it like the protective housing did and will take a firm tug to come free of the smartphone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
