Xiaomi Poco F3 Rear Glass Replacement

Geschrieben von: Adriana Zwink
  • Kommentare: 1
Xiaomi Poco F3 Rear Glass Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to replace the rear glass on your Xiaomi Poco F3.

You'll need replacement adhesive in order to complete this repair.

  1. jmXNfxGvVYm1OJZ3

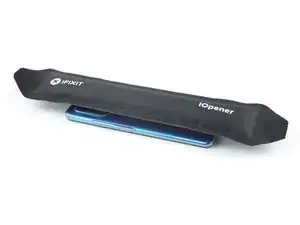

    • Prepare an iOpener and apply it to the rear glass for at least two minutes to loosen the adhesive underneath.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the screen and internal battery are both susceptible to heat damage.

  2. xMGNQXeidNTbWlwD
    xMGNQXeidNTbWlwD
    MEewbfsMyB1NCrkd

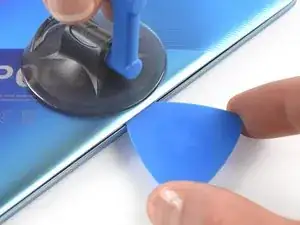

    • Secure a suction handle to the right edge of the rear glass, as close to the edge as possible.

    • If the rear glass is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

    • Lift the rear glass with the suction handle to create a small gap between the rear glass and the frame.

    • In case you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.

    • Insert an opening pick into the gap you created.

  3. YEkjkS6yPJUJZRvG
    YEkjkS6yPJUJZRvG
    QPQ3KSoOtLjwo4wF

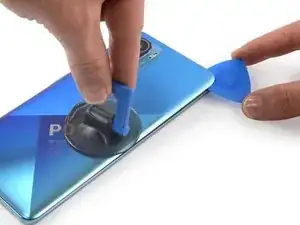

    • Slide the opening pick to the top right corner to slice the adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  4. clBHRbyRZOZ6FeGf
    clBHRbyRZOZ6FeGf
    G2DcwGJEwytQYLfN
    Ug2RTKADrfRgOQhM

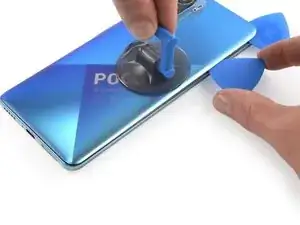

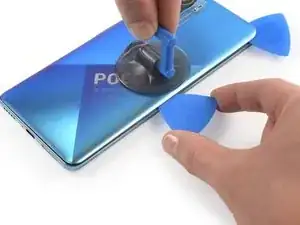

    • Insert a second opening pick at the top right corner.

    • Slide the opening pick to the bottom right corner to slice the adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  5. cFk4poZAHGXx6AyG
    cFk4poZAHGXx6AyG
    BM1qwQZPATUVZKRh

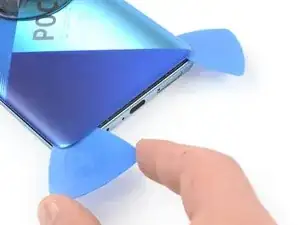

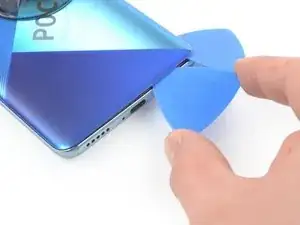

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener for one to two minutes to reheat it.

    • Insert a third opening pick in the bottom right corner.

    • Slide the opening pick along the bottom edge of your phone to slice the adhesive.

    • Leave the opening pick in the bottom left corner to prevent the adhesive from resealing.

  6. EYsDnJy4jfgy3eZc
    EYsDnJy4jfgy3eZc
    uumDXVMRABDopeIp
    BNukG3AEt3tSytJY

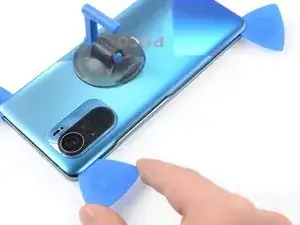

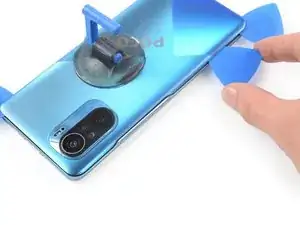

    • Insert a fourth opening pick in the bottom left corner of your phone.

    • Slide the opening pick along the left edge to slice the adhesive.

    • Leave the opening pick in the top left corner to prevent the adhesive from resealing.

  7. JqAPFDpZ1P1KCF6N
    JqAPFDpZ1P1KCF6N
    2VIbvM3x6bxc6sij

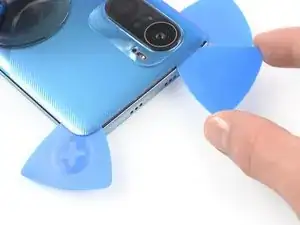

    • Insert a fifth opening pick underneath the top left corner.

    • Slide the opening pick along the top edge of the rear glass to slice the remaining adhesive.

  8. HUIMlPiajTLHiLnW

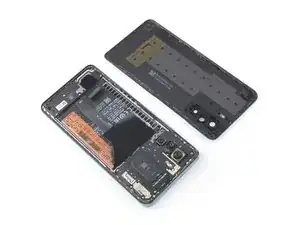

    • Remove the rear glass.

    • Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

    • Secure the new rear glass with pre-cut adhesive or double-sided adhesive tape. After installing the rear glass, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

    Can someone please tell me what the little circular grill next to the cameras is? Ive made tests for all the sensors and I don't think it's a speaker grill.

    Nikola Jovancevski -

Abschluss

To reassemble your device, follow these instructions in reverse order.
