Einleitung
This guide will show you how to access and remove the midframe of your ZTE Maven 2 (Model Z831). The midframe sits on top of the motherboard and screen and protects these components from damage. You may need to remove the motherboard to access these components.
-
-

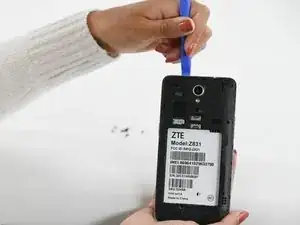

Pry off the back cover by inserting an opening tool into the small space on the bottom left between the phone's cover and body.
-
Work your way around the phone with an opening pick to loosen the rest of the back cover.
-
Remove the cover.
-
-
-
Push in and then up on the bottom of the battery to free it from its compartment.
-

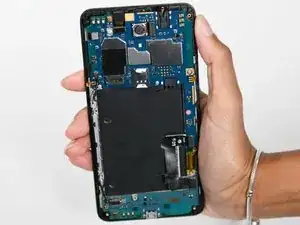

Pull the battery out.
-
-
-

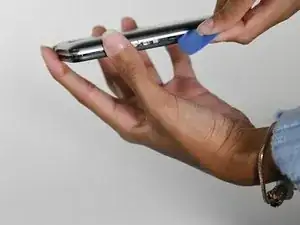

Wedge the opening tool between the front and side panel to create a gap.
-
Slide the opening pick around the device to detach the midframe.
-
To reassemble your device, follow these instructions in reverse order.
