ZTE Quest n817 Power/Volume Button Replacement

Geschrieben von: Eric Loureiro
  • Kommentare: 0
ZTE Quest n817 Power/Volume Button Replacement

Schwierigkeitsgrad

Very difficult

Schritte

9

Zeitaufwand

1 Stunde

Einleitung

If your ZTE Quest's power and/or volume buttons aren't working properly then it may be necessary to replace them. This guide requires extensive soldering knowledge and should really only be attempted as a last resort.

  1. KMxZYAPOXcjxiC1n
    KMxZYAPOXcjxiC1n
    ZG4EZO2IiwvOJqgw
    JIC3n2c4OtZ1NUOL

    • Ensure that the phone is turned off before starting.

    • Orient the device so that the inset on the right side of the device is facing you.

    • Insert the spudger into the inset and carefully remove the back panel.

  2. JiYp4OVJ6rCXP3tY
    JiYp4OVJ6rCXP3tY
    jXX6k6jxNaOTg3Yg

    • Use the ribbon to remove the exposed battery.

  3. eUcYmdtgncEyYHCZ

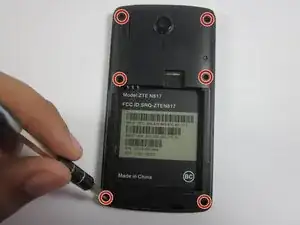

    • Use the JIS #000 screwdriver to remove the six 3.0mm screws placed in the back of the ZTE Quest.

  4. TYFuGWQuddEVNDNt

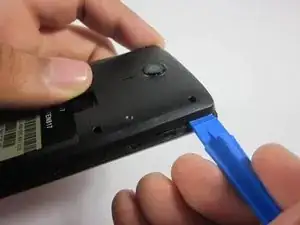

    • Carefully pry open the back panel with the plastic opening tool.

  5. PZfhw4wQUPlB1FkV

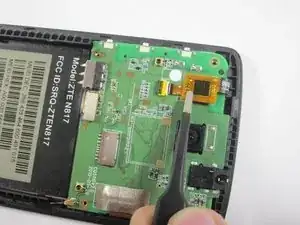

    • Use a pair of tweezers to gently disconnect the ribbon cable connector from its socket.

  6. wIaZUZ3Ng2N2ewKs

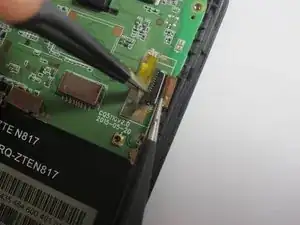

    • Pull back the tape encasing the brown ribbon cable connector.

    • Remove the ribbon cable from its socket.

  7. AFRdSOEvJSBqRySZ

    • Unplug the flat-top connector by using a pair of tweezers to pry up each side before removing the connector from its socket.

  8. HPrQJGTe2xPVPNBU
    HPrQJGTe2xPVPNBU
    4nTQB1TlX3sjQT6w

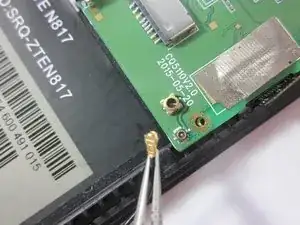

    • Disconnect the coaxial connector in the bottom right corner of the motherboard.

  9. 4PrAjrpfmJMl2D4H

    • Each of these buttons can be removed using micro-soldering techniques around either side of the button.

    • Instructions for how to do so can be found at iFixit's How to Solder and Desolder Connections guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
