If your ZTE Tempo smartphone (model 9131) isn’t producing clear audio—distorted, intermittent, or no sound—through headphones or auxiliary speakers, use this guide to replace the headphone port (also known as a jack).
The headphone port transmits audio to external speakers through an auxiliary cord. A faulty headphone port will transmit distorted audio or no audio at all.
Before using this guide, inspect the headphone port for debris that may be interfering with sound quality. Typically, a small buildup of dust can be removed using an ESD-safe brush or small dust blower. Be sure to test a few sets of headphones or auxiliary cords with your device to confirm that the faulty part is coming from the ZTE Tempo’s headphone port.
Step 5 requires you to remove the circuit board from the device. From there, you will need to desolder the surface-mounted headphone jack and solder a new one in place.
Before beginning, make sure to power off your phone completely and disconnect from any external power source.
-
-
Pry open the back case to get to the back cover.
-

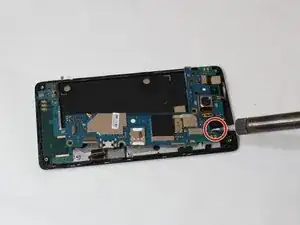

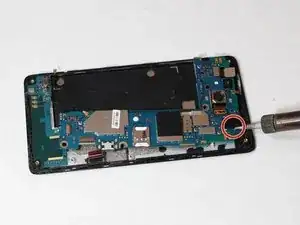

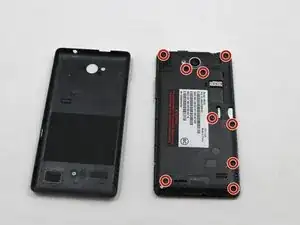

Remove eight 5mm screws with a PH0 screw.
-

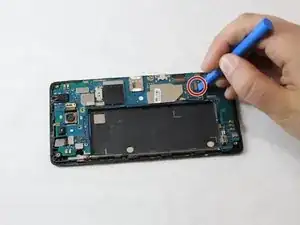

Pry open the back cover with a plastic opening tool.
-

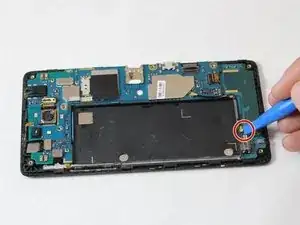

Slide the plastic opening tool alongside the side seam twisting your hand forcefully to open the back cover.
-
Note: Pry open by finding an edge and forcing it open with the plastic opening tool.
-
-
-

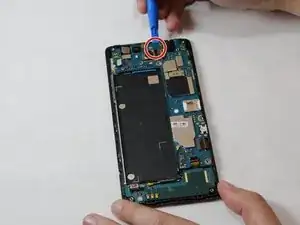

Push up with the plastic opening tool to remove the motherboard.
-

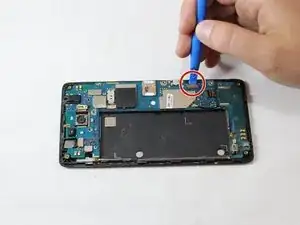

Slide the plastic opening tool alongside the side seam twisting your hand forcefully to open the motherboard.
-
-
-

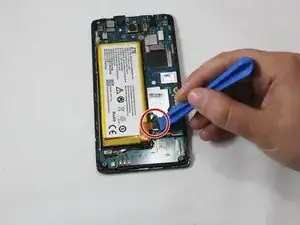

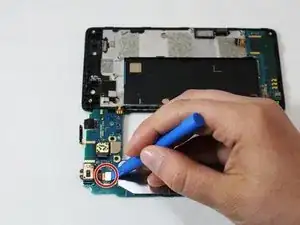

Unplug the wire by pushing up with the plastic opening tool in the back of the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
