Zeepad 7.0 Screen Replacement

Geschrieben von: Harry Winter
  • Kommentare: 2
Zeepad 7.0 Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will be instructing someone on how to access and replace the screen. A few tools will be used to open the device, the wires connecting to the motherboard from the LED screen will be cut, and now the screen can be removed from the outer casing.

  1. 3BLcPoesSU2RCsbV
    3BLcPoesSU2RCsbV
    dOSewfc4lHUPopH4

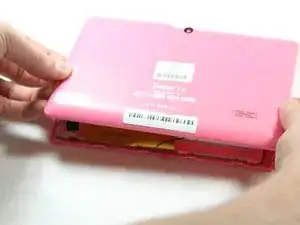

    • Power off the device and keep it unplugged.

    • Open the case using a plastic opening tool around the edges. Slightly pull the cover off.

    • Do not completely remove back casing because there is a speaker attached to the back.

  2. AuYHYrcd5ZkG2WLO

    • Using the Phillips Head 0 bit, carefully unscrew the three 3.5mm screws holding the motherboard in place on to the back of the screen.

  3. 135tqSsbgT6VCCTJ
    135tqSsbgT6VCCTJ
    KAZDNYJJ5iZoxkWN

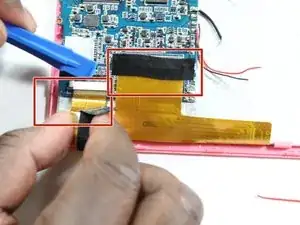

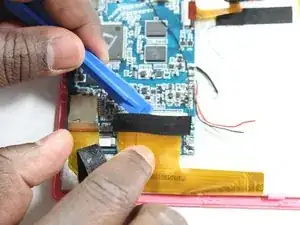

    • Disconnect the two ribbon cables between the screen and the motherboard.

    • Be careful not to rip out the ribbon cables or you can harm the ports.

  4. kVyfYJtBa2gAynuD

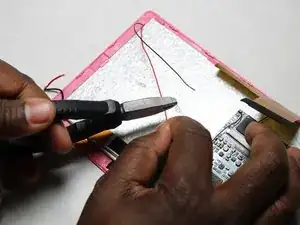

    • Cut the power cables connecting between the screen and the motherboard. There should be a red and black cable each.

  5. DLoGOXMSeNk4BAqs
    DLoGOXMSeNk4BAqs
    THV1gDPiDtfTpVqH

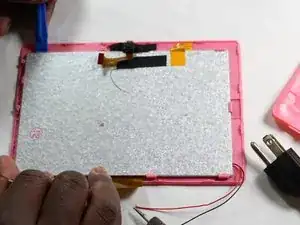

    • Separate the front screen protector from the lcd screen. There are clamps holding the screen in place.

  6. nZpo1PQqmDV2NosD
    nZpo1PQqmDV2NosD
    hZTRvMtXkSjHEny6
    gWqArBhSE1jJiVy2

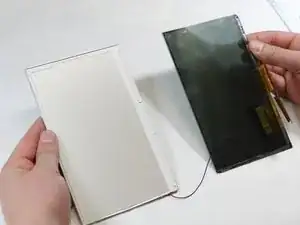

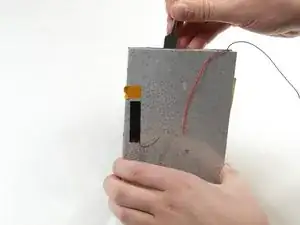

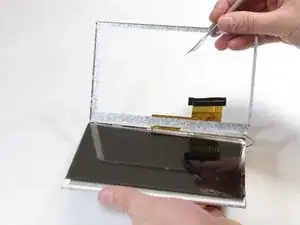

    • Separate the LCD screen from the metal protecting case with the metal spudger.

  7. nXE3wn4ZTbCaGrnM
    nXE3wn4ZTbCaGrnM
    2vOuNQHIbHEJaaFO
    FCYOImvhOHTCZdRl

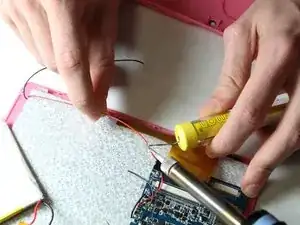

    • After creating space to work, warm up a soldering iron.

    • Apply heat onto the solder over the corresponding cut wires to the new screen wires.

    • Wie man Lötverbindungen herstellt und entlötet

    • The soldering iron will be extremely hot. Keep out of direct contact to other wires, the motherboard, and especially the battery.

    • Keep out of reach of children.

Abschluss

To reassemble your device, follow these instructions in order.
