Zenbre SoundBank Z3 Control Interface Circuit Board Replacement

Geschrieben von: Cherian Thomas
  • Kommentare: 1
Zenbre SoundBank Z3 Control Interface Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

Keine Schätzung

Einleitung

If your Zenbre SoundBank Z3 speaker isn't working properly and is not responding to your touch, then there is most likely an issue with the internal circuit board that connects the buttons to the motherboard. The motherboard is custom to the device, so you will need to get a replacement from a similar device in order to repair your speaker.

  1. bEs3xohC5XrWFdWu
    bEs3xohC5XrWFdWu
    hAmGA5BlfpGjYFAH

    • Power off the SoundBank Z3.

    • Turn over the device.

    • Peel the silicone feet up to remove.

    • No extra adhesive is needed to reapply the feet as long as the sticky side is not touched.

  2. nRARI5bJccdKDNoi

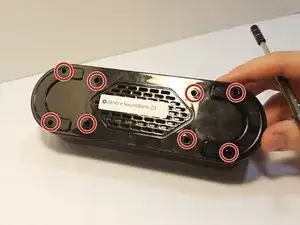

    • Remove all eight of the 11 mm Phillips screws from the bottom of the device.

  3. p4IaEujtU3SgmC4n
    p4IaEujtU3SgmC4n
    hhgRvEFjvbQS5YQe

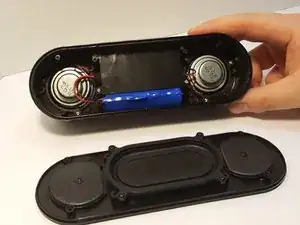

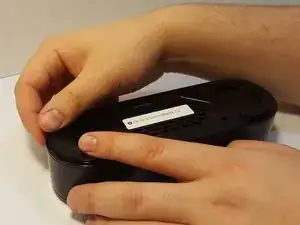

    • Remove the bottom panel speaker using an iFixit opening tool.

  4. VB6bgcVJleVpErYZ
    VB6bgcVJleVpErYZ
    To1RWLR6xbfBNBYy
    3U4cLrUYKNeSaTxM

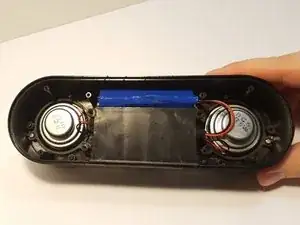

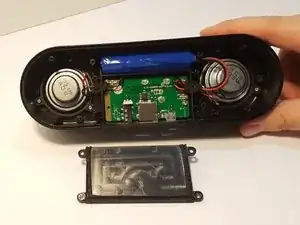

    • Remove the four 4.5 mm silver Phillips screws that secure the plastic panel covering the motherboard.

    • Remove the plastic panel.

  5. H5ToeZhjkjmQhXW1
    H5ToeZhjkjmQhXW1
    w3rpUcUkOK4JXcv2

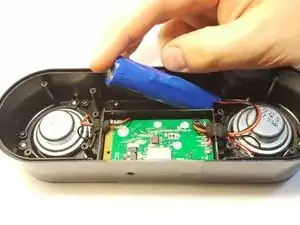

    • Remove the battery from the holder. It may be difficult the first time.

    • Use a spudger between the battery and speaker wall to loosen it from its surroundings.

    • If the battery is punctured, leaking, or bloated/puffy, it may be hazardous and should be properly disposed of.

  6. tMacUXGOPLAqdlJj
    tMacUXGOPLAqdlJj
    ggJjK5sCBNIQobBc

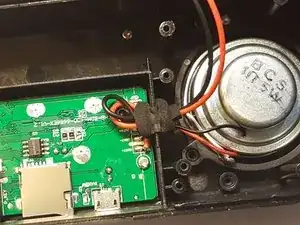

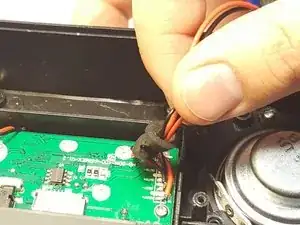

    • Remove the pressure-fitted foam from the slot by hand.

    • Unravel and remove foam from the wires.

    • When reassembling, the foam can be re-wrapped if care is taken when handling it.

  7. kFBHUrwlPcZaFt34

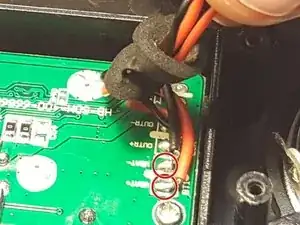

    • Using a soldering iron, remove the leads, separating the battery from motherboard.

    • Follow this guide to help you remove the wires from the motherboard if you are unfamiliar with soldering.

    where do es one find replacement battery. size, voltage, etc??

    tfilm@sbcglobal.net -

  8. LBoQHsvAEkUPSDyr
    LBoQHsvAEkUPSDyr
    khsfxRw1C4gRGAcG

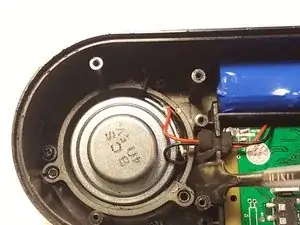

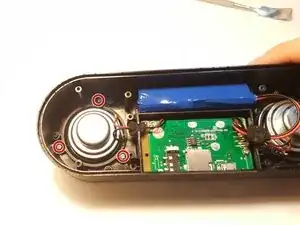

    • Remove the three screws that are holding the speaker down.

    • Be careful not to rip out the speaker while taking out the screws.

  9. fcFDTZUL21ZRXePR
    fcFDTZUL21ZRXePR
    MLSEalbfcmghAm5D

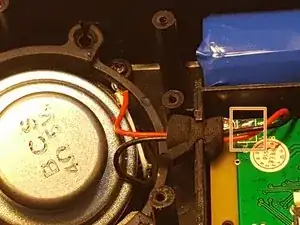

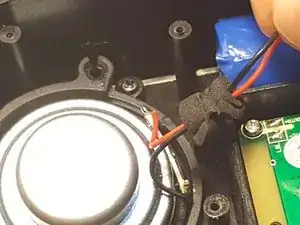

    • Desolder the speaker joints from the motherboard. Follow this How To Solder guide for help with desoldering.

  10. OJwxXEUVUwjkLwPc
    OJwxXEUVUwjkLwPc
    1M3QmbBwahureppD

    • Remove the speaker from the motherboard.

    • Remove the speaker ring.

    • Be careful not to remove other components in the speaker.

    • Repeat Steps 5-7 with the other speaker.

  11. Y3qWT31sIGI64hyF
    Y3qWT31sIGI64hyF
    MlJ6bHk43pJDbKBI

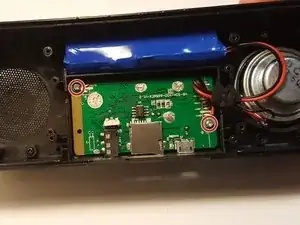

    • Remove the two 4.5 mm Phillips silver screws holding down the motherboard.

    • Note the ribbon that connects the motherboard to the control interface. Be careful with this while removing the motherboard, as it can tear easily.

    • Lift the motherboard out of its housing.

  12. rAC1GEvOAOY6V2vV
    rAC1GEvOAOY6V2vV
    3qpJITY1XrOoIre4

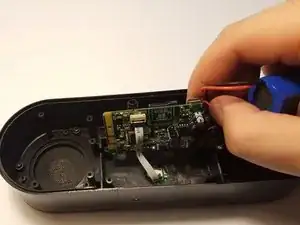

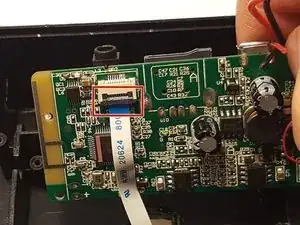

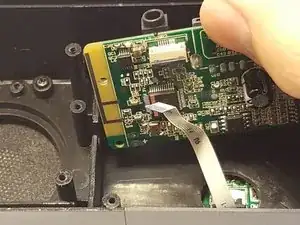

    • Use an iFixit opening tool to lift up the ribbon connector.

    • Slide the ribbon cable out of its connector.

  13. iQCJDU5oDSKwhkry

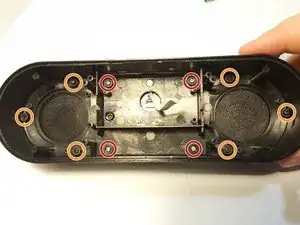

    • Remove the four 4.5 mm Phillips silver screws.

    • Remove the six 7 mm Phillips black screws.

  14. V5AZTx4UAtRNF3Dk
    V5AZTx4UAtRNF3Dk
    q6gbHZGsBomYRemT
    jqnmhUEHLEdCNEUg

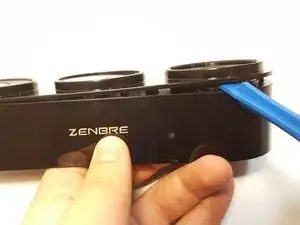

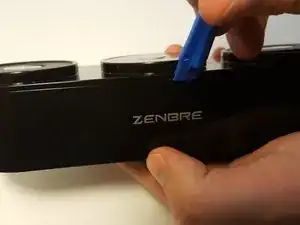

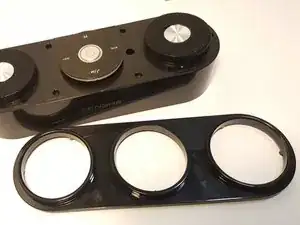

    • Remove the top plastic cover by prying around the edges with an iFixit opening tool.

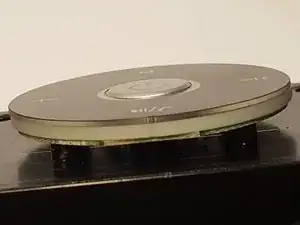

  15. tuYFbZGW6PE11Mrr
    tuYFbZGW6PE11Mrr
    qiUoARGLQoLvPrVj
    4ighABAmL3w3HDK2

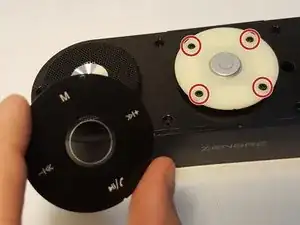

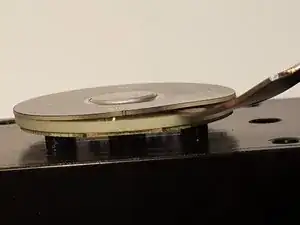

    • Carefully remove the round black cover of the circuit board by using a spudger to pry it upward.

    • When working with electronics, it's important to choose a tool that is electrostatic discharge (ESD) safe in order to avoid accidental damage to the device. A metal spudger is great when you need serious prying power, but a regular black nylon spudger or a plastic tool should be used whenever possible.

    • Handle the cover plate carefully. Just like with the feet from before, it can be replaced if care is used when handling it.

    • Remove the four screws.

  16. cUVHBa6BVQ1MohHQ
    cUVHBa6BVQ1MohHQ
    MTiZ3TqeLdluJxMV

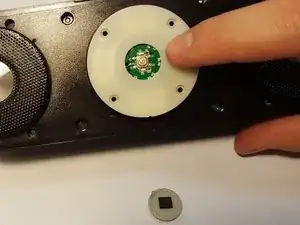

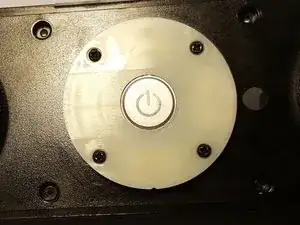

    • Pick up the center power button and remove it. Place it in a safe location.

    • When you pick up the power button, the board will come right off. Be sure not to lose it.

  17. DOMqdRG5Puvg5jdU
    DOMqdRG5Puvg5jdU
    wBLeQj2BBceQYiVZ
    EaJjxPCCPDMJpw3u

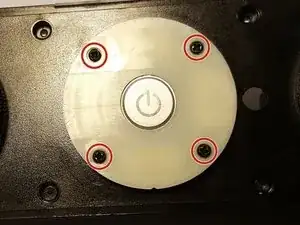

    • Remove these four 7 mm black screws.

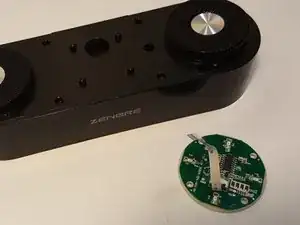

    • This will free the circuit board, which can now be lifted away from the housing.

    • If you wish to remove the ribbon here, use the same method used to remove the ribbon from the motherboard earlier in this guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
