Zoomer Dino Boomer Main Circuit Board Replacement

Geschrieben von: Desiree DesJardins
  • Kommentare: 4
Zoomer Dino Boomer Main Circuit Board Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

20 - 35 Minuten

Einleitung

This guide shows how to safely separate the main circuit board from the remainder of Zoomer Dino Boomer so that it can be replaced without damage to the electrical system.

  1. jOEIBwoLGRHKGwy5

    • Power off Zoomer Dino Boomer before disassembly.

    • Remove the eight 9.3mm Phillips #1 screws.

  2. tTVUEIBD4thjeUGn
    tTVUEIBD4thjeUGn
    peNTyYHHaWXTRgAB

    • Turn dinosaur over and hold upright.

    • Use the spudger to pry apart the back cover from the remainder of the Zoomer Dino Boomer.

    • Be gentle while removing the back cover. The back cover of the Zoomer Dino Boomer is still connected to the electronic system by a wire.

  3. SBHPrxGkhfYtMOot
    SBHPrxGkhfYtMOot
    rGXewVNCmShhWq6W
    Qd5iF5kiBQQmEa2G

    • Disconnect the wire that connects the back cover of the dino to the main circuit board by carefully pulling on the orange wire connector with tweezers.

    • Remove back cover.

    • If you are having difficulty removing the connector from its socket, push in the small tabs on the side of the connector with the tweezers. This step may take some work.

    • Do not damage the wires or circuit board.

  4. SuZoBUrbHddmuxRP
    SuZoBUrbHddmuxRP
    DWwYpOeYF6Y31Qmo
    E6WxIuGDLWDUWsZA

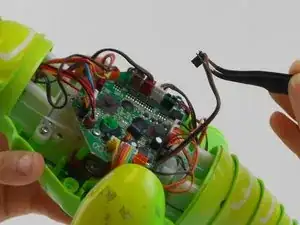

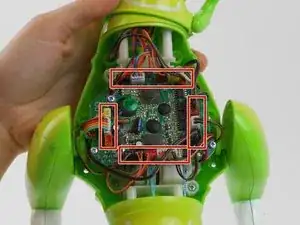

    • Use tweezers to remove all of the colored wire connectors from their sockets on the circuit board.

    Where can i find the circuit board to purchase?

    Scott G -

  5. uPvwsEuSftcxmyas
    uPvwsEuSftcxmyas
    BQyp1XEmS6AYtZLn

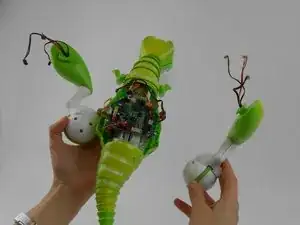

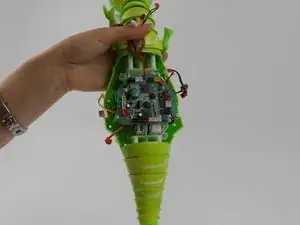

    • Remove legs.

  6. xDWRP14BHkLrP2bE

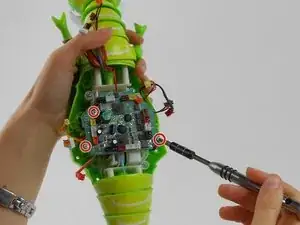

    • Remove the three 7.2 mm Phillips #0 screws connecting the main circuit board to the body of Zoomer Dino Boomer.

  7. BZr5GPPbUBO3GXOQ
    BZr5GPPbUBO3GXOQ
    mSFWqkt5PRaMpuKL
    F1rigGn2yVoRo1YE

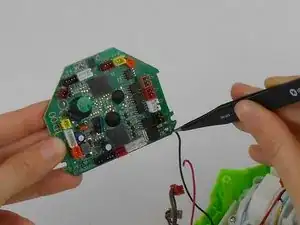

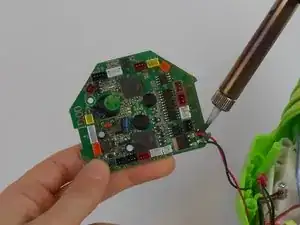

    • Use soldering iron and tweezers to disconnect main circuit board from the black and red wires.

    • Check out iFixit's soldering techniques guide to learn more about soldering and desoldering connections.

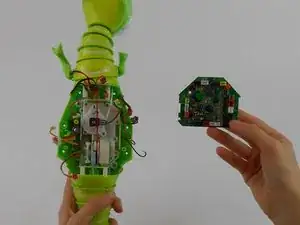

    • Remove main circuit board from Zoomer Dino Boomer

    The problem is buying mainboard, Could you write contact informations of the sellers?

    Mehmet Yener -

    Would like to know what is wrong with the circuit board. Is it a bad capacitor, computer chip or other electronic component? Or is it a cracked circuit board? If it is a cracked circuit board, they can be fixed if you solder a wire across the brake in the printed circuit. I save 1 or 2 bad cables from computer accessories and some USB cables for the small thin wire for some of the small stuff. That repair can be difficult if it is a small packed board. But I've repaired many cracked circuit boards from dropped items by soldering a wire across the brake. If it is a component like a capacitor, they can be de soldered and replaced. I had a capacitor go bad in the ECM of my truck, took 30 minutes to replace it. But it took a whole day to R&R the ECM.

    But these are great instructions to repair this toy!

    EIBBOR2654 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
