Einleitung
Motherboard is the most important component of a Zoomer Jurassic World Indominus Rex. If all else fails, we can always replace the motherboard. Knowing how to solder before attempting this guide is extremely encouraged. Details about soldering technique guide can be found at the last step of this guide.
-
-
Pry apart the back cover of the Jurassic Indominus Rex and the rest of the body using a spudger.
-
-
-

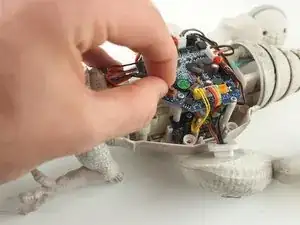

Disconnect the orange wire that connects the motherboard and the back cover.
-
Separate the back cover and the rest of the Zoomer Jurassic World Indominus Rex.
-
-
-

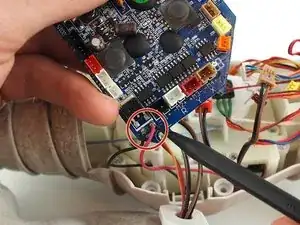

Gently pull each wire out of the connector on the motherboard. Use a set of tweezers, if necessary.
-
-
-

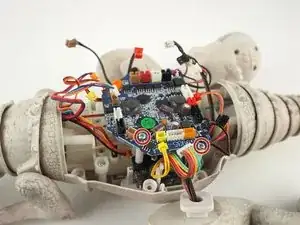

Remove the two (2) #0 7.5mm phillips screws from the left side of the motherboard.
-
Remove the one (1) 7.5mm #0 phillips screw from the right side of the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
