Zyllion ZMA-13-BK Shiatsu Massage Pillow Heater Replacement

Geschrieben von: Yuchen Li
  • Kommentare: 2
Zyllion ZMA-13-BK Shiatsu Massage Pillow Heater Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

Are you going to throw away your expensive massage pillow just because the heater is broken? Here is a simple guide to replace your broken heater so that your massage pillow can work again.

  1. NrQClwfAHS6jKE1P
    NrQClwfAHS6jKE1P
    4DrfuCuSdcgVWVyY

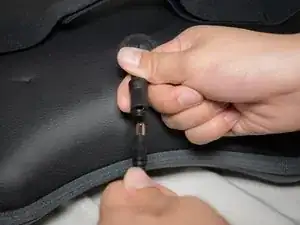

    • Disconnect the power plug located on the back of the massage pillow.

    • Please do this step carefully in order to avoid electric shock.

  2. FcCkHMfngbZowGVV
    FcCkHMfngbZowGVV
    bNOSOArXqpZ2bOMM

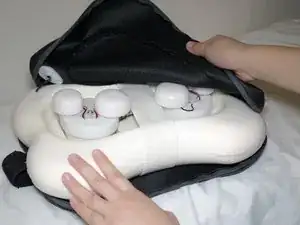

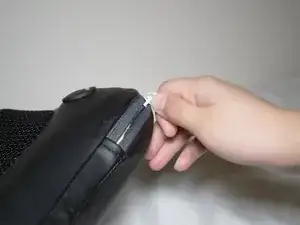

    • Unzip the cover. You can locate the zipper at the back of the massage pillow.

    • Take out the pillow so that you can manage the heater completely.

  3. b6lj34SPlQevaQ5n

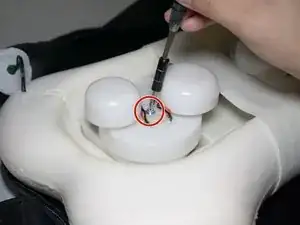

    • Use a Phillips JIS #1 screwdriver to remove the screw at the center of the heater.

    • The screw is 8.0mm.

  4. GtBvFXFZuIOyHLOx
    GtBvFXFZuIOyHLOx
    LSJ2vttgYgEkH5w2

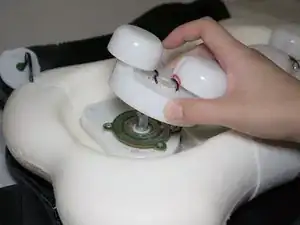

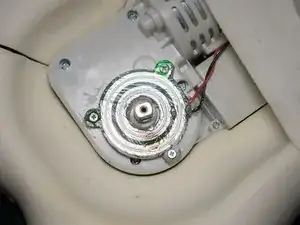

    • Remove the entire heater from the pillow.

    • You can see a green circuit board after removing the heater.

  5. dufSZD6tGP2VNIKO

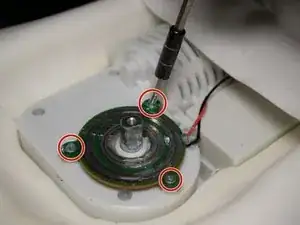

    • Using the Phillips JIS #1 screwdriver, remove the three screws circled in the picture.

    • All three screws are 8.0mm, which are the same size as the previous one. They are interchangeable.

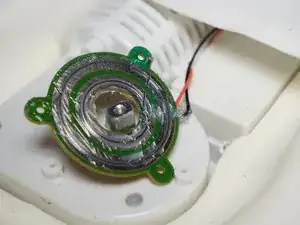

  6. rhXsQZxeZTBnoxjh

    • Now you can take out the circuit board. There will be two wires attached to the circuit board.

    • If you prefer, you can clean the circuit board gently with dry tissues to remove the sticky lubricant.

  7. WOFDl4lDhOcVrJk2

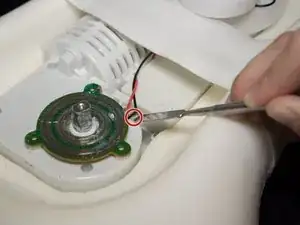

    • Use the pry bar to separate the wire from the white main board.

    • Before prying, check if you removed the power plug from the outlet and the massage pillow.

  8. clBcOErKQgTICtPA

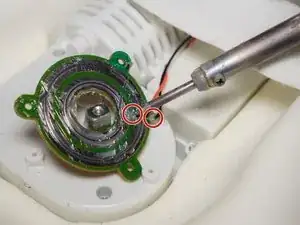

    • Using your soldering station, remove the wires from the circuit board.

    • If you don't know how to solder, you can check out this guide: How To Solder and Desolder Connections

    • Soldering can be dangerous. Be cautious of high heat soldering tools.

    • Now, you can separate the circuit board completely to replace with a new heater.

Abschluss

To reassemble your device, follow these instructions in reverse order.
