A simple fix for any screen issues on a bObsweep Pethair.

Video instructions:

  1. VM3O6bywKselIhie
    VM3O6bywKselIhie
    VWHMj3IRkbyBRaZk
    UaCfuCONcnbSHxZb
    • Flip Bob over and remove the 7 screws around which hold the cover together.

    • Remove the main brush. Unscrew the holder, and lift the brush out. Reminder: Keep this screw separate from the others so you can use it later to reinstall.

    • Depending on your model, there may be only 6 screws installed on bObsweep.

  2. OwwNemtlqeUo5MKq
    OwwNemtlqeUo5MKq
    o6wpFlcIdRXybJSS
    6HKDRXvIJDB1HgwZ
    • There are two screw holes inside the brush compartment: one in the centre, one on the left end. Remove both and keep aside for reassembly.

    • There are five more screws around bObsweep's edges. Two are installed at the top and bottom, and one on the right end of the main brush.

  3. ogobPJAptncl2KMP
    ogobPJAptncl2KMP
    G6pw1eCPSOp242uO
    • Flip bOb back over so you can see the screen. Lift the cover up to reveal bObsweep’s main board.

    • Detach the power inlet from the cover. Grip and slide it out.

  4. dHRYxmrDlqfUwvXd
    dHRYxmrDlqfUwvXd
    t4R3QdImTwyUqEWd
    • Remove three circuit plugs from the motherboard. Pinch the small white tab on the side of each circuit plug and pull straight up to release each from the motherboard.

    • 1. On the bottom left corner: a small connector with red, black and white wires.

    • 2. One thick white wire that attaches on the right side of the previous connector.

    • 3. On the top edge of bOb’s motherboard: a wide multicoloured connector.

    • Place the cover aside and begin your repair.

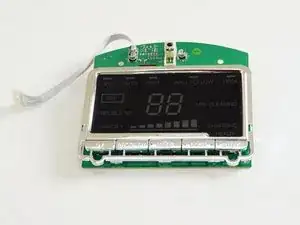

  5. bDeXfgJF5nq5mhKQ
    bDeXfgJF5nq5mhKQ
    S4AyEVgbIXB1KfJb
    qotcDwPV1dgYLKgG

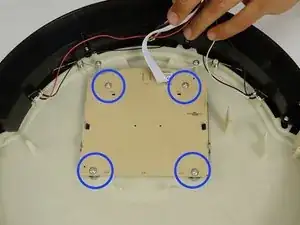

    • Remove the four screws holding the screen in place

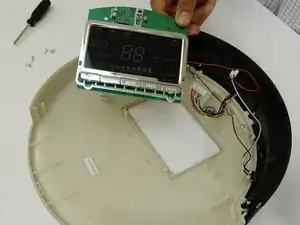

    • Lift the screen up and it will detach from the cover.

  6. IoTw5LEAWiTFTbne
    IoTw5LEAWiTFTbne
    lCsEFMdJpCyYVPwE
    pxG4nWmLcp4JGEQU

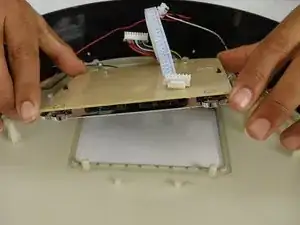

    • The screen and cover buttons will lift out together, leaving an open space for your replacement parts to fit into.

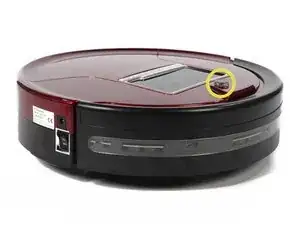

    • If you remove the infrared sensor, replace it in its space on the new cover so the black side will be on bOb’s outside.

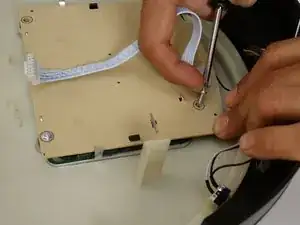

    • Then, install all four screws for the LCD display. To finish off the repair, simply follow: Closing bObsweep's cover after repair

Abschluss

To reassemble your device, follow the guide for closing bObsweep after repair.
