Einleitung

This guide shows the steps in removing the part of Bob which holds the main brush and adjusts up and down for flooring transitions.

  1. VM3O6bywKselIhie
    VM3O6bywKselIhie
    VWHMj3IRkbyBRaZk
    UaCfuCONcnbSHxZb
    • Flip Bob over and remove the 7 screws around which hold the cover together.

    • Remove the main brush. Unscrew the holder, and lift the brush out. Reminder: Keep this screw separate from the others so you can use it later to reinstall.

    • Depending on your model, there may be only 6 screws installed on bObsweep.

  2. OwwNemtlqeUo5MKq
    OwwNemtlqeUo5MKq
    o6wpFlcIdRXybJSS
    6HKDRXvIJDB1HgwZ
    • There are two screw holes inside the brush compartment: one in the centre, one on the left end. Remove both and keep aside for reassembly.

    • There are five more screws around bObsweep's edges. Two are installed at the top and bottom, and one on the right end of the main brush.

  3. ogobPJAptncl2KMP
    ogobPJAptncl2KMP
    G6pw1eCPSOp242uO
    • Flip bOb back over so you can see the screen. Lift the cover up to reveal bObsweep’s main board.

    • Detach the power inlet from the cover. Grip and slide it out.

  4. dHRYxmrDlqfUwvXd
    dHRYxmrDlqfUwvXd
    t4R3QdImTwyUqEWd
    • Remove three circuit plugs from the motherboard. Pinch the small white tab on the side of each circuit plug and pull straight up to release each from the motherboard.

    • 1. On the bottom left corner: a small connector with red, black and white wires.

    • 2. One thick white wire that attaches on the right side of the previous connector.

    • 3. On the top edge of bOb’s motherboard: a wide multicoloured connector.

    • Place the cover aside and begin your repair.

  5. l5Bg1DZdLdlkLb1G
    l5Bg1DZdLdlkLb1G
    xLoJ1UhctQOppxIn
    fxUoCDFXu3XoGQ2B

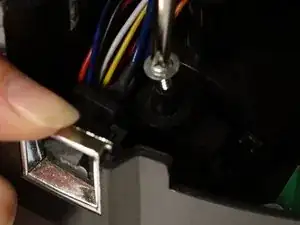

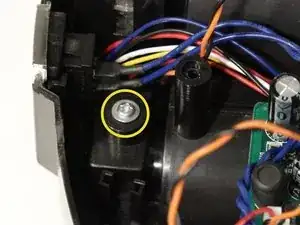

    • The clutch end of the main brush, where the pin sits, is held inside Bob with one screw. It is found beside the power switch.

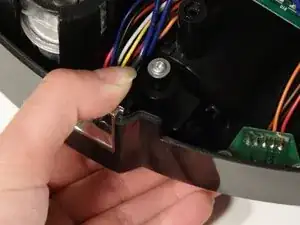

    • Use one hand to push the clutch up, then uninstall the screw and keep it aside for later.

  6. YPShCKa46ImAKKYZ
    YPShCKa46ImAKKYZ
    rLfOrJU5YCqV3vgL

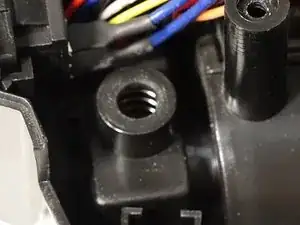

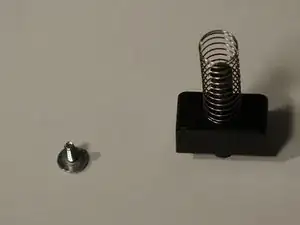

    • Lift bOb up, and two pieces will fall out: the clutch and a spring on top of it.

    • Place your new parts underneath bOb. Hold the spring on top of the clutch piece while putting it back in its space, then reinstall the screw.

  7. 1HVyZ2OsfLt2OvcA
    1HVyZ2OsfLt2OvcA
    G5VdFZXZGrhSh6G6

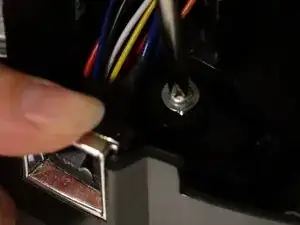

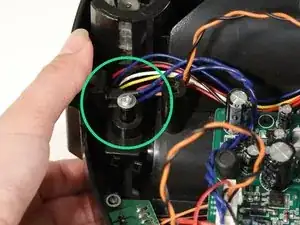

    • Make sure to hold the clutch piece underneath bOb while installing the screw, so you can see the screw post protruding inside bObsweep.

    • When you’re finished, reattach the cover and install the main brush. Follow instructions in the Closing bObsweep's cover after repair

Abschluss

To close bObsweep after this repair, follow instructions in the Closing bObsweep's cover after repair
