iBook G3 14" Logic Board Replacement

Schritt 1

Use a coin to rotate the battery locking screw 90 degrees clockwise.
Lift the battery out of the computer.

Schritt 2

Pull the keyboard release tabs (highlighted in red) toward you and lift up on the keyboard until it pops free.
If the keyboard does not come free, use a small flathead screwdriver to turn the keyboard locking screw 180 degrees in either direction and try again.
Flip the keyboard over, away from the screen, and rest it face-down on the trackpad area.

Schritt 3

If your computer does not have an AirPort card installed, skip to the RAM shield removal step.
Push the wire clasp toward the AirPort card and pull it up to free it from the RAM shield.

Schritt 4

Grasp the clear plastic tab on the AirPort card and pull toward the right.

Schritt 5

Hold the AirPort card in one hand and use your other hand to remove the antenna cable.

Schritt 6

Remove the two Phillips screws that secure the RAM shield.

Schritt 7

Grasp the metal bracket on top of the RAM shield and pull upward to remove the shield.

Schritt 8

Pull the keyboard cable up from the logic board, holding the cable as close to the connector as possible.

Schritt 9

Use a pin to remove the three rubber feet from the lower case.

Schritt 10

Remove the three newly-revealed Phillips screws.

Schritt 11

Use a spudger or small flathead screwdriver to pry up the three metal rings that housed the rubber bumpers.

Schritt 12

Remove the three hex screws using a T8 Torx screwdriver.
The screw in the center is shorter than the other two.

Schritt 13

Remove the two Phillips screws on either side of the battery contacts.

Schritt 14

Breathe deeply. Trying times are ahead, but we promise the lower case does come off.
Push the thin rims of the lower case surrounding the battery compartment in, bending them past the tabs, and then lift up to free that corner of the lower case.

Schritt 15

There is a slot on the wall of the battery compartment that locks the lower case in place.
Use a small flathead screwdriver to pry out the slot's lower rim and pull up on the lower case to free the slot from the tabs holding it.

Schritt 16

Run a spudger along the seam between the lower case and upper case on the front of the computer to free the tabs locking the lower case.
Pull up on the lower case and continue to use the spudger as necessary until you hear three distinct clicks.

Schritt 17

Continue to run the spudger around the front, right corner.
There are two tabs on the port side of the computer, one near the front corner and one near the sound out port.

Schritt 18

Once the front and sides of the lower case are free, turn the computer so that the back is facing you.
Pull the lower case up and toward you until the back tabs pop free.
It may be helpful to jiggle the case up and down.

Schritt 19

Remove the small greasy springs with white plastic caps from either side of the battery contacts.

Schritt 20

All of the screws in the following step have small heads - the screws with larger heads hold the bottom shield on.
Remove the following 9 screws on the bottom of the computer:
Three 3 mm Phillips around the battery compartment.
Three 5 mm Phillips on the left and bottom edges.
Three 14.5 mm Phillips on the top and right edges (you may have to peel back the foil tape to reveal the screw near the security lock slot).

Schritt 21

Turn over the computer and open it.
Pry up the magnet covering a Phillips screw near the middle of the computer.
You may need to peel back the serial number sticker to access the magnet.

Mine didn't have a screw under the magnet.

TekMac -

Zitat von TekMac:

Mine didn't have a screw under the magnet.

I don't mean that a screw was missing, I'm saying that there is no screw or screw hole installed on my 14" in that location. The other steps were dead-on though.

TekMac -

No magnet, screw or screw hole on my upper case either.

randy3833 -

Not all G3 Dual USB iBooks have a screw underneath the magnet, so the magnet need not be removed in these cases and will not hinder the removal of the top.

Brett Fox -

Some iBooks like the 16 VRAM model have the magnet but there is no screw behind it.

Alex -

Check to see if your model has a screw under the magnet first. If you can lift up the area around the magnet there is no screw to deal with.

James Scanlan -

Schritt 22

Remove the following 3 screws on the edges of the keyboard area:
Two 6 mm Phillips underneath the keyboard area.
One 9 mm Phillips above the keyboard area.
On some models, there may also be a screw under the magnet you just removed. If so, remove the screw at this point.

There is a forth screw underneath the magnet: top center of keyboard area.

tkn77 -

Schritt 23

This is a diagram of the ribbon clamp connectors you will disconnect in the next step.
With your fingernails, grasp the locking bar on either side and pull up a small amount (about 1/16" or 2 mm).
After disengaging the locking bar, slide the cable out of the connector.

Schritt 24

Loosen the trackpad connector by pulling the top piece up slightly, freeing the trackpad ribbon.
Slide the orange trackpad ribbon out of the connector.

Schritt 25

Use a straightened paperclip to open the optical drive tray, and pull it out about halfway.

Schritt 26

Don't lift the upper case off the computer yet as there are still two cables left to disconnect.
Lift the upper case from the left side and use your other hand to pull out the right side in order to clear the power receptacle.

Schritt 27

The connectors at the ends of the cables are attached very firmly to the sockets on the logic board. Pulling directly on the cable will either separate the cable from its connector or the socket from the logic board.
Lift the upper case enough to disconnect the blue and white power cable from the logic board.
Using your fingernails or a dental pick, carefully pry the connector from its socket.
Make sure you are pulling only on the connector and not on the socket.

hello...while i was at step 27 i pulled the connector too much and i broken the socket from the logic board!! I used a glue to put it back but now doesen't turn on the computer...any idea??? :)

Fabrizio -

Schritt 28

Lift the upper case off completely and disconnect the red and black speaker cable from the logic board.
Make sure you are pulling only on the connector and not on the socket.

Schritt 29

Peel back the yellow tape and foil shielding.

Schritt 30

Remove the following 10 screws:
One 5 mm Phillips at the upper, right corner of the battery compartment.
Nine 6 mm Phillips scattered around the shield.
Lift the bottom shield off.

Schritt 31

Remove the single Phillips screw on the left side of the fan.
Lift the fan out of its housing and disconnect it from the logic board.

Schritt 32

Remove the following 16 screws:
Five 3 mm Phillips (these have smaller heads than the others).
Three 5 mm Phillips.
Eight 6 mm Phillips.

Schritt 33

If you have already removed the yellow tape, skip this step.
Peel back three strips of yellow tape in the bottom, left corner.
Peel back one strip of foil tape near the audio-out port, one near where the trackpad connects to the logic board, and one near where the screen latch used to be.

Schritt 34

Lift the top shield up from the right side, minding the upper left corner, which may catch on the metal framework.

Schritt 35

Remove the single strip of tape running across the modem.
Remove the single Phillips screw securing the display data cable to the metal framework.

Schritt 36

Move the display data cable in order to access and remove a single Phillips screw from the front left corner of the modem.
Remove the single Phillips screw remaining at the upper, right corner of the modem.

Schritt 37

Lift the modem from the logic board on the right side, being careful not to strain the display data cable.
Disconnect the modem cable from the upper, left corner of the modem.

Schritt 38

Slide the modem out of the computer, being careful to avoid catching the black plastic shielding on the surrounding cables.

Schritt 39

Remove the single Phillips screw to the right of the hard drive connector.

I have the 800 Mhz model and I had a T7 Torx here, instead of a Phillips head.

Matt - 02/07/17

Schritt 40

At the front edge of the hard drive, lift up on the transparent orange tape to disconnect the ribbon cable from the main board.

Schritt 41

Peel back the black tape to free the microphone cable from the hard drive.

Schritt 42

Lift the hard drive out of the computer and turn the hard drive over. Use the transparent orange loop to disconnect the hard drive ribbon cable from the hard drive.
This is a bit tricky. Try rocking the cable gently from side to side while applying even pressure. If you bend the pins, do your best to straighten them, using the hard drive cable as a guide.

Schritt 43

Remove the single Phillips from the white plastic finger of the IO Bezel.

Schritt 44

Slide the IO Bezel away from the computer and off.

Schritt 45

If you have already removed the hard drive, ignore its presence in the following steps. The hard drive does not affect the display removal.
Disconnect the microphone cable from the front, left corner of the logic board.
Peel back the black tape and free the microphone cable from the hard drive.

Schritt 46

Use the black plastic handle to disconnect the display data cable from the logic board.

Schritt 47

If you have already removed the modem, you will only need to remove one of these screws.
Remove the two Phillips screws securing the display data cable to the metal framework.

Schritt 48

Deroute the display data and microphone cables, removing tape as necessary.

Schritt 49

Peel back the yellow tape securing the inverter cable to the metal framework.

Schritt 50

Disconnect the inverter cable from the logic board.
Carefully deroute the inverter cable from beneath the optical drive.

Schritt 51

Deroute the AirPort antenna cable from beneath the optical drive.

Schritt 52

Support the display with your free hand removing the following screws.
Remove the single Phillips screw on the outer edge of either hinge (two screws total).
Tilt the display back to get over two small nubbins, and then slide it directly from the case and away.

Schritt 53

Remove the following 9 screws:
Two 3 mm Phillips from the edge of the logic board, near the battery
Two 4 mm large head Phillips on the port side, from either corner.
One 6 mm Phillips near the sleep light.
Two 7.5 mm Phillips securing the battery connector to the metal framework.
Two 5 mm Phillips from the logic board. These screws may not be present on some models.
There will be two screws remaining that secure the airport card cage to the logic board (can't get them all).

Schritt 54

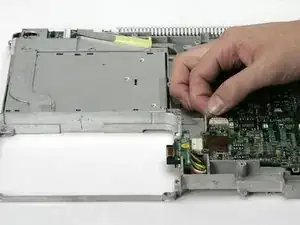

Disconnect the sleep light from the logic board.

Schritt 55

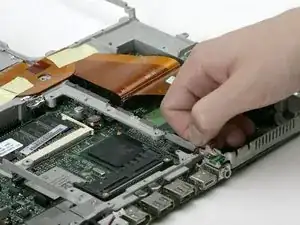

Disconnect the DC cable from the logic board.

Schritt 56

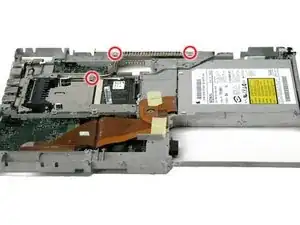

Remove the three Phillips securing the heat sink to the metal framework.

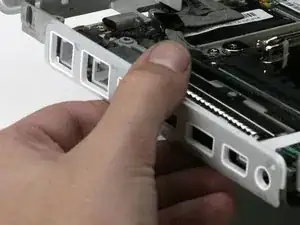

Remove the rear plastic grill.

Schritt 57

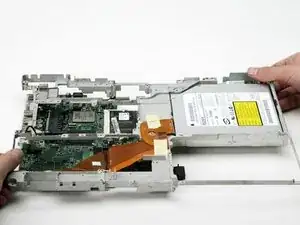

Lift the heat sink out of the computer.
If you need to mount the heat sink back into the laptop, we have a thermal paste guide that makes replacing the thermal compound easy.

Schritt 58

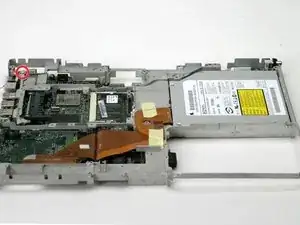

Remove the single Phillips screw that secures the logic board to the metal framework and remove the metal shielding.
Peel back the foil tape securing the logic board to the RJ-11 jack.

Schritt 59

Disconnect the reset button from the logic board. (this part is not present on later models)

Schritt 60

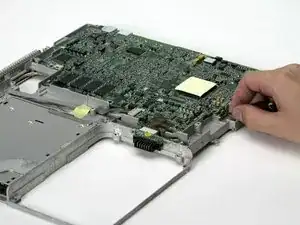

Lift the metal framework up and off the logic board.
Now would be a good time to remove the battery connector and RAM from your (now) old logic board if you're planning to keep them.
