iHip Fold-up Portable Speaker Replacement

Geschrieben von: Lisa
  • Kommentare: 0
iHip Fold-up Portable Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

Use the following steps to replace an individual speaker out of the iHip Fold-up Portable Speaker. The issue usually arises from a speaker with distorted audio.

  1. EICJNBPBZatdYshh

    • Use your fingers to slide the battery case cover off in the direction of the arrows.

  2. PQxWhcLQTDfqShLX
    PQxWhcLQTDfqShLX
    XGh1y6wxoHdGnP5K
    XDDLuXHHCERTjppi

    • Remove the four AAA batteries. Be sure to check your nearest battery recycling point!

    • Use the detailing brush and a paper towel to remove any corrosion left by previous batteries.

  3. mBaDHeTwTxuJfibn
    mBaDHeTwTxuJfibn
    bGxTwQ5LRZ6DtGQ5

    • Unscrew the four outer 1.0 mm screws with a Phillips-Head screwdriver.

    • Screws will be magnetized in position and will require the use of tweezers to be removed.

    • Push down gently on the battery case cover and slide it in the direction the arrows indicate. Remove the batteries.

    • Unscrew the 0.6 mm screw located in the center of the battery case.

    • Keep the 1.0 mm and 0.6 mm screws separate from each other for reassembly.

  4. LOwY5cDdEeJWQhPv
    LOwY5cDdEeJWQhPv
    mVRedmsOKGr1fkWQ

    • Remove the back cover carefully; there are many wires that connect it to the device.

  5. EoVZNPYEILUrFbZd

    • Locate the two individual speakers on either side of the front cover.

  6. 6Yf5Q5ZJWLAQD4jd
    6Yf5Q5ZJWLAQD4jd
    2EEGG1spnFjxInKL
    ghsFRFoVWplhBmjc

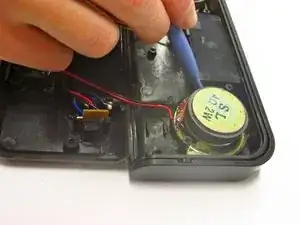

    • Use a plastic opening tool to scrape off the glue around the speakers.

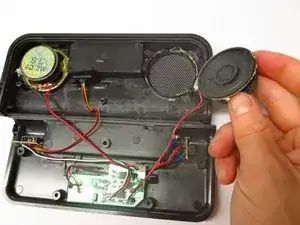

    • Gently pull the speaker up to detach it from the front cover.

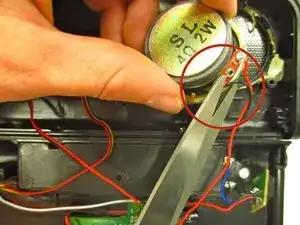

    • Desolder the black and red wires from the speaker unit.

    • Use a hot glue gun to secure the new speaker. Solder the black and red speaker wires back in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
