iHome iM71SC Base LED Replacement

Geschrieben von: Sarah Brown
  • Kommentare: 0
iHome iM71SC Base LED Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will walk you through replacing the LED at the bottom of the speaker.

  1. FCQmJEBtNxFAq1F6

    • Push down and turn the top of the speaker clockwise. This will release the clips and expand the speaker.

  2. MXuPn3D2S45K4AhZ

    • Use a #000 Phillips screwdriver to remove the four 1 mm screws from the bottom half of the speaker.

  3. IAA4SVFNE2jtiC6D

    • Flip the speaker over and use a #000 Phillips screwdriver to remove three 1mm screws . Unscrew these to unfasten the top.

  4. sgik1PVXZvjJWRJH

    • Remove the now unfastened coverings to expose the internals of the speaker.

  5. hQbMtaSVgaOLKCXn

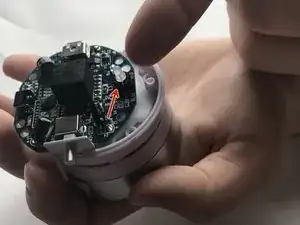

    • Locate the LED on the circuit board.

  6. lUwoIqUWqprjAxRE
    lUwoIqUWqprjAxRE
    jpQIqDmNWb252l6G

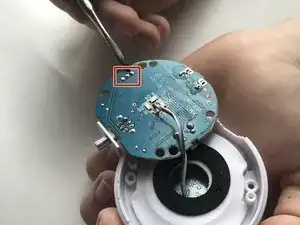

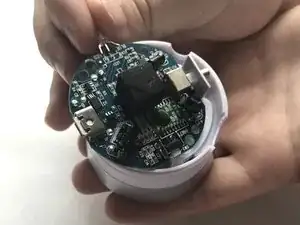

    • Desolder the three connections to the old LED to remove it from the board.

    • Check out this awesome guide for soldering & desoldering instructions.

Abschluss

To reassemble your device, follow Steps 1-4 in reverse order.
