iHome iM71SC Battery Replacement

Geschrieben von: Sarah Brown
  • Kommentare: 0
iHome iM71SC Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

This guide will walk you through replacing the rechargeable battery in the speaker.

  1. FCQmJEBtNxFAq1F6

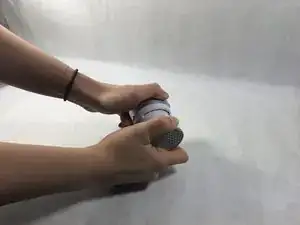

    • Push down and turn the top of the speaker clockwise. This will release the clips and expand the speaker.

  2. MXuPn3D2S45K4AhZ

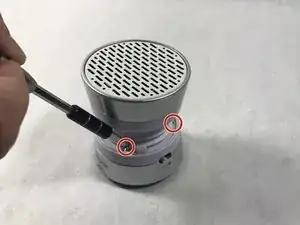

    • Use a #000 Phillips screwdriver to remove the four 1 mm screws from the bottom half of the speaker.

  3. IAA4SVFNE2jtiC6D

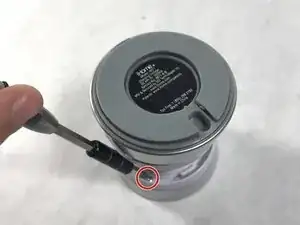

    • Flip the speaker over and use a #000 Phillips screwdriver to remove three 1mm screws . Unscrew these to unfasten the top.

  4. sgik1PVXZvjJWRJH

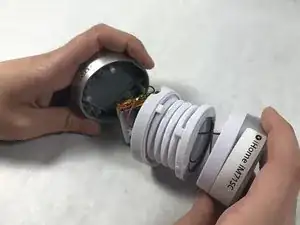

    • Remove the now unfastened coverings to expose the internals of the speaker.

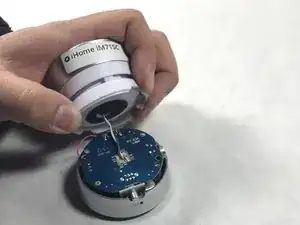

  5. hrfeT1ibQVL6ix3O
    hrfeT1ibQVL6ix3O
    RnX5nUZQ2olPrZWB
    VSbMghg4n4COeLof

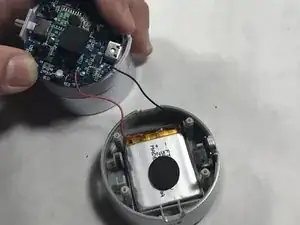

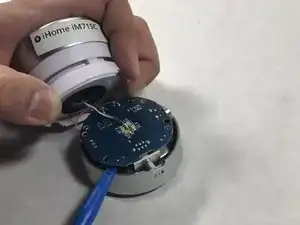

    • Locate the battery underneath the circuit board.

  6. DTwKKOsMYCPE6Apa
    DTwKKOsMYCPE6Apa
    WbcahfRpZRSvSpOf

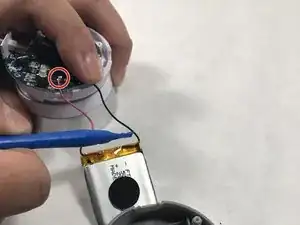

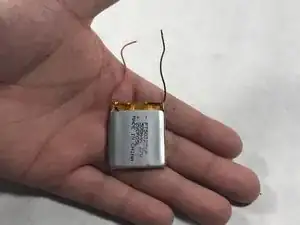

    • Unsolder the batterie's wires from the circuit board to remove the old battery.

    • Check out this awesome guide for soldering & desoldering instructions.

Abschluss

To reassemble your device, follow Steps 1-4 in reverse order.
