iLive IKBC384S FM/AM Antenna Replacement

Geschrieben von: Tracy Walts
  • Kommentare: 0
iLive IKBC384S FM/AM Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 Minuten

Einleitung

This is a guide to help replace the FM/AM antenna for the iLive IKBC384S.

  1. c4lefSEhYlDJKLqa
    c4lefSEhYlDJKLqa
    UD4BpYONGyWvl3DI

    • Make sure you remove all seven 3 mm screws before proceeding to the next step.

  2. RqtCbNZZ4wAAwQRp
    RqtCbNZZ4wAAwQRp
    xSOcHD3CEhAXb5dK

    • Use iOpener or heat gun on all sides except the front.

  3. 5OFyrIJxF3TYVEwK
    5OFyrIJxF3TYVEwK
    sGbGCawsLjwg2NZA

    • Be cautious when taking the top of the device off there may still be some adhesive stuck to device.

    • The top of the device will be very difficult to remove because of the adhesive holding it together.

  4. sWQZBFCMaKFqIbWQ
    sWQZBFCMaKFqIbWQ
    ieiIgrrJalosAPpw

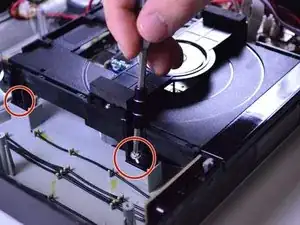

    • Remove all four screws(13.5 mm in length) that are securing the disk drive.

  5. XpjEp4bDGtektG4x
    XpjEp4bDGtektG4x
    5iCrtqVThCEFH1OQ

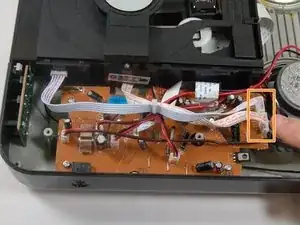

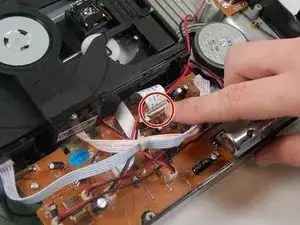

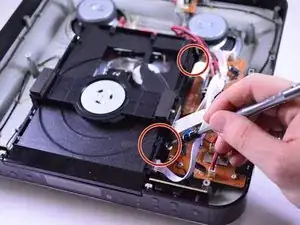

    • Unplug the ribbon cable connected to the motherboard that stems from the disc drive.

    • Also, disconnect the two power connectors from the motherboard.

    • Once you have removed the ribbon cables and two connectors on the motherboard the disk drive can be removed.

  6. FDf4EmvfeONNuI5S

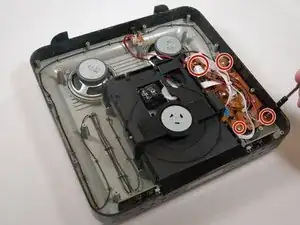

    • After removing the top of the device, locate the screws on the motherboard. Gently unscrew all four of the 3.5mm screws on the motherboard.

  7. Q455FrIJB5cXq6Es
    Q455FrIJB5cXq6Es
    GvRdgJl1uEsQRZLT

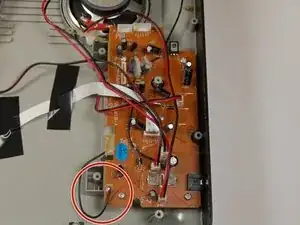

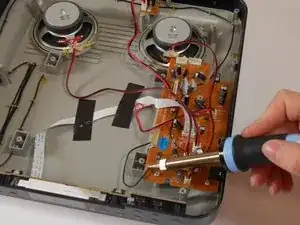

    • Desolder the antenna at the contact point.

    • Check out this awesome guide for soldering and desoldering tips.

  8. JvSVobVrK6iFWoEy
    JvSVobVrK6iFWoEy
    UxMGxgahjyrFBsv5

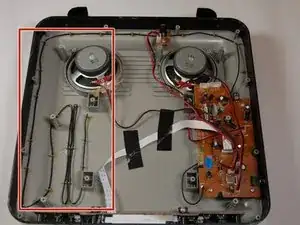

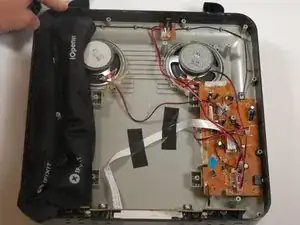

    • Place iOpener on antenna for approximately 5 minutes

  9. tLPFUpSRqaapIkQX

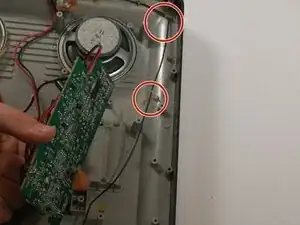

    • Lift up and remove all of the antenna.

    • The antenna will be glued down all the way around the radio

Abschluss

To reassemble your device, follow these instructions in reverse order.
